Mitch Richling: Mandelbrot Count

Author: Mitch Richling
Updated: 2022-12-22

Table of Contents

1. Introduction

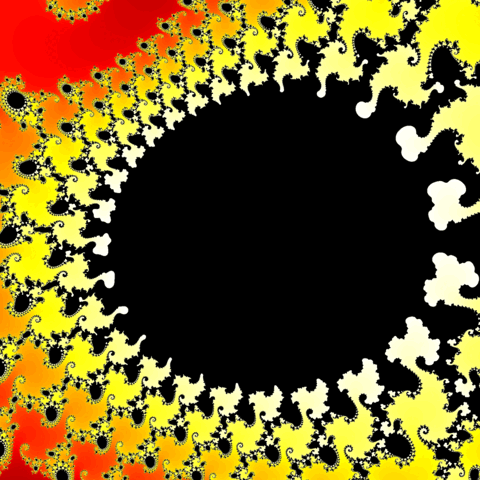

Here we explore how increasing the iteration count "fills in" the space in a Mandelbrot Set render. In this particular case, we ramp the iteration count from \(157\) up to \(461\).

2. Algorithm & Code

#include "ramCanvas.hpp"

typedef mjr::ramCanvas3c8b::colorType ct;

int main(void) {
  std::chrono::time_point<std::chrono::system_clock> startTime = std::chrono::system_clock::now();
  const double MAXZSQ =  4.0;
  const int    IMGSIZ = 7680/4;

  const int    MXITRS = 157;
  const double BALSIZ =  0.00019065;
  const double CNTRX  = -0.745258237857;
  const double CNTRY  =  0.130272017858;
  const int    ITRSTP = 1;
  const int    NUMFRM = 304;
  const int    COLMAG = 1;

  // const double BALSIZ =  6.25e-7;
  // const double CNTRX  =  0.241810410968;
  // const double CNTRY  = -0.510269600591;
  // const int    MXITRS = 750;
  // const int    MXITRE = 2000;
  // const int    ITRSTP = 3;
  // const int    NUMFRM = (MXITRE-MXITRS)/ITRSTP+1;
  // const int    COLMAG = 10;

# pragma omp parallel for schedule(static,1)
  for(int frame=0; frame<NUMFRM; frame++) {
    int curMaxItr = MXITRS + frame * ITRSTP;
    mjr::ramCanvas3c8b theRamCanvas(IMGSIZ, IMGSIZ, CNTRX-BALSIZ, CNTRX+BALSIZ, CNTRY-BALSIZ, CNTRY+BALSIZ);
    std::chrono::time_point<std::chrono::system_clock> frameStartTime = std::chrono::system_clock::now();
    for(int y=0;y<theRamCanvas.getNumPixY();y++) {
      for(int x=0;x<theRamCanvas.getNumPixX();x++) {
        std::complex<double> c = theRamCanvas.int2real(x, y);
        std::complex<double> z(0.0, 0.0);
        int count = 0;
        while((std::norm(z)<MAXZSQ) && (count<=curMaxItr)) {
          z=std::pow(z, 2) + c;
          count++;
        }
        if(count < curMaxItr)
          theRamCanvas.drawPoint(x, y, ct::csCColdeFireRamp::c(static_cast<ct::csFltType>(COLMAG*count)/curMaxItr));
      }
    }
    theRamCanvas.writeTIFFfile("mandelbrot_count_movie_" + mjr::fmtInt(frame, 3, '0') + ".tiff");
    std::chrono::duration<double> frameRunTime = std::chrono::system_clock::now() - frameStartTime;
#   pragma omp critical
    std::cout << "Frame " << frame << " of " << NUMFRM << " Runtime " << frameRunTime.count() << " sec" << std::endl;
  }
  std::chrono::duration<double> runTime = std::chrono::system_clock::now() - startTime;
  std::cout << "Total Runtime " << runTime.count() << " sec" << std::endl;
}

The above program will generate frames for a movie which may be rendered into a movie:

Here are some alternative versions of the above:

There is nothing special about the parameters used in the above program other than we pick an interesting part of the Mandelbrot set and a range of iteration counts that yield something interesting. The commented out parameters are for the center of another spiral, but one with very different qualitative behavior:

Here are some alternative versions of the above:

3. References

Check out the fractals section of my reading list.

All the code used to generate everything on this page may be found on github.
