Class providing off-screen drawing functionality. More...

#include <ramCanvasTpl.hpp>

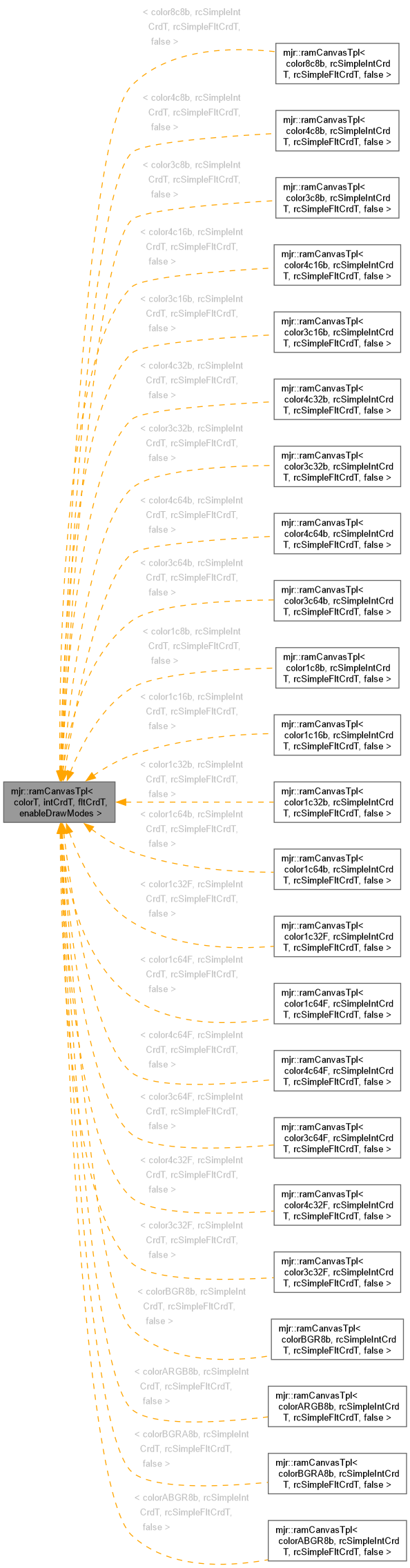

Inheritance diagram for mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >:

[legend]

Enumerations
enum class	realAxisOrientation { INVERTED , NATURAL }
	Enum for real axis orientation. More...
enum class	intAxisOrientation { INVERTED , NATURAL }
	Enum for integer axis orientation. More...
enum class	drawModeType { SET , XOR , ADDCLAMP , AND , OR , DIFFCLAMP , MULTCLAMP }
	Enum for drawing Mode. More...
enum class	interpolationType { BILINEAR , TRUNCATE , NEAREST , AVERAGE4 , AVERAGE9 }
	Enum for drawing Mode. More...

Typedefs related to template parameters
typedef point2d< fltCrdT >	pointFltType
	Real coordinate pair type.
typedef point2d< intCrdT >	pointIntType
	Integer coordinate pair type.
typedef std::vector< pointIntType >	pointIntVecType
	Integer coordinate pair type.
typedef std::complex< fltCrdT >	cplxFltType
	Real coordinate complex type (Provided for convince – not used in ramCanvasTpl)
typedef std::complex< intCrdT >	cplxIntType
	Integer coordinate complex type (Provided for convince – not used in ramCanvasTpl)
typedef intCrdT	coordIntType
	Integer type for coordinates.
typedef fltCrdT	coordFltType
	Real type for coordinates.
typedef colorT	colorType
	Color type for pixels.

std::function typedefs for common calls.
typedef std::function< colorT(fltCrdT, fltCrdT)>	fltCrd2ColType
	std::function type floating point coordinates to a color
typedef std::function< colorT(pointFltType)>	fltPnt2ColType
	std::function type floating point point to a color
typedef std::function< colorT(intCrdT, intCrdT)>	intCrd2ColType
	std::function type int point coordinates to a color
typedef std::function< colorT(pointIntType)>	intPnt2ColType
	std::function type int point point to a color

Typedefs related to colorT
typedef colorT::channelType	colorChanType
	colorT: Channel type
typedef colorT::maskType	colorMaskType
	colorT: Mask type
typedef colorT::channelArithDType	colorChanArithDType
	colorT: Channel arithmatic (Int: -)
typedef colorT::channelArithSPType	colorChanArithSPType
	colorT: Channel arithmatic (Int: +*)
typedef colorT::channelArithSDPType	colorChanArithSDPType
	colorT: Channel arithmatic (Int: +-*)
typedef colorT::channelArithFltType	colorChanArithFltType
	colorT: Channel arithmatic (Flt: +-*)
typedef colorT::channelArithLogType	colorChanArithLogType
	colorT: Channel arithmatic (Int: ^\|&~)
typedef colorT::colorSpaceEnum	colorSpaceEnum
	colorT: Color spaces
typedef colorT::cornerColorEnum	colorCornerEnum
	colorT: RGB Color Corners
typedef colorT::colorArgType	colorArgType
	colorT: Argument passing type
typedef colorT::colorPtrType	colorPtrType
	colorT: Pointer to color
typedef colorT::colorRefType	colorRefType
	colorT: Ref to a color
typedef colorT::colorCRefType	colorCRefType
	colorT: Const Ref to a color
typedef colorT::csIntType	csIntType
	colorT: Color Scheme Integer Type
typedef colorT::csFltType	csFltType
	colorT: Color Scheme Float Type
typedef colorT::csNatType	csNatType
	colorT: Color Scheme Natural Type
typedef colorT::cmfInterpolationEnum	cmfInterpolationEnum
	colorT: Interpolation for color match functions

Iterator Typedefs
typedef colorT *	pixelIterator
	pixel store iterators
typedef colorT *	iterator
	pixel store iterators

Private Enumerations
enum class	endianType { BIG , LITTLE , AUTO }
	Endianness Identifiers. More...

Logical Maximum for intCrdT values
static const intCrdT	intCrdMax = (1ul << ((sizeof(intCrdT)*CHAR_BIT-1)/2)) - 3
	maximum for numPixX, numPixY, & numPix.

intCrd Guard Valus
static const intCrdT	intCrdGrdMax = intCrdMax+1
	Large sentinel value (always off canvas)
static const intCrdT	intCrdGrdMin = -1
	Small sentinel value (always off canvas)

Canvas integer coordinates
intCrdT	numPixX
	Number of x pixels.
intCrdT	numPixY
	Number of y pixels.
intCrdT	numPix
	Number of pixels.

Canvas real coordinates
fltCrdT	minRealX
	x coord of min (real coord)
fltCrdT	maxRealX
	x coord of max (real coord)
fltCrdT	minRealY
	y coord of min (real coord)
fltCrdT	maxRealY
	y coord of max (real coord)

Canvas real/integer coordinates conversion
fltCrdT	pixWidX
	Width of a pixel (real coord)
fltCrdT	pixWidY
	Height of a pixel (real coord)
fltCrdT	canvasWidX
	Width of the canvas (real coord)
fltCrdT	canvasWidY
	height of the canvas (real coord)

Axis orientation
realAxisOrientation	realAxOrientationX
	Orientation of x axis.
realAxisOrientation	realAxOrientationY
	Orientation of y axis.
intAxisOrientation	intAxOrientationX
	Flip horizontally.
intAxisOrientation	intAxOrientationY
	Flip vertically.

Canvas pixel store pointers
colorT *	pixels
	Array to hold the color values.
colorT *	pixelsE
	Point one beyond end of pixels array.

Drawing defaults
colorT	dfltColor
	Default color.
drawModeType	drawMode
	Drawing mode.
intCrdT	dfltX
	x coordinate used by default.
intCrdT	dfltY
	y coordinate used by default.

Filled Triangle Utility Functions

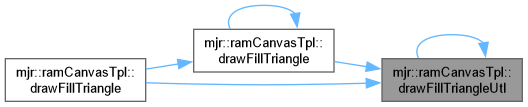

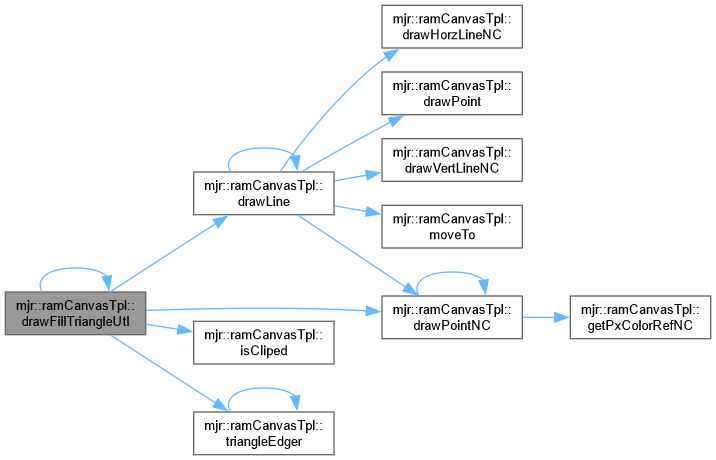

void	drawFillTriangleUtl (intCrdT x1, intCrdT y1, intCrdT x2, intCrdT y2, intCrdT x3, intCrdT y3, colorT c1, colorT c2, colorT c3, bool solid)
	Utliity function behind the drawFillTriangle() functions.

File Writing Utility Methods
void	writeUIntToStream (std::ostream &oStream, endianType endianness, int numBytes, uint64_t data)
	Write an unsigned integer to a stream with given length and endianness.

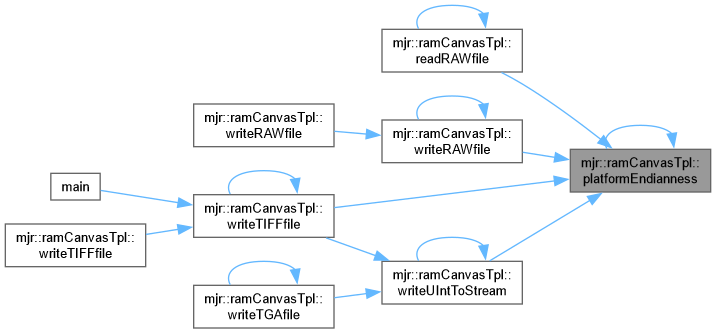

endianType	platformEndianness ()
	Determine the platform's endianness.

Coordinate System Manipulation (i)

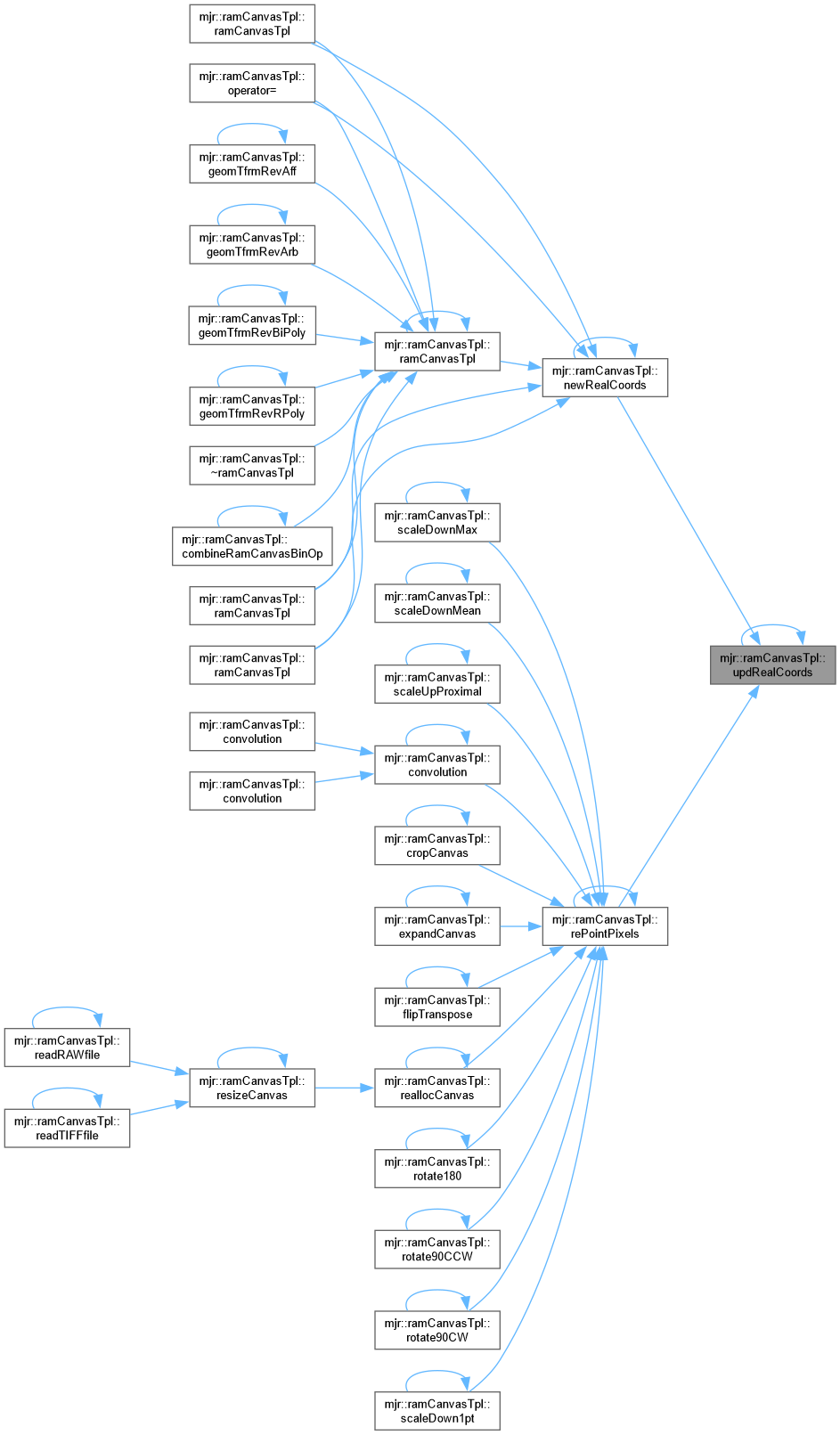

void	updRealCoords ()
	Several internal parameters are maintained within this class that make conversion between real coordinates and integer coordinate very fast.

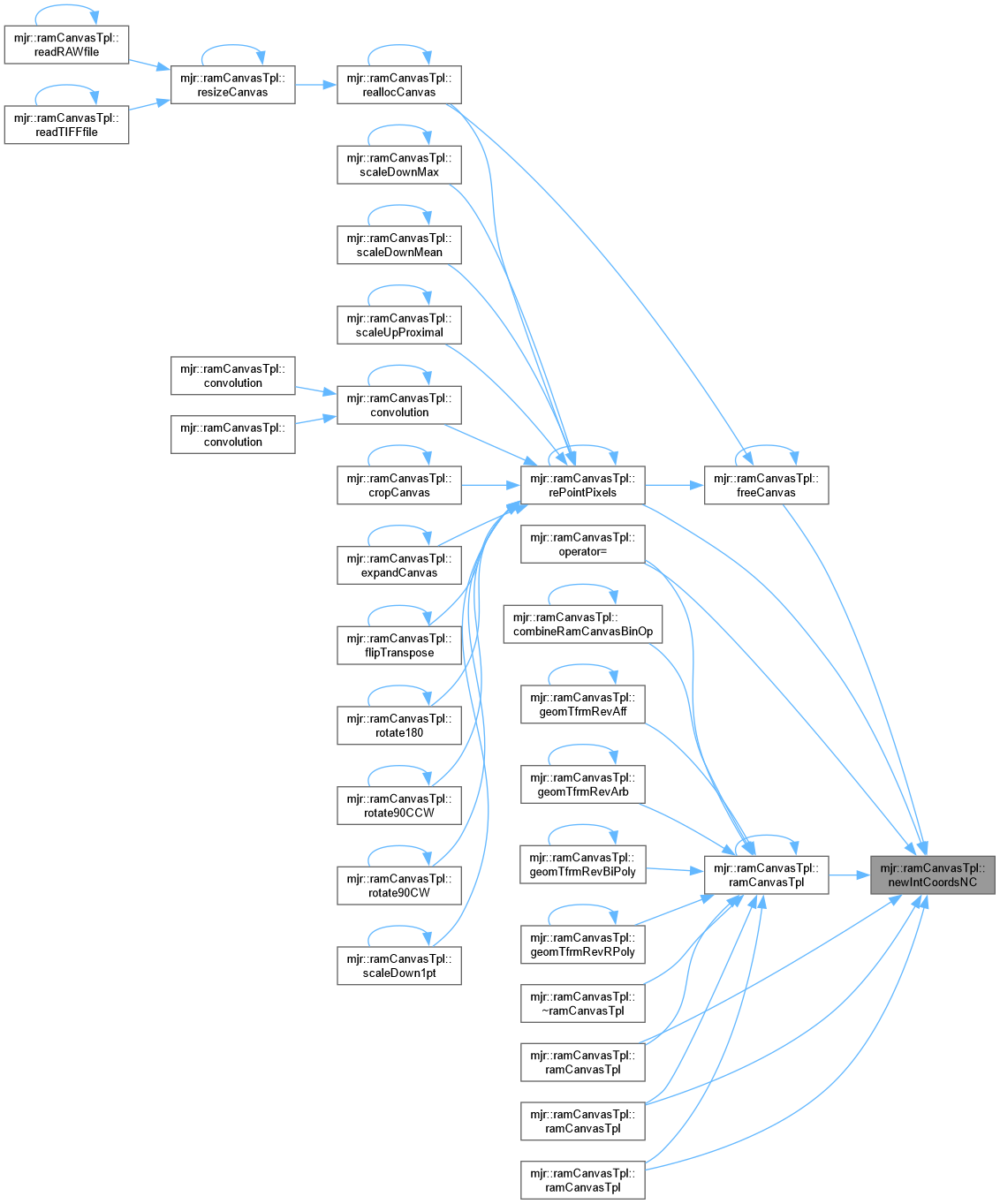

void	newIntCoordsNC (intCrdT numPixX_p, intCrdT numPixY_p)
	Change the logical coordinate sizes.

Plane Manipulation Methods
void	reallocCanvas (intCrdT numPixX_p, intCrdT numPixY_p)
	Destroy the current pixel memory and reallocate a new pixel space of the given size.

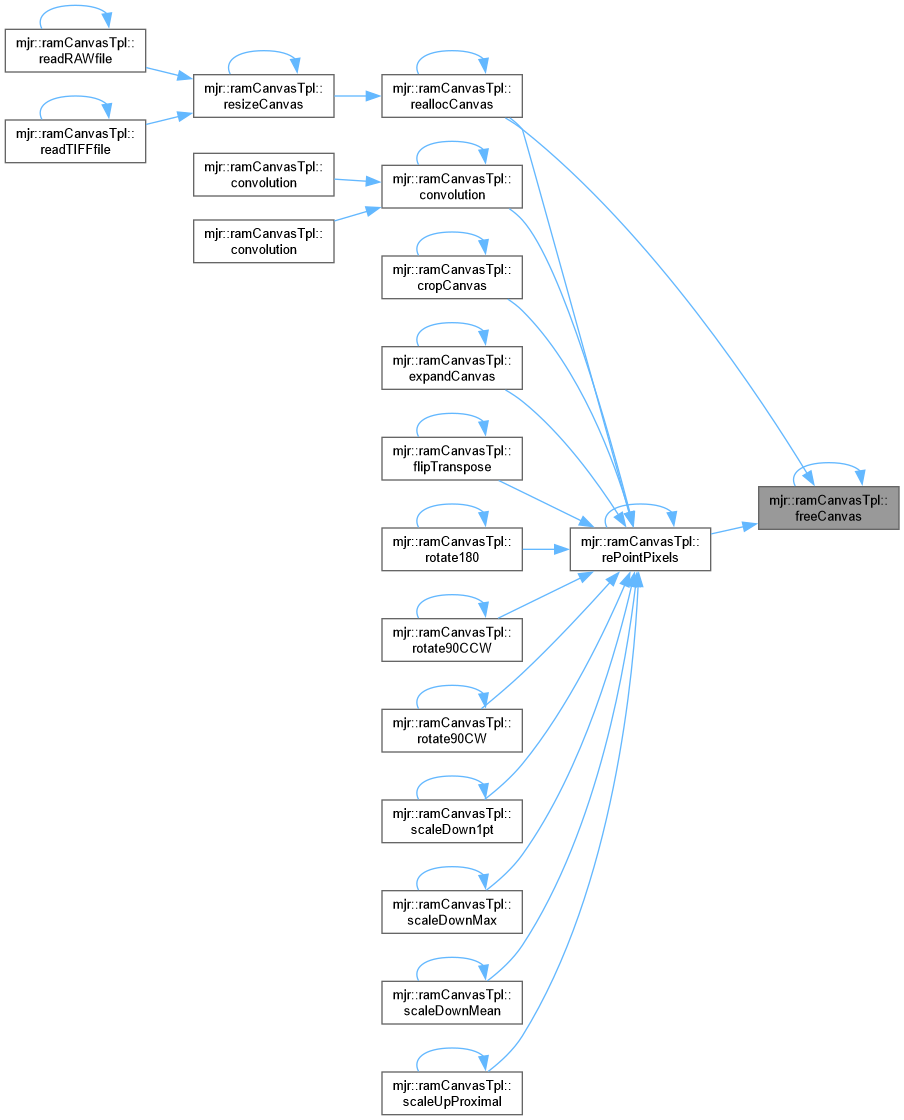

void	freeCanvas ()
	Free the pixel memory (i)

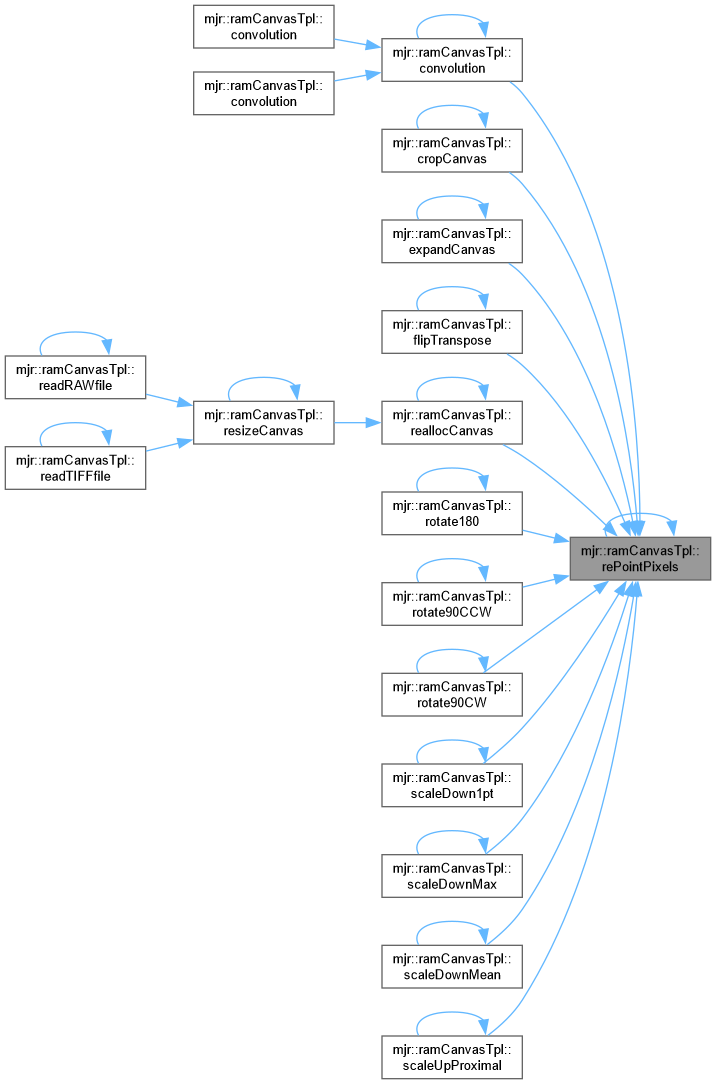

void	rePointPixels (colorT *new_pixels, intCrdT new_numPixX, intCrdT new_numPixY)
	Points the pixels pointer at a new pixel store, and updates coordinates.

Various helper functions

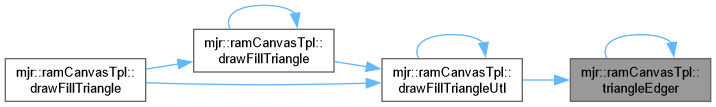

void	triangleEdger (intCrdT x1, intCrdT y1, intCrdT x2, intCrdT y2, intCrdT *pts, bool findMin)
	Used to find the left and right edges of a triangle.

Raster Data Import And Export.
int	exportRasterData (void *&rasterData, intCrdT x1, intCrdT y1, intCrdT x2, intCrdT y2, int redChan, int greenChan, int blueChan, int alphaChan)
	Extract raster data from the image, and pack it into a typical form used by imaging applications.

Constructors & Assignment Operators
	ramCanvasTpl ()
	No arg constructor.
	ramCanvasTpl (const ramCanvasTpl &theCanvas)
	Copy constructor.
	ramCanvasTpl (intCrdT numPixX_p, intCrdT numPixY_p, fltCrdT minRealX_p=-1, fltCrdT maxRealX_p=1, fltCrdT minRealY_p=-1, fltCrdT maxRealY_p=1)
	Most commonly used constructor.
	ramCanvasTpl (ramCanvasTpl &&theCanvas)
	Move constructor.
ramCanvasTpl &	operator= (ramCanvasTpl &&theCanvas)
	Move assignment operator.

Destructor
	~ramCanvasTpl ()
	Destructor deallocates memory for the canvas.

Canvas Compositing
Warning These functions are experimental! Functionality and API are likely to change in the future.
void	adjoinCanvasRight (const ramCanvasTpl &theCanvas)
	Adjoin the canvas to the side of the current canvas.
void	adjoinCanvasLeft (const ramCanvasTpl &theCanvas)
	Adjoin the canvas to the side of the current canvas.
void	adjoinCanvasBottom (const ramCanvasTpl &theCanvas)
	Adjoin the canvas to the side of the current canvas.
void	adjoinCanvasTop (const ramCanvasTpl &theCanvas)
	Adjoin the canvas to the side of the current canvas.
void	insertCanvas (const ramCanvasTpl &theCanvas, intCrdT x1=0, intCrdT y1=0)
	Draw the given canvas at the indicated point.

Canvas resize and crop

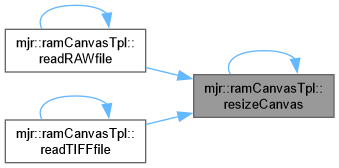

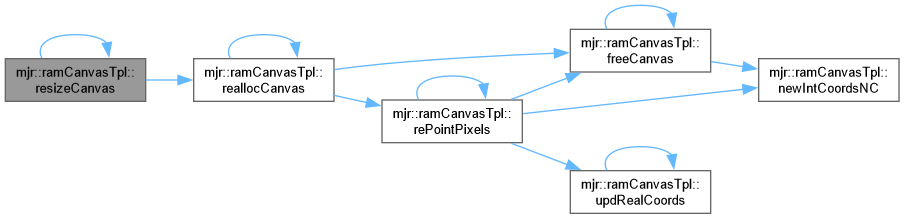

void	resizeCanvas (intCrdT new_numPixX_p, intCrdT new_numPixY_p)
	Resize the canvas to the given size.
void	expandCanvas (intCrdT new_numPixX_p, intCrdT new_numPixY_p, intCrdT x1=0, intCrdT y1=0, colorArgType color=colorT(colorT::minChanVal))
	Expand the current canvas.
void	cropCanvas (intCrdT x1, intCrdT y1, intCrdT x2, intCrdT y2)
	This function will crop the canvas to the given rectangular region.

Coordinate System Manipulation

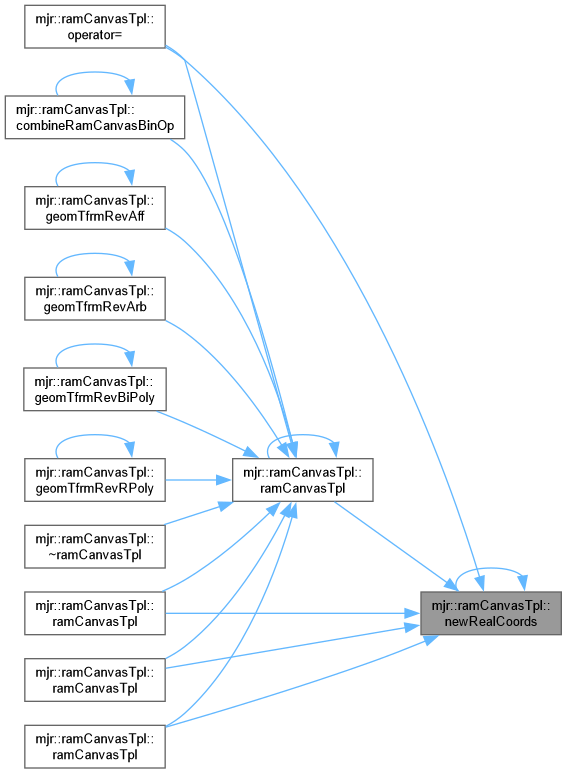

void	newRealCoords (fltCrdT minRealX_p, fltCrdT maxRealX_p, fltCrdT minRealY_p, fltCrdT maxRealY_p)
	Change the real coordinate system associated with a canvas.

Canvas comparison
bool	isSameSize (ramCanvasTpl const &inRC) const
	Return true if given canvas and current canvas are the same size.
bool	isNotSameSize (ramCanvasTpl const &inRC) const
	Return true if given canvas and current canvas are NOT the same size.
bool	isClose (ramCanvasTpl const &inRC, colorChanType epsilon) const
	Return true if corresponding pixels in each canvas are "close" as defined by colorTpl::isClose().
bool	isEqual (ramCanvasTpl const &inRC) const
	Return true if corresponding pixels in each canvas are "equal" as defined by colorTpl::isEqual().

Canvas Rotation and Reflection.

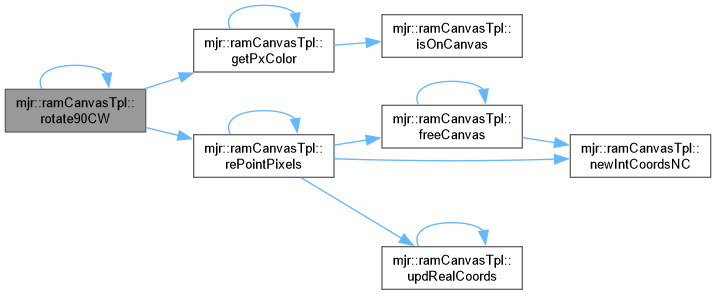

void	rotate90CW ()
	Loss-less 90 degree clockwise rotation of the canvas about the center.
void	rotate90CCW ()
	Loss-less 90 degree counter clockwise rotation of the canvas about the center.
void	rotate180 ()
	Loss-less 180 degree rotation of the canvas about the center.

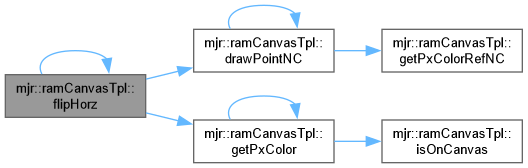

void	flipHorz ()
	Loss-less, horizontal flip of the canvas about the center.
void	flipVert ()
	Loss-less, vertical flip of the canvas about the center.
void	flipTranspose ()
	Loss-less, vertical flip of the canvas about the center.

Canvas Scaling.
void	scaleUpProximal (int xfactor)
	Scale up the image using proximal interpolation.
void	scaleDown1pt (int xfactor)
	Scale down using only the upper left pixel from each block.
void	scaleDownMax (int xfactor)
	Scale down using only the pixel with maximum luminosity in each block.
void	scaleDownMean (int xfactor)
	Scale down using the mean pixel value from each block.

Geometric transformations (Reverse Mapping)
Warning These functions are experimental! Functionality and API are likely to change in the future.
ramCanvasTpl	geomTfrmRevRPoly (std::vector< double > const &RPoly, double rScale, double Xo, double Yo, double oScale, colorArgType errorColor=colorCornerEnum::GREEN, interpolationType interpMethod=interpolationType::BILINEAR)
	Geometric Transform via Radial Polynomial implemented with Reverse Mapping.

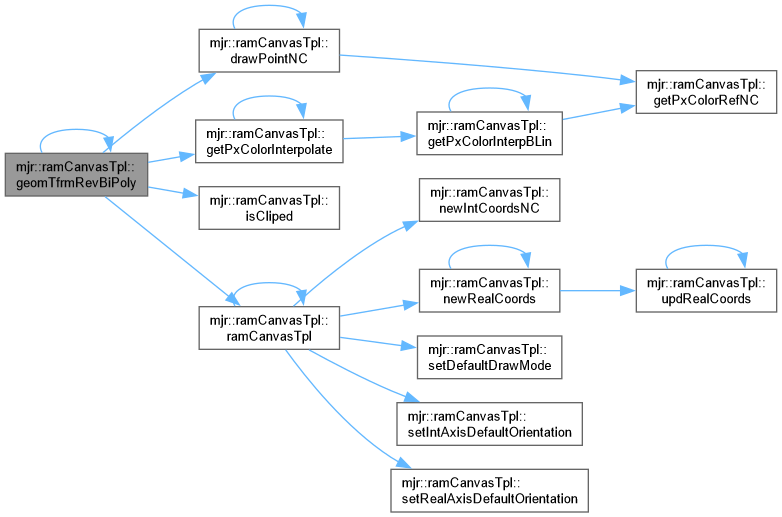

ramCanvasTpl	geomTfrmRevBiPoly (std::vector< double > const &BiPolyX, std::vector< double > const &BiPolyY, double Xo, double Yo, double oScale, colorArgType errorColor=colorCornerEnum::GREEN, interpolationType interpMethod=interpolationType::BILINEAR)
	Geometric Transform via bivariate polynomial implemented with Reverse Mapping.
ramCanvasTpl	geomTfrmRevAff (std::vector< double > const &HAMatrix, double Xo, double Yo, double oScale, colorArgType errorColor=colorCornerEnum::GREEN, interpolationType interpMethod=interpolationType::BILINEAR)
	Homogenious Affine Geometric Transform implemented with Reverse Mapping.
ramCanvasTpl	geomTfrmRevArb (mjr::point2d< double >(*f)(double, double), double Xo, double Yo, double oScale, colorArgType errorColor=colorCornerEnum::GREEN, interpolationType interpMethod=interpolationType::BILINEAR)
	Geometric Transform via provided mapping function implemented with Reverse Mapping.

Apply Convolution

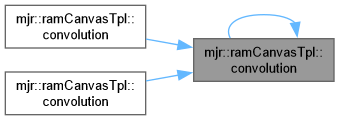

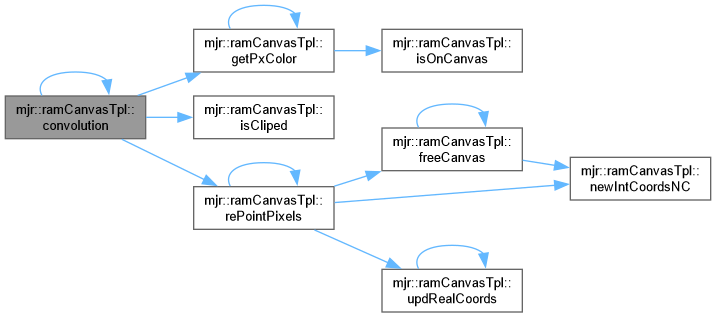

void	convolution (double *kernel, int kWide, int kTall, double divisor)
	Apply a convolution filter.

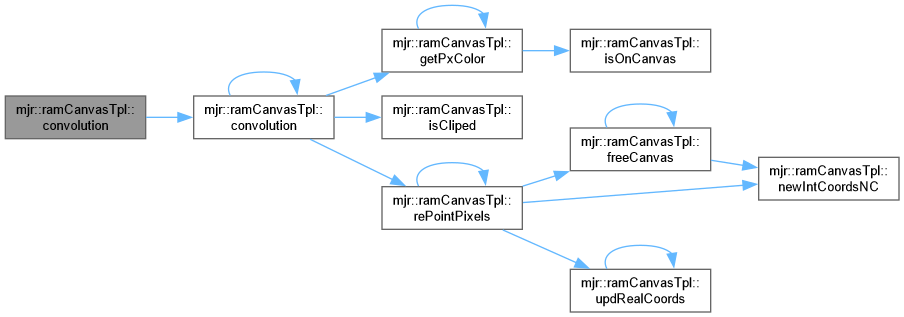

void	convolution (double *kernel, int kSize, double divisor)
void	convolution (double *kernel, int kSize)

Compute Convolution Kernels
void	computeConvolutionMatrixGausian (double *kernel, int kSize, double sd)
	Compute a Gaussian convolution kernel (use with divisor==1.0).
void	computeConvolutionMatrixBox (double *kernel, int kSize)
	Compute a box blur convolution kernel (use with divisor==1.0).

Iterators
colorT *	begin ()
colorT *	end ()

Functional Homogeneous Pixel Transformations (point operators)

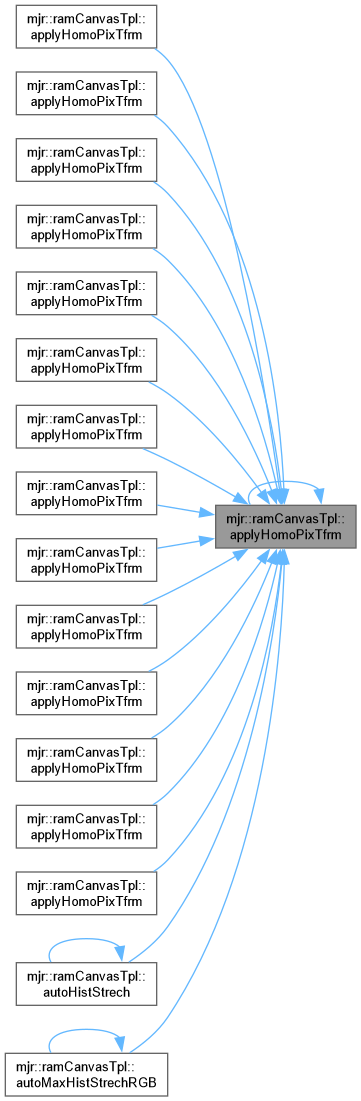

void	applyHomoPixTfrm (colorT &(colorT::*HPT)())
	Apply a homogeneous pixel transformation.
void	applyHomoPixTfrm (colorT &(colorT::*HPT)(double), double)
void	applyHomoPixTfrm (colorT &(colorT::*HPT)(double, double), double, double)
void	applyHomoPixTfrm (colorT &(colorT::*HPT)(double, double, double), double, double, double)
void	applyHomoPixTfrm (colorT &(colorT::*HPT)(double, double, double, double), double, double, double, double)
void	applyHomoPixTfrm (colorT &(colorT::*HPT)(double, double, double, double, double), double, double, double, double, double)
void	applyHomoPixTfrm (colorT &(colorT::*HPT)(double, double, double, double, double, double), double, double, double, double, double, double)
void	applyHomoPixTfrm (colorT &(colorT::*HPT)(int), int)
void	applyHomoPixTfrm (colorT &(colorT::*HPT)(int, int), int, int)
void	applyHomoPixTfrm (colorT &(colorT::*HPT)(int, int, int), int, int, int)
void	applyHomoPixTfrm (colorT &(colorT::*HPT)(int, int, int, int), int, int, int, int)
void	applyHomoPixTfrm (colorT &(colorT::*HPT)(colorT), colorT)
void	applyHomoPixTfrm (colorT &(colorT::*HPT)(colorT, colorT), colorT, colorT)
void	applyHomoPixTfrm (colorT &(colorT::*HPT)(colorT, colorT, colorT), colorT, colorT, colorT)
void	applyHomoPixTfrm (colorT &(colorT::*HPT)(colorT, colorT, colorT, colorT), colorT, colorT, colorT, colorT)
void	applyPixelRefFun (colorT::cr2voidType f)
	Apply a a function to a each pixel via refrence.

Predefined Homogeneous Pixel Transformations (point operators)

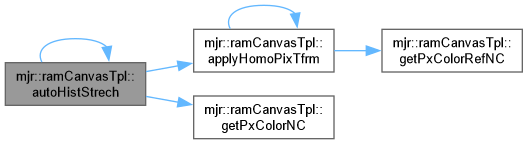

void	autoHistStrech ()
	Computes a linear grey level scale homogeneous pixel transformation.

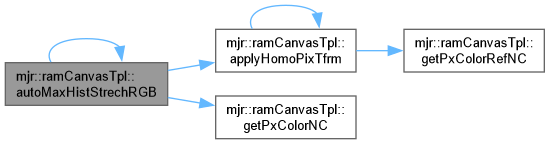

void	autoMaxHistStrechRGB ()
	Computes a, possibly different, linear grey level scale homogeneous pixel transformation on each channel of the image.

Canvas Combination Functions
void	combineRamCanvasBinOp (colorT &(colorT::*HPT)(colorT), const ramCanvasTpl &theCanvas, intCrdT trgX=0, intCrdT trgY=0, intCrdT wide=-1, intCrdT tall=-1, intCrdT srcX=0, intCrdT srcY=0)
	This function takes a ramCanvasTpl and combines it with the current ramCanvasTpl using the provided binary operator.

Statistical Canvas Combination Functions (useful for CCD imaging)
void	combineRamCanvasMean (ramCanvasTpl *theCanvasList, const int N)
	Take a list of ramCanvasTpl objects and combine them with the current ramCanvasTpl using mean.

Canvas Clearing Methods
void	clrCanvasToBlack ()
	Clear the canvas to black.
void	clrCanvasToWhite ()
	Clear the canvas to black.
void	clrCanvasChannelToMin (int chan)
	Set the given channel to the minimum value.
void	clrCanvasChannelToMax (int chan)
	Set the given channel to the maximum value.

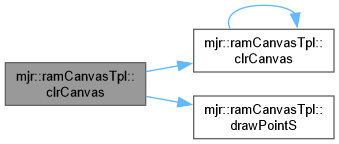

void	clrCanvas ()
	Clear the canvas.
void	clrCanvas (colorArgType color)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Default Point Methods

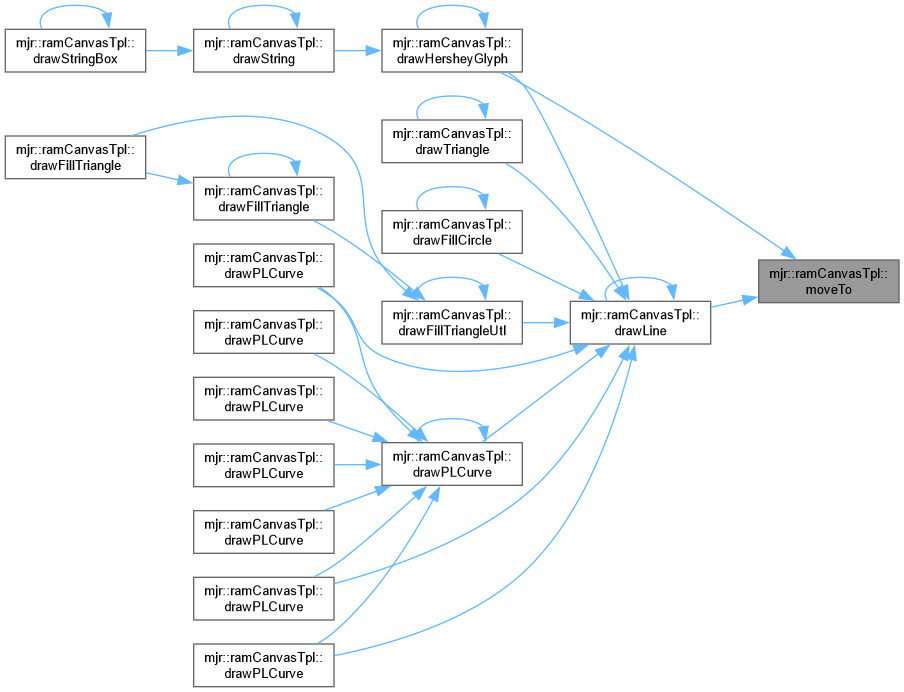

void	moveTo (intCrdT x, intCrdT y)
	Set the current default point to the given coordinates.
void	moveTo (fltCrdT x, fltCrdT y)
void	moveTo (pointIntType thePoint)
void	moveTo (pointFltType thePoint)

Default Color Methods
void	setDfltColor (colorArgType color)
	Set the default color.
void	setDfltColor (std::string cornerColor)
void	setDfltColor (const char *cornerColor)
void	setDfltColor (colorChanType r, colorChanType g, colorChanType b)

Point drawing functions
void	drawPoint (intCrdT x, intCrdT y, colorArgType color)
	Draw a point at the specified coordinates with the specified color.
void	drawPoint ()
void	drawPoint (colorArgType color)
void	drawPoint (intCrdT x, intCrdT y)
void	drawPoint (fltCrdT x, fltCrdT y)
void	drawPoint (fltCrdT x, fltCrdT y, colorArgType color)
void	drawPoint (pointIntType thePoint, colorArgType color)
void	drawPoint (pointIntType thePoint)
void	drawPoint (pointFltType thePoint)
void	drawPoint (pointFltType thePoint, colorArgType color)

Single pixel transformation functions.
These functions provide a simple and direct way to modify a pixel by passing a frefrence to a callable (usually a lambda). This can be used to mimic the functality of drawModeType by simply passing the approprate color transformation member for 2D image histograms or the solutions to differential equations – both applications being very common when working with fractals and dynamical systems. While the same result can be obtained with tformPixel() with a lambda like ~[i](auto& c) { c.tfrmAdd(i); }~, these routines can be significantly faster for some compilers.
void	tformPixel (intCrdT x, intCrdT y, colorType::cr2voidType tform)
	Transform the pixel at the specified coordinates.
void	tformPixel (fltCrdT x, fltCrdT y, colorType::cr2voidType tform)
void	tformPixel (pointIntType thePoint, colorType::cr2voidType tform)
void	tformPixel (pointFltType thePoint, colorType::cr2voidType tform)

Increment a channel value for a pixel.
These functions provide a simple and direct way to increment a single channel for a particular pixel. Typical use cases are to accumulate values for 2D image histograms or the solutions to differential equations – both applications being very common when working with fractals and dynamical systems. While the same result can be obtained with tformPixel() with a lambda like ~[i](auto& c) { c.tfrmAdd(i); }~, these routines can be significantly faster for some compilers.
template<int chanNum = 0> requires ((chanNum >= 0) && (chanNum < colorT::channelCount))
void	incPxChan (intCrdT x, intCrdT y, colorChanType v=1)
	Increment the specified color channel of the pixel at the given coordinates by the specified value.
template<int chanNum = 0> requires ((chanNum >= 0) && (chanNum < colorT::channelCount))
void	incPxChan (fltCrdT x, fltCrdT y, colorChanType v=1)
template<int chanNum = 0> requires ((chanNum >= 0) && (chanNum < colorT::channelCount))
void	incPxChan (pointIntType thePoint, colorChanType v=1)
template<int chanNum = 0> requires ((chanNum >= 0) && (chanNum < colorT::channelCount))
void	incPxChan (pointFltType thePoint, colorChanType v=1)

Line Drawing Methods

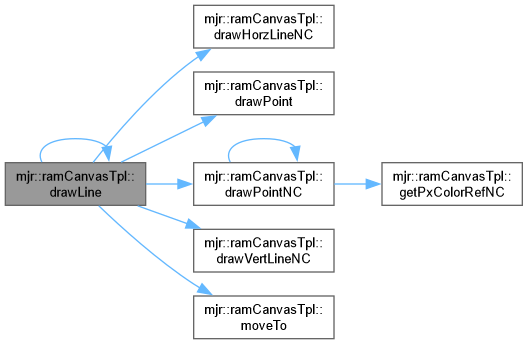

void	drawLine (intCrdT x1, intCrdT y1, intCrdT x2, intCrdT y2, colorArgType color)
	Draw a line.
void	drawLine (pointFltType point1)
void	drawLine (pointFltType point1, colorArgType color)
void	drawLine (pointIntType point1)
void	drawLine (pointIntType point1, colorArgType color)
void	drawLine (pointFltType point1, pointFltType point2)
void	drawLine (pointFltType point1, pointFltType point2, colorArgType color)
void	drawLine (pointIntType point1, pointIntType point2)
void	drawLine (pointIntType point1, pointIntType point2, colorArgType color)
void	drawLine (intCrdT x, intCrdT y)
void	drawLine (fltCrdT x, fltCrdT y)
void	drawLine (intCrdT x, intCrdT y, colorArgType color)
void	drawLine (fltCrdT x, fltCrdT y, colorArgType color)
void	drawLine (intCrdT x1, intCrdT y1, intCrdT x2, intCrdT y2)
void	drawLine (fltCrdT x1, fltCrdT y1, fltCrdT x2, fltCrdT y2)
void	drawLine (fltCrdT x1, fltCrdT y1, fltCrdT x2, fltCrdT y2, colorArgType color)

Unfilled Triangle Drawing Methods
void	drawTriangle (intCrdT x1, intCrdT y1, intCrdT x2, intCrdT y2, intCrdT x3, intCrdT y3, colorArgType color)
	Draw an un-filled triangle.
void	drawTriangle (pointIntType *thePoints, colorArgType color)
void	drawTriangle (pointFltType *thePoints)
void	drawTriangle (pointFltType *thePoints, colorArgType color)
void	drawTriangle (pointIntType *thePoints)
void	drawTriangle (pointIntType point1, pointIntType point2, pointIntType point3)
void	drawTriangle (pointFltType point1, pointFltType point2, pointFltType point3)
void	drawTriangle (pointFltType point1, pointFltType point2, pointFltType point3, colorArgType color)
void	drawTriangle (pointIntType point1, pointIntType point2, pointIntType point3, colorArgType color)
void	drawTriangle (fltCrdT x1, fltCrdT y1, fltCrdT x2, fltCrdT y2, fltCrdT x3, fltCrdT y3)
void	drawTriangle (fltCrdT x1, fltCrdT y1, fltCrdT x2, fltCrdT y2, fltCrdT x3, fltCrdT y3, colorArgType color)
void	drawTriangle (intCrdT x1, intCrdT y1, intCrdT x2, intCrdT y2, intCrdT x3, intCrdT y3)

Filled Triangle Drawing Methods

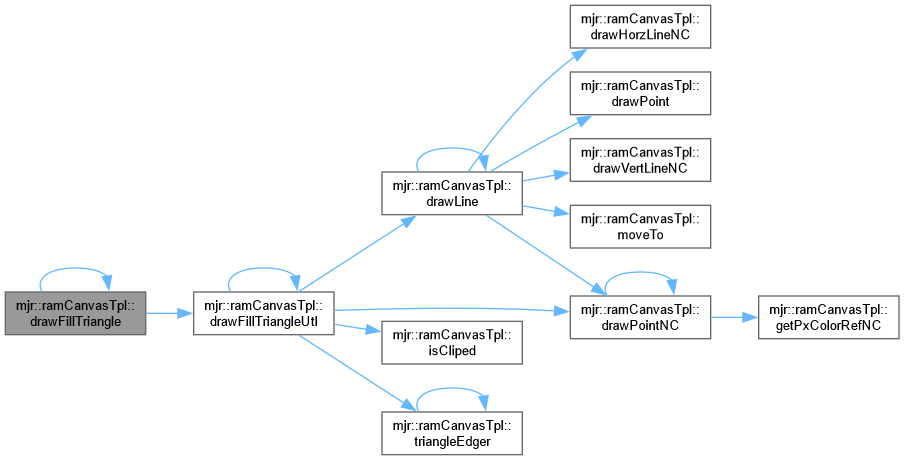

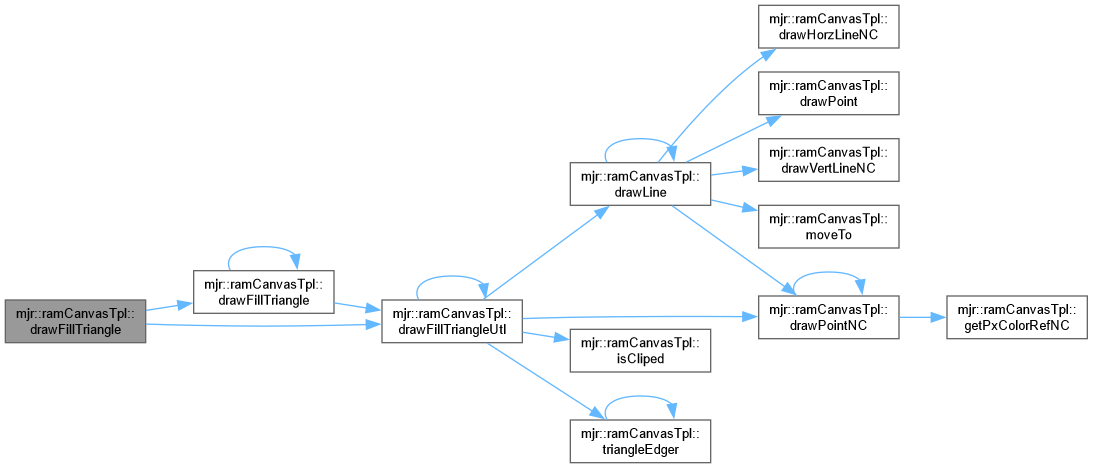

void	drawFillTriangle (intCrdT x1, intCrdT y1, intCrdT x2, intCrdT y2, intCrdT x3, intCrdT y3, colorArgType color)
	Draw a triangle filled with a solid color using a nicely optimized, horizontal scan conversion algorithm.
void	drawFillTriangle (pointIntType *thePoints, colorArgType color)
void	drawFillTriangle (pointFltType *thePoints)
void	drawFillTriangle (pointFltType *thePoints, colorArgType color)
void	drawFillTriangle (pointIntType *thePoints)
void	drawFillTriangle (pointIntType point1, pointIntType point2, pointIntType point3)
void	drawFillTriangle (pointFltType point1, pointFltType point2, pointFltType point3)
void	drawFillTriangle (pointFltType point1, pointFltType point2, pointFltType point3, colorArgType color)
void	drawFillTriangle (pointIntType point1, pointIntType point2, pointIntType point3, colorArgType color)
void	drawFillTriangle (fltCrdT x1, fltCrdT y1, fltCrdT x2, fltCrdT y2, fltCrdT x3, fltCrdT y3)
void	drawFillTriangle (fltCrdT x1, fltCrdT y1, fltCrdT x2, fltCrdT y2, fltCrdT x3, fltCrdT y3, colorArgType color)
void	drawFillTriangle (intCrdT x1, intCrdT y1, intCrdT x2, intCrdT y2, intCrdT x3, intCrdT y3)

Shaded Triangle Drawing Methods
void	drawFillTriangle (intCrdT x1, intCrdT y1, intCrdT x2, intCrdT y2, intCrdT x3, intCrdT y3, colorArgType color1, colorArgType color2, colorArgType color3)
	Draw a filled triangle using barycentric color interpolation.

Unfilled Rectangle Drawing Functions

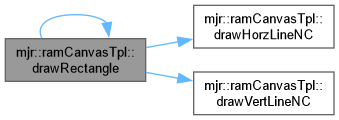

void	drawRectangle (intCrdT x1, intCrdT y1, intCrdT x2, intCrdT y2, colorArgType color)
	Draw an unfilled rectangle with diagonal corners located at (x1, y1) and and (x2, y2).
void	drawRectangle (pointIntType point1, pointIntType point2, colorArgType color)
void	drawRectangle (pointIntType point1, pointIntType point2)
void	drawRectangle (pointFltType point1, pointFltType point2, colorArgType color)
void	drawRectangle (pointFltType point1, pointFltType point2)
void	drawRectangle (pointIntType *thePoints, colorArgType color)
void	drawRectangle (pointFltType *thePoints)
void	drawRectangle (pointFltType *thePoints, colorArgType color)
void	drawRectangle (pointIntType *thePoints)
void	drawRectangle (fltCrdT x1, fltCrdT y1, fltCrdT x2, fltCrdT y2)
void	drawRectangle (fltCrdT x1, fltCrdT y1, fltCrdT x2, fltCrdT y2, colorArgType color)
void	drawRectangle (intCrdT x1, intCrdT y1, intCrdT x2, intCrdT y2)

Filled Rectangle Drawing Methods
void	drawFillRectangle (intCrdT x1, intCrdT y1, intCrdT x2, intCrdT y2, colorArgType color)
	Draw a filled rectangle with diagonal corners located at (x1, y1) and and (x2, y2).
void	drawFillRectangle (pointIntType point1, pointIntType point2, colorArgType color)
void	drawFillRectangle (pointIntType point1, pointIntType point2)
void	drawFillRectangle (pointFltType point1, pointFltType point2, colorArgType color)
void	drawFillRectangle (pointFltType point1, pointFltType point2)
void	drawFillRectangle (pointIntType *thePoints, colorArgType color)
void	drawFillRectangle (pointFltType *thePoints)
void	drawFillRectangle (pointFltType *thePoints, colorArgType color)
void	drawFillRectangle (pointIntType *thePoints)
void	drawFillRectangle (fltCrdT x1, fltCrdT y1, fltCrdT x2, fltCrdT y2)
void	drawFillRectangle (fltCrdT x1, fltCrdT y1, fltCrdT x2, fltCrdT y2, colorArgType color)
void	drawFillRectangle (intCrdT x1, intCrdT y1, intCrdT x2, intCrdT y2)

Unfilled Circle Drawing Methods
void	drawCircle (intCrdT centerX, intCrdT centerY, intCrdT radiusX, colorArgType color)
	Draw an un-filled circle.
void	drawCircle (intCrdT radiusX)
void	drawCircle (fltCrdT radiusX)
void	drawCircle (pointFltType centerPoint, fltCrdT radiusX)
void	drawCircle (pointFltType centerPoint, fltCrdT radiusX, colorArgType color)
void	drawCircle (pointIntType centerPoint, intCrdT radiusX)
void	drawCircle (pointIntType centerPoint, intCrdT radiusX, colorArgType color)
void	drawCircle (fltCrdT centerX, fltCrdT centerY, fltCrdT radiusX)
void	drawCircle (fltCrdT centerX, fltCrdT centerY, fltCrdT radiusX, colorArgType color)
void	drawCircle (intCrdT centerX, intCrdT centerY, intCrdT radiusX)

Filled Circle Drawing Methods

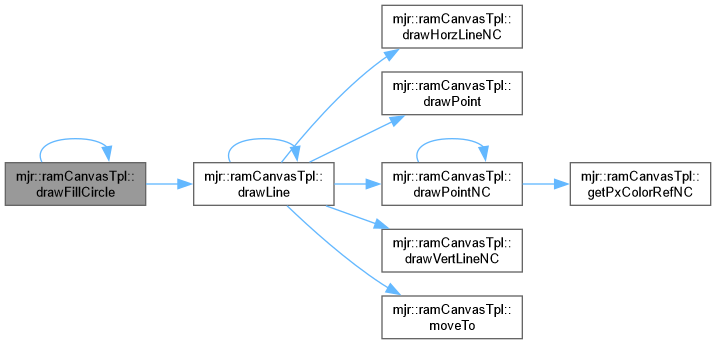

void	drawFillCircle (intCrdT centerX, intCrdT centerY, intCrdT radiusX, colorArgType color)
	Draw an un-filled circle.
void	drawFillCircle (fltCrdT radiusX)
void	drawFillCircle (intCrdT radiusX)
void	drawFillCircle (pointFltType centerPoint, fltCrdT radiusX, colorArgType color)
void	drawFillCircle (pointFltType centerPoint, fltCrdT radiusX)
void	drawFillCircle (pointIntType centerPoint, intCrdT radiusX, colorArgType color)
void	drawFillCircle (pointIntType centerPoint, intCrdT radiusX)
void	drawFillCircle (fltCrdT centerX, fltCrdT centerY, fltCrdT radiusX)
void	drawFillCircle (fltCrdT centerX, fltCrdT centerY, fltCrdT radiusX, colorArgType color)
void	drawFillCircle (intCrdT centerX, intCrdT centerY, intCrdT radiusX)

Piece-Wise Linear Curve Drawing Methods

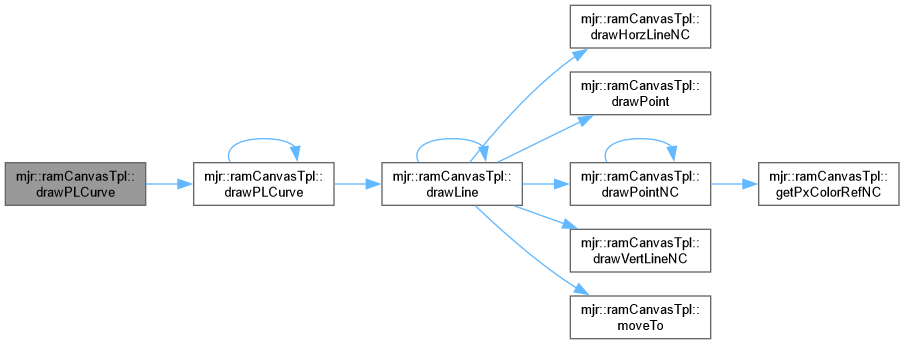

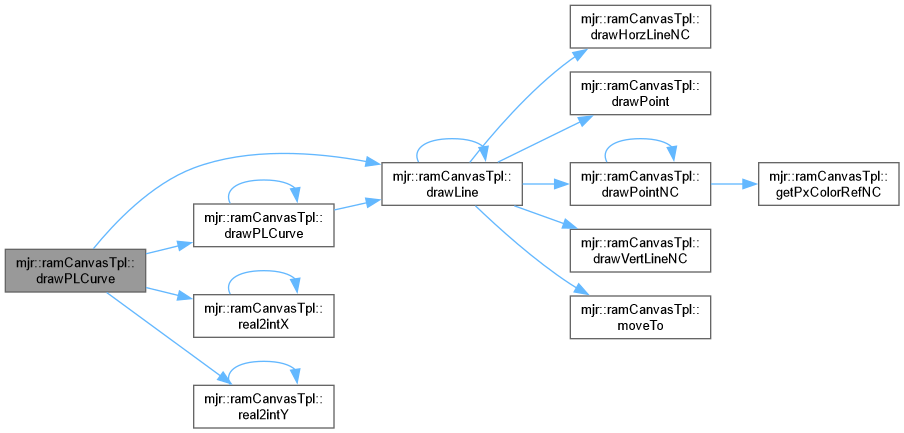

void	drawPLCurve (int numPoints, intCrdT x, intCrdT y, colorArgType color)
	Draw Piece-Wise Linear Curves.
void	drawPLCurve (int numPoints, intCrdT x, intCrdT y)
void	drawPLCurve (int numPoints, fltCrdT x, fltCrdT y, colorArgType color)
void	drawPLCurve (int numPoints, fltCrdT x, fltCrdT y)
void	drawPLCurve (int numPoints, pointIntType *thePoints, colorArgType color)
void	drawPLCurve (int numPoints, pointIntType *thePoints)
void	drawPLCurve (int numPoints, pointFltType *thePoints, colorArgType color)
void	drawPLCurve (int numPoints, pointFltType *thePoints)

Hershey Glyph Rendering Utility Functions

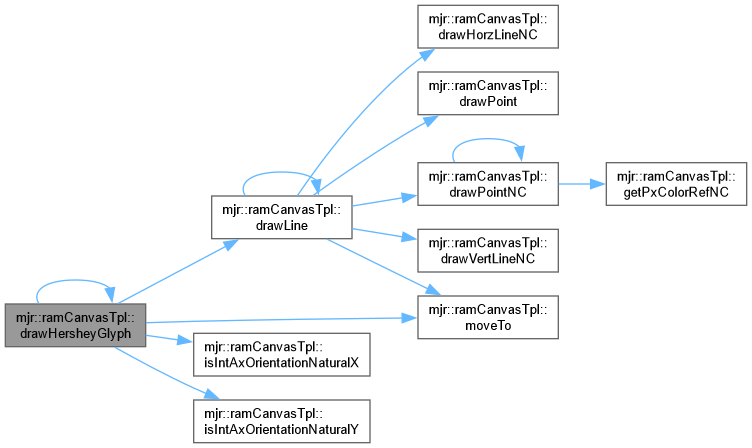

void	drawHersheyGlyph (int glyphNum, intCrdT x, intCrdT y, double magX, double magY, colorArgType aColor)
	Render a glyph from the Hershey character set.
void	drawHersheyGlyph (int glyphNum, fltCrdT x, fltCrdT y, double magX, double magY, colorArgType aColor)

ASCII Character Rendering.
What are font rendering functions doing in a raster graphics library? Sometimes I like to put a label on image.

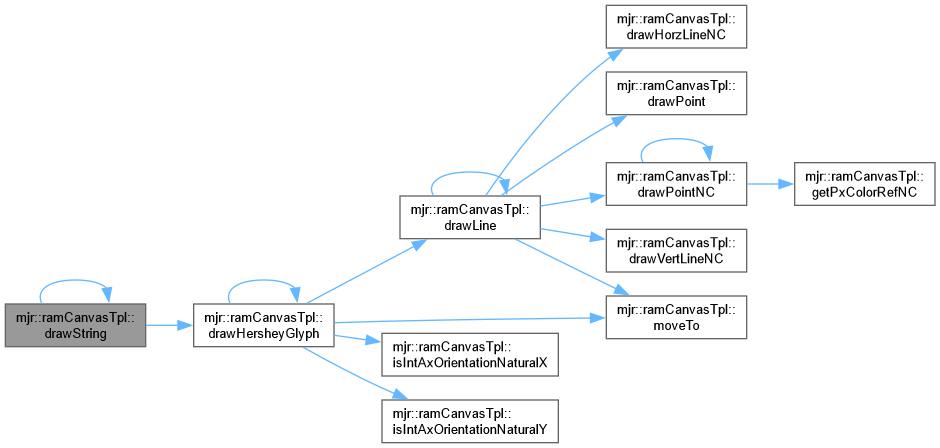

void	drawString (std::string aString, mjr::hershey::font aFont, intCrdT x, intCrdT y, colorArgType aColor, double cex, intCrdT spc)
	Render a string using Hershey ASCII Fonts.
void	drawString (std::string aString, mjr::hershey::font aFont, fltCrdT x, fltCrdT y, colorArgType aColor, double cex, intCrdT spc)

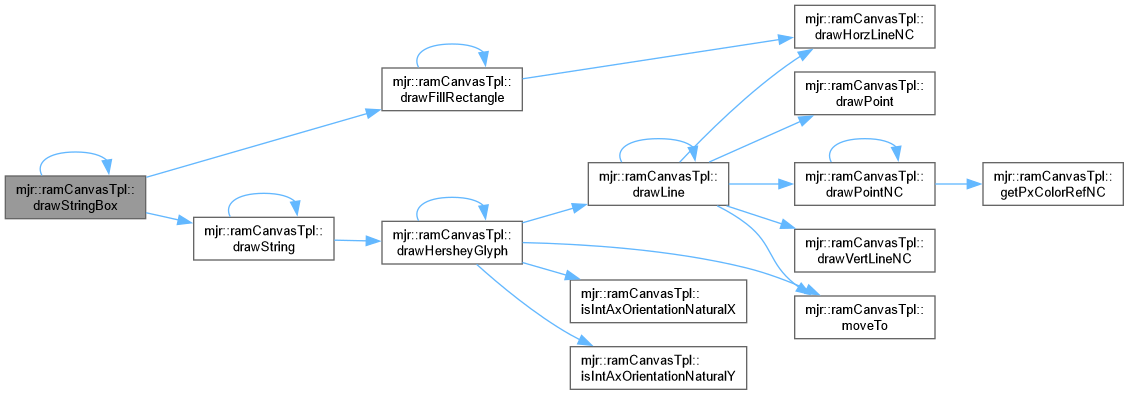

void	drawStringBox (std::string aString, mjr::hershey::font aFont, intCrdT x, intCrdT y, colorArgType stringColor, colorArgType boxColor, double cex, intCrdT spc)
	Renders a filled, bounding box for the given string as rendered via drawString.
void	drawStringBox (std::string aString, mjr::hershey::font aFont, fltCrdT x, fltCrdT y, colorArgType stringColor, colorArgType boxColor, double cex, intCrdT spc)

File Reading and Writing Methods
bool	supportLibTIFF ()
	Is libTIFF supported – that is: will the readTIFFfile() method do anything?

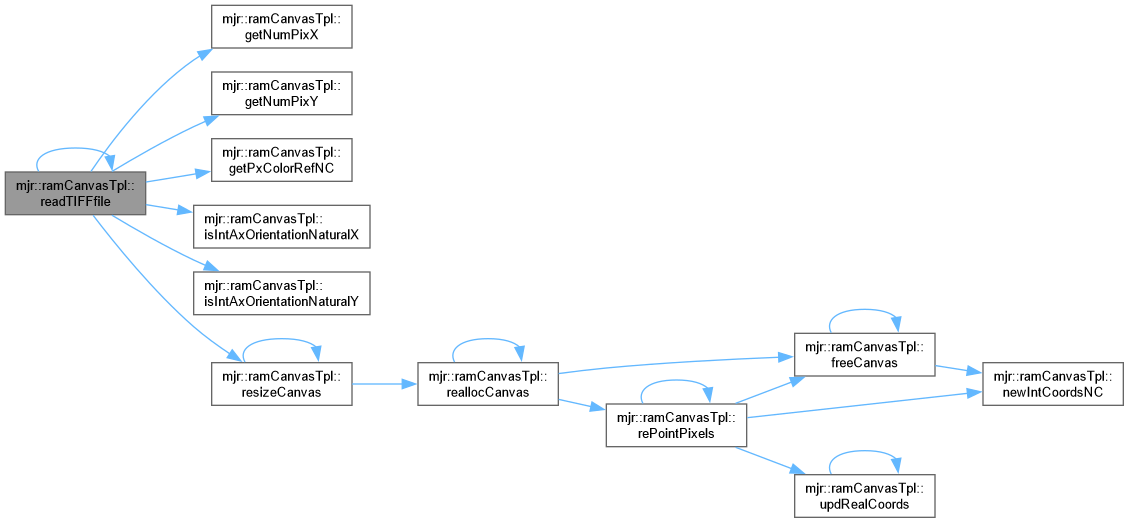

int	readTIFFfile (std::string fileName)
	If the libTIFF library was found at build time, this function will read a TIFF file into current ramCanvas object.
template<class rcConT> requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

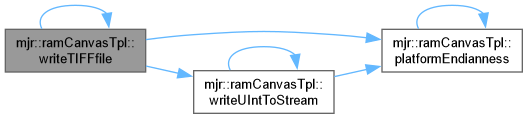

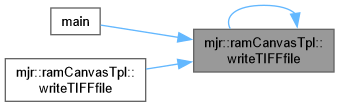

int	writeTIFFfile (std::string fileName, rcConT pxFilter, bool markAlpha=true)
	Write a TIFF format image file.

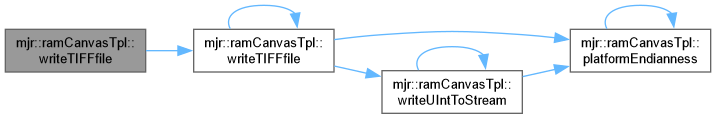

int	writeTIFFfile (std::string fileName, bool markAlpha=true)
	Simplified overload for writeTIFFfile() that only requires the filename.
int	writeTGAfile (std::string fileName)
	Write a 24-bit (8-bit per channel) RGB, TGA format graphics file.

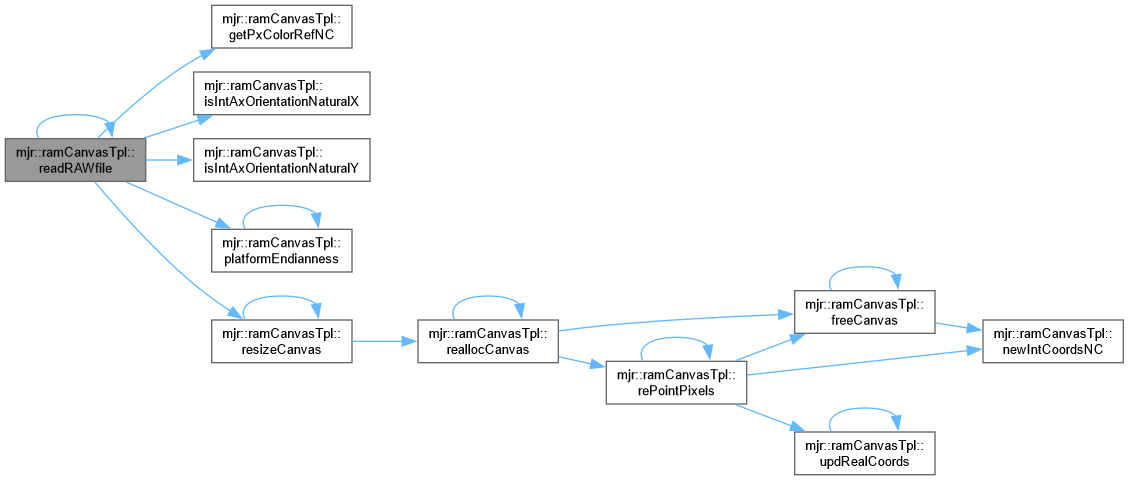

int	readRAWfile (std::string fileName)
	Read RAW file.
template<class rcConT> requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)
int	writeRAWfile (std::string fileName, rcConT pxFilter)
	Write a MJRRAW file.
int	writeRAWfile (std::string fileName)
	Simplified overload for writeRAWfile() that only requires the filename.

Boolean Clip Test Methods

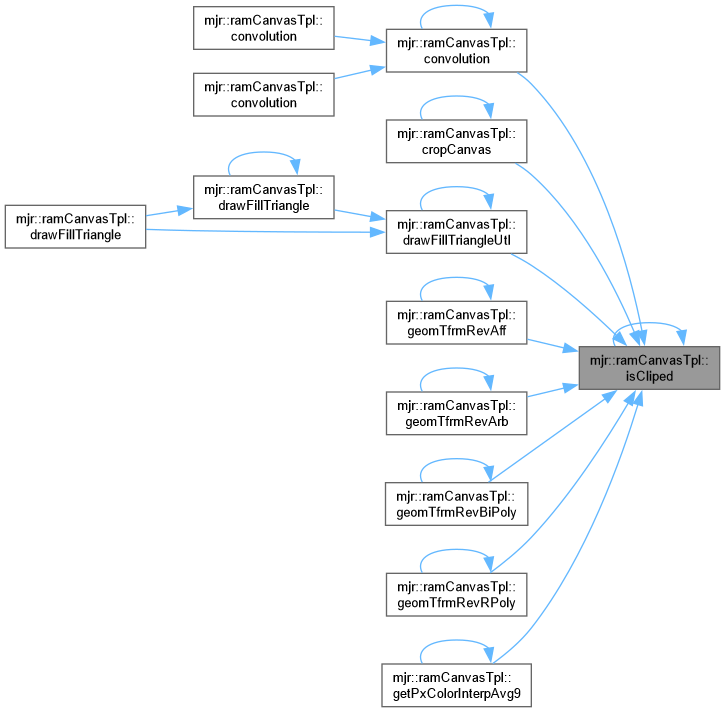

int	isCliped (fltCrdT x, fltCrdT y) const
	Determine if the given point is within the bounds of the ramCanvasTpl.
int	isCliped (intCrdT x, intCrdT y) const

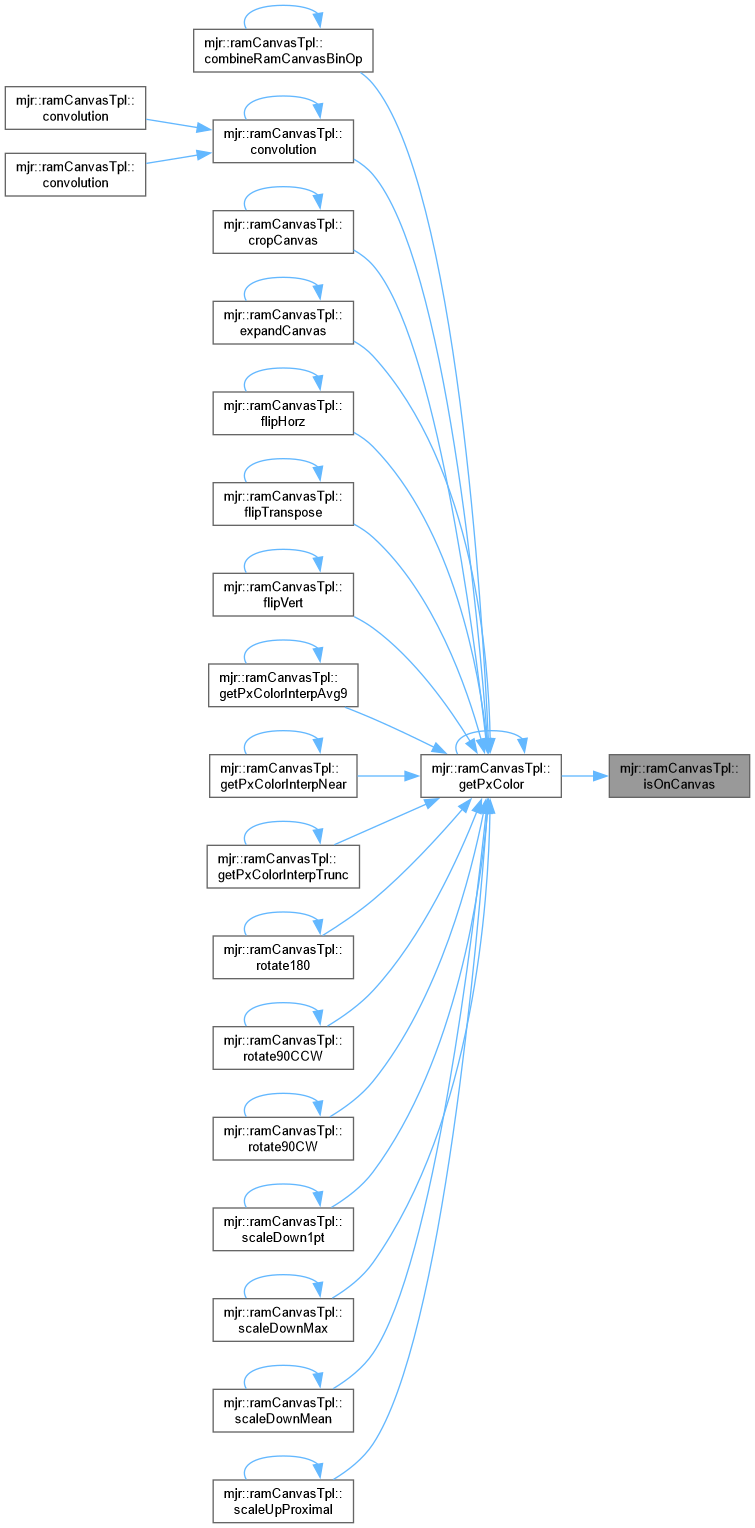

int	isOnCanvas (fltCrdT x, fltCrdT y) const
	Determine if the given point is within the bounds of the ramCanvasTpl.
int	isOnCanvas (intCrdT x, intCrdT y) const

Coordinate Conversions.
intCrdT	real2intX (fltCrdT x) const
	Convert real x coordinate to integral x coordinate.
intCrdT	real2intY (fltCrdT y) const
	Convert real y coordinate to integral y coordinate.

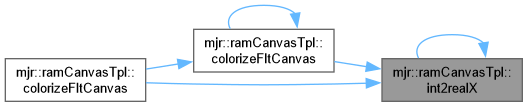

fltCrdT	int2realX (intCrdT x)
	Convert integral x coordinate to real x coordinate.

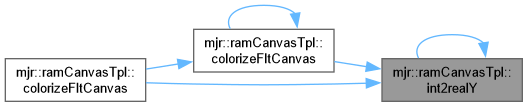

fltCrdT	int2realY (intCrdT y)
	Convert integral y coordinate to real y coordinate.

Coordinate Pair Conversions.
pointFltType	int2real (intCrdT x, intCrdT y)
	Convert real x & y coordinates to integer x & y coordinates.
pointIntType	real2int (intCrdT x, intCrdT y)
	Convert integer x & y coordinates to real x & y coordinates.

Pixel Corner Coordinates.
fltCrdT	int2realSideX (intCrdT x, int side)
	Given integer x coordinate, produce real x coordinate for one of the pixel's edge.
fltCrdT	int2realSideY (intCrdT y, int side)
	Given integer y coordinate, produce real y coordinate for one of the pixel's edge.
pointFltType	int2realCorner (intCrdT x, intCrdT y, int sideX, int sideY)
	Given integer x & y coordinates, produce real x & y coordinates for one of the pixel's corners.
pointFltType	int2realCorner (intCrdT x, intCrdT y, int cornerIndex)
	Given integer x & y coordinates and a corner index, produce real x & y coordinates for one of the pixel's corners.

Coordinate Delta Conversions.
intCrdT	realDelta2intX (fltCrdT x) const
	Convert real distance on the x coordinate axis to an integral distance.
intCrdT	realDelta2intY (fltCrdT y) const
	Convert real distance on the y coordinate axis to an integral distance.
fltCrdT	intDelta2realX (intCrdT x) const
	Convert integral distance on the x coordinate to a real distance.
fltCrdT	intDelta2realY (intCrdT y) const
	Convert integral distance on the y coordinate to a real distance.

Orientation of Real Coordinate Systems
realAxisOrientation	getRealAxOrientationX ()
	Get the real X axis orientation.
void	setRealAxOrientationX (realAxisOrientation orientation)
	Set the real X axis orientation.
realAxisOrientation	getRealAxOrientationY ()
	Get the real Y axis orientation.
void	setRealAxOrientationY (realAxisOrientation orientation)
	Set the real Y axis orientation.
void	setRealAxisDefaultOrientation ()
	Set the real axis orientation to default (NATURAL for both X and Y axes)

Drawing Mode
drawModeType	getDrawMode ()
	Get the current drawing mode.
void	setDrawMode (drawModeType newDrawMode)
	Set the current drawing mode NOOP if enableDrawModes is false.

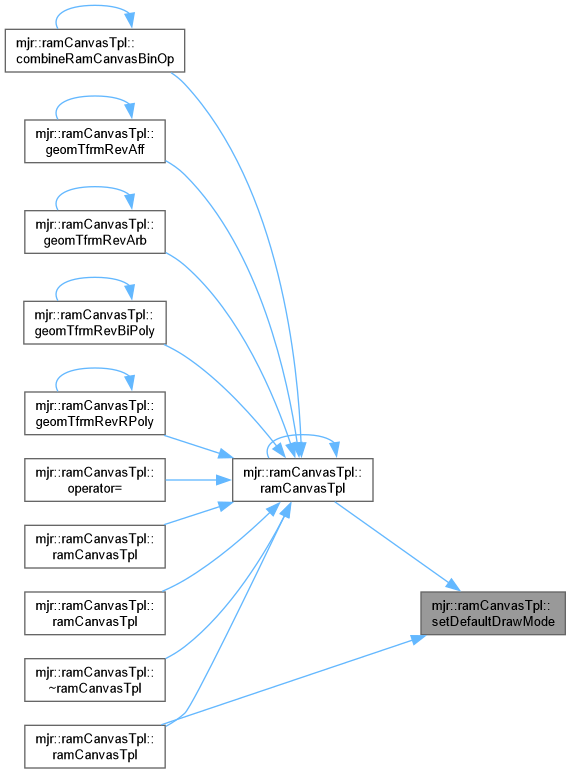

void	setDefaultDrawMode ()
	Set the default draw mode.

Orientation of Integer Coordinate Systems
intAxisOrientation	getIntAxOrientationX ()
	Get the integer X axis orientation.
bool	isIntAxOrientationNaturalX ()
	Is the integer X axis NATURAL?
void	setIntAxOrientationX (intAxisOrientation orientation)
	Set the integer X axis orientation.

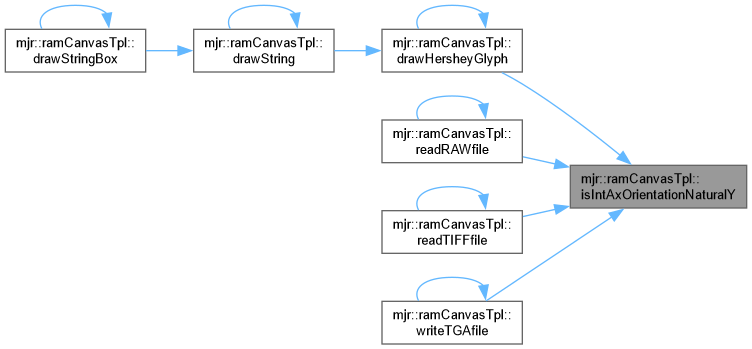

bool	isIntAxOrientationNaturalY ()
	Get the integer Y axis orientation.
intAxisOrientation	getIntAxOrientationY ()
	Is the integer Y axis orientation NATURAL?
void	setIntAxOrientationY (intAxisOrientation orientation)
	Set the integer Y axis orientation.

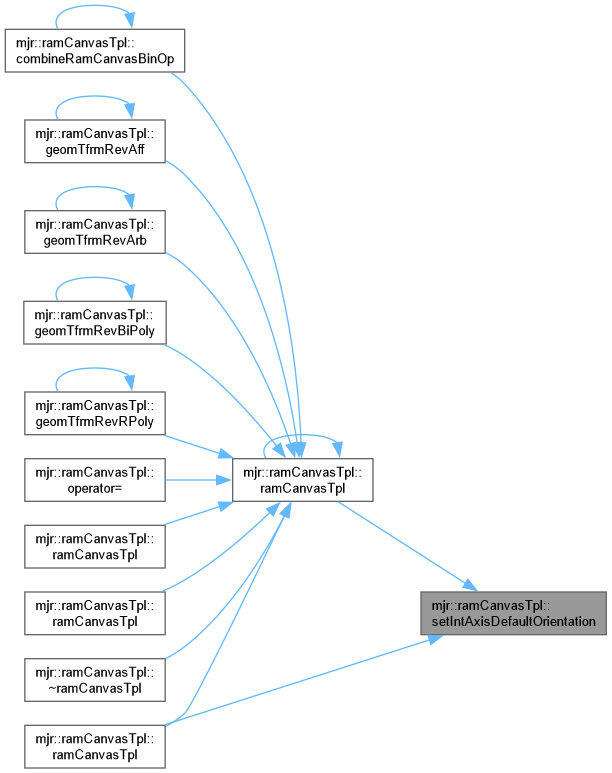

void	setIntAxisDefaultOrientation ()
	Set the integer axis orientation to default (NATURAL for both X and Y axes)

Accessor Methods
intCrdT	getNumPixX () const
intCrdT	getNumPixY () const
colorT *	getPixels ()
	Returns a pointer to the raw pixel store.
colorT *	clonePixels ()
	Return a clone (a copy) of the raw pixel store.

Real Coordinate Accessor Methods
fltCrdT	getMinRealX ()
	x coord of min (real coord)
fltCrdT	getMaxRealX ()
	x coord of max (real coord)
fltCrdT	getMinRealY ()
	y coord of min (real coord)
fltCrdT	getMaxRealY ()
	y coord of max (real coord)
fltCrdT	getPixWidX ()
	Width of a pixel (real coord)
fltCrdT	getPixWidY ()
	Height of a pixel (real coord)
fltCrdT	getCanvasWidX ()
	Width of the display (real coord)
fltCrdT	getCanvasWidY ()
	height of the display(real coord)
fltCrdT	getCanvasWidD ()
	Width of the display (real coord)

Pixel Value Accessor Methods

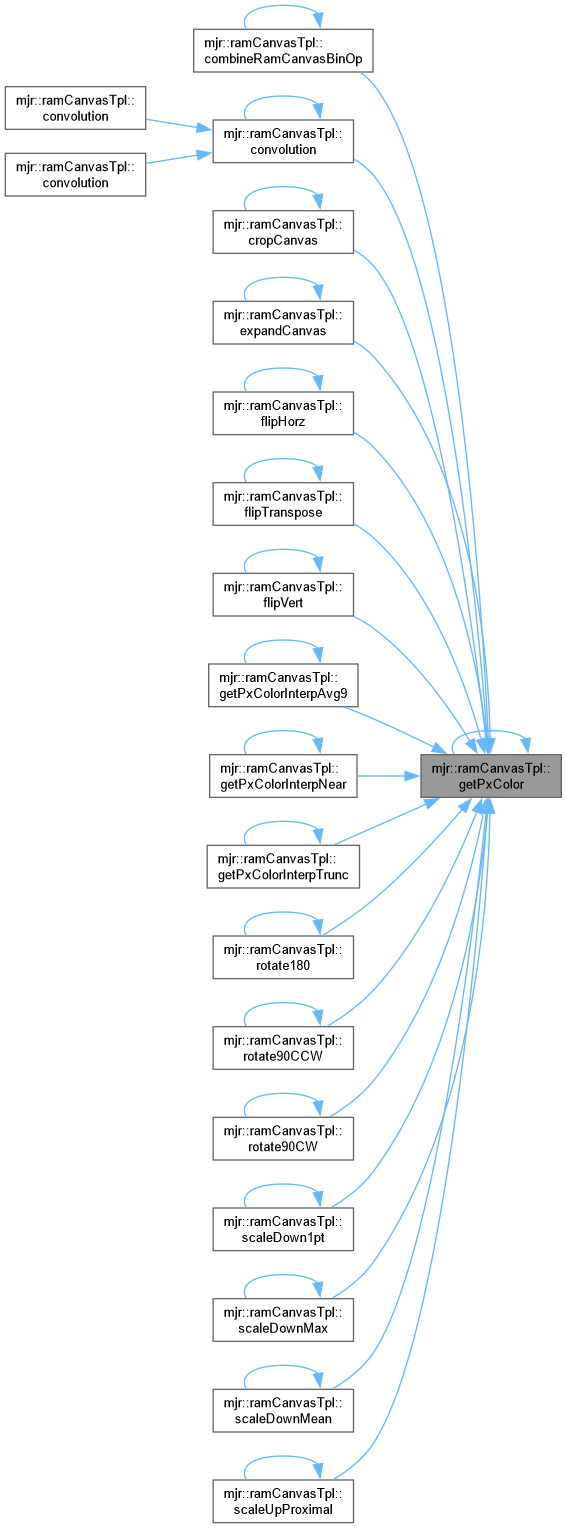

colorT	getPxColor (intCrdT x, intCrdT y) const
	Returns a copy of the color at the given coordinates.
colorT	getPxColor (fltCrdT x, fltCrdT y) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
colorT	getPxColor (pointIntType thePoint) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
colorT	getPxColor (pointFltType thePoint) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
colorT	getPxColorWrap (intCrdT x, intCrdT y) const
	Returns a copy of the color at the given coordinates wrapping x & y if out of range.
colorT	getPxColorWrap (fltCrdT x, fltCrdT y) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
colorT	getPxColorWrap (pointIntType thePoint) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
colorT	getPxColorWrap (pointFltType thePoint) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Pixel Channel Value Accessor Methods.
template<int chanNum> requires ((chanNum >= 0) && (chanNum < colorT::channelCount))
colorT	getPxColorChan (intCrdT x, intCrdT y) const
	Returns a copy of the color channel value at the given coordinates.
template<int chanNum> requires ((chanNum >= 0) && (chanNum < colorT::channelCount))
colorT	getPxColorChan (fltCrdT x, fltCrdT y) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
template<int chanNum> requires ((chanNum >= 0) && (chanNum < colorT::channelCount))
colorT	getPxColorChan (pointIntType thePoint) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
template<int chanNum> requires ((chanNum >= 0) && (chanNum < colorT::channelCount))
colorT	getPxColorChan (pointFltType thePoint) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
template<int chanNum> requires ((chanNum >= 0) && (chanNum < colorT::channelCount))
colorChanType	getPxColorChanWrap (intCrdT x, intCrdT y) const
	Returns a copy of the color channel value at the given coordinates wrapping x & y if out of range.
template<int chanNum> requires ((chanNum >= 0) && (chanNum < colorT::channelCount))
colorChanType	getPxColorChanWrap (fltCrdT x, fltCrdT y) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
template<int chanNum> requires ((chanNum >= 0) && (chanNum < colorT::channelCount))
colorChanType	getPxColorChanWrap (pointIntType thePoint) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
template<int chanNum> requires ((chanNum >= 0) && (chanNum < colorT::channelCount))
colorChanType	getPxColorChanWrap (pointFltType thePoint) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Pixel Value Accessor with Interpolation Methods

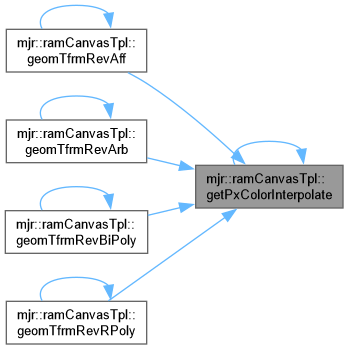

colorT	getPxColorInterpolate (double x, double y, interpolationType interpMethod=interpolationType::BILINEAR)
	Returns the interpolated color value at the the given coordinates using the given interpolation method.
colorT	getPxColorInterpBLin (double x, double y)
	Returns the bilinear interpolated color value at the the given coordinates.
colorT	getPxColorInterpTrunc (double x, double y)
	Returns the truncated interpolated color value at the the given coordinates.
colorT	getPxColorInterpNear (double x, double y)
	Returns the nearest neighbor interpolated color value at the the given coordinates.
colorT	getPxColorInterpAvg4 (double x, double y)
	Returns the average 4 interpolated color value at the the given coordinates.
colorT	getPxColorInterpAvg9 (double x, double y)
	Returns the average 9 interpolated color value at the the given coordinates.

NC stands for No Checks and No Clipping

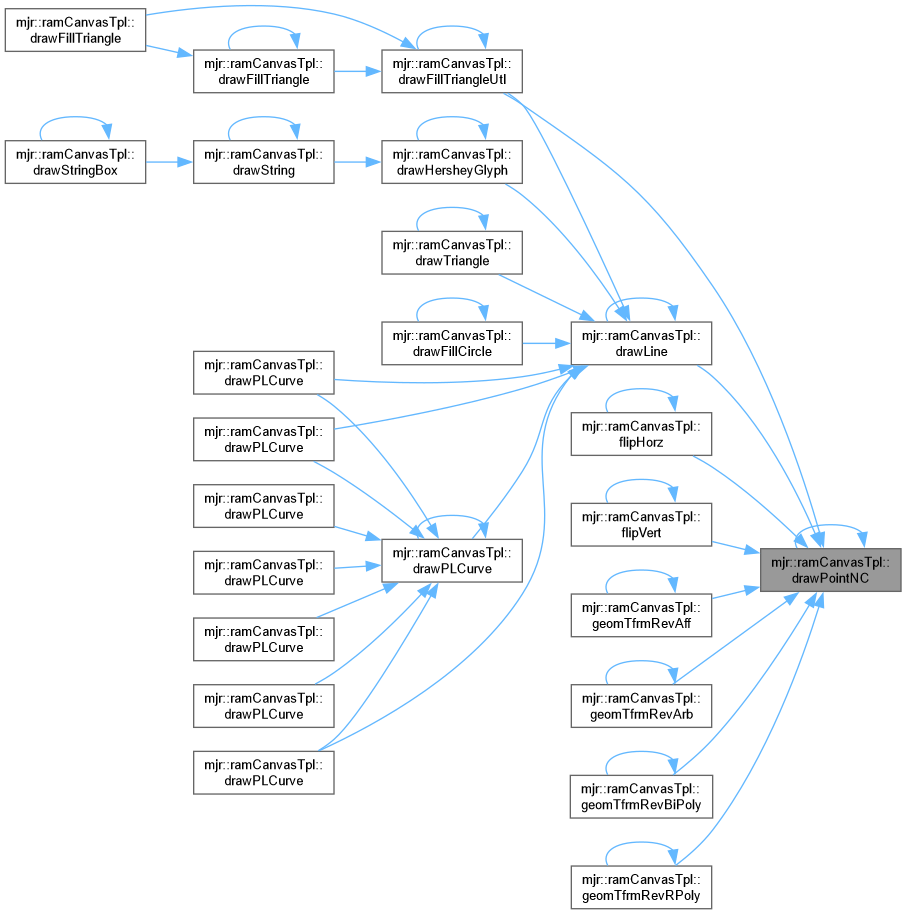

void	drawPointNC (intCrdT x, intCrdT y, colorArgType color)
	The functions here work in a similar way to the non-NC functions, but with no clipping or bounds checking.
colorT	getPxColorNC (intCrdT x, intCrdT y) const
	Get the default point to the specified coordinates with no clipping or bounds checking.

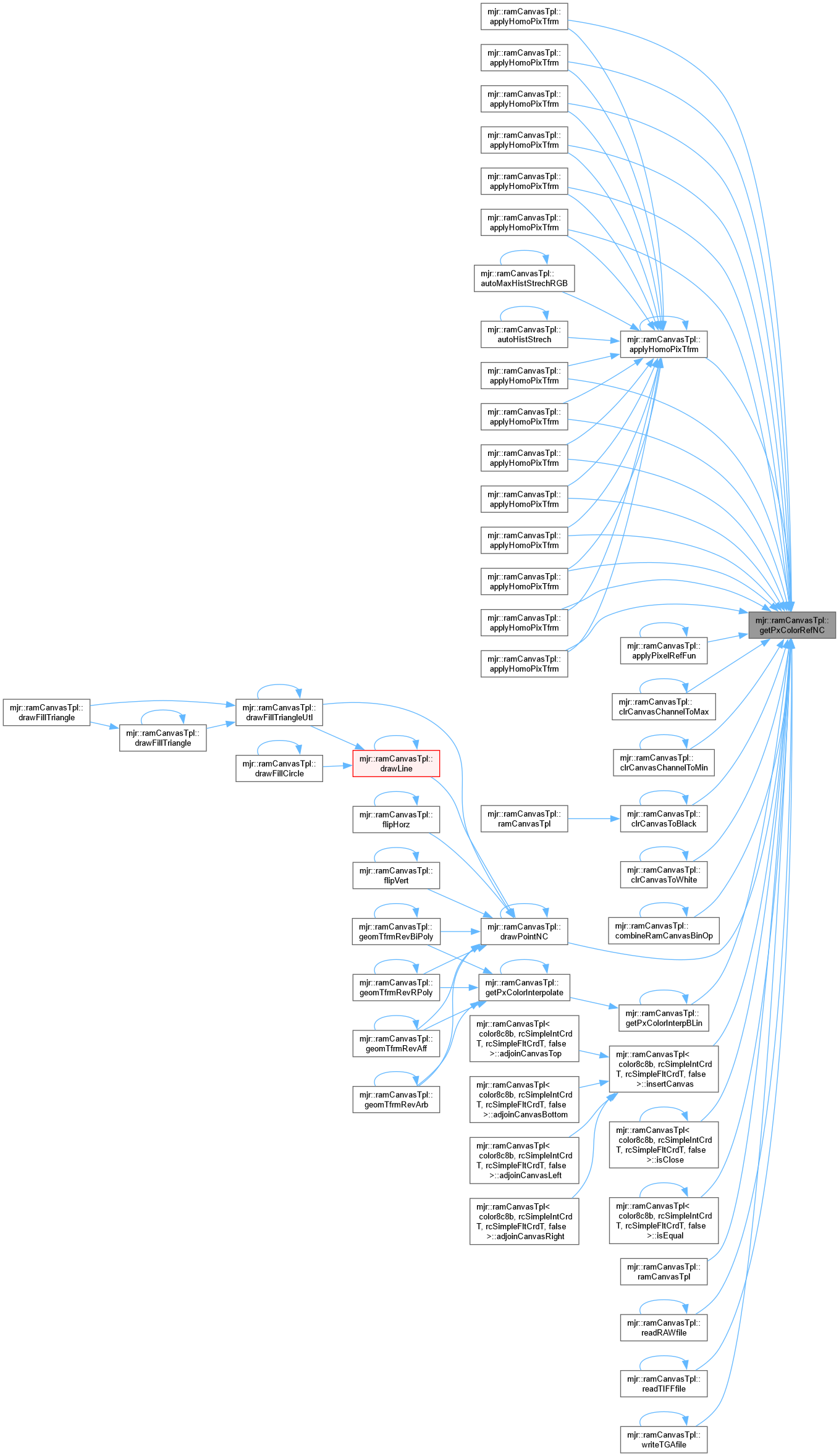

colorT &	getPxColorRefNC (intCrdT x, intCrdT y) const
	Returns a reference to the color object for the given pixel with no clipping or bounds checking.

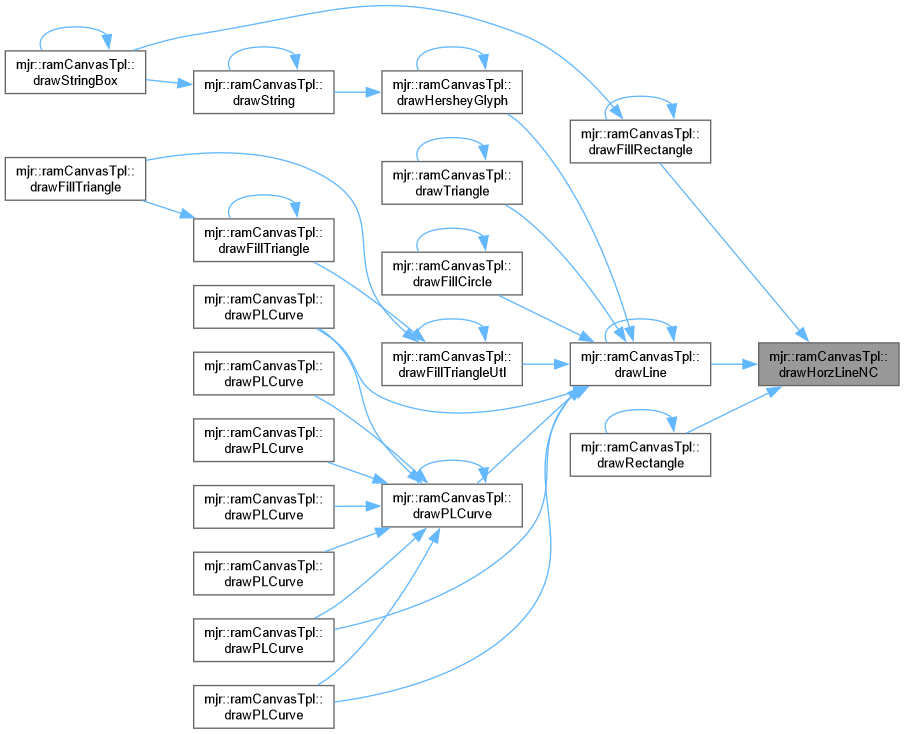

void	drawHorzLineNC (intCrdT xMin, intCrdT xMax, intCrdT yConst, colorArgType color)
	Draw a horizontal line with no clipping or bounds checking.

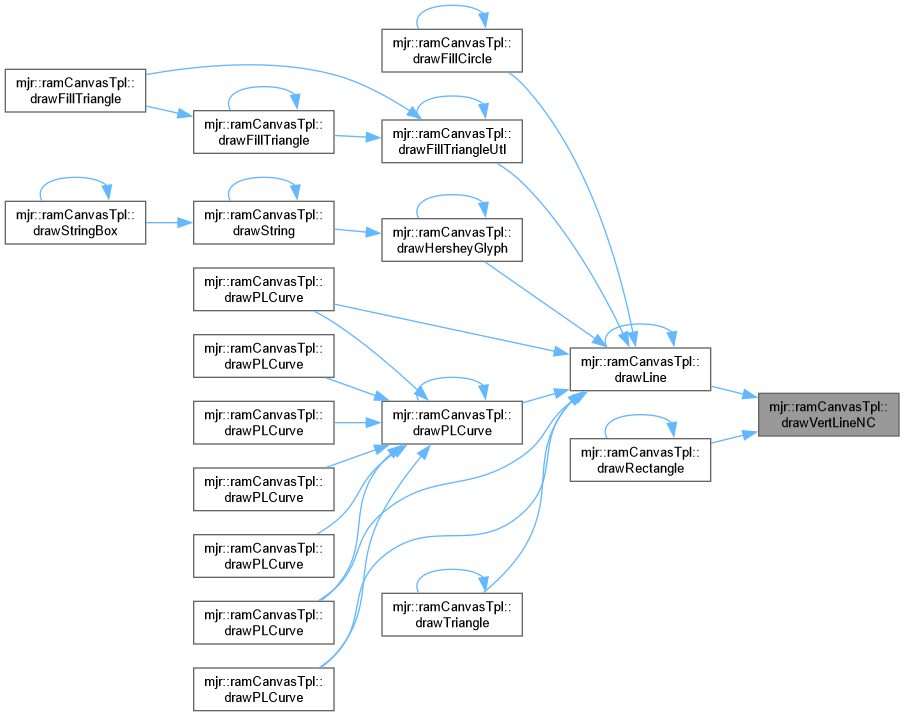

void	drawVertLineNC (intCrdT yMin, intCrdT yMax, intCrdT xConst, colorArgType color)
	Draw a vertical line with no clipping or bounds checking.

S stands for Simple
void	drawPointS (intCrdT x, intCrdT y, colorArgType color)
	Draw a point without any special drawing options.

Canvas Level Colorization.
These are tools designed to make things like escape time fractals very easy to create. Warning These functions are experimental! Functionality and API are likely to change in the future.

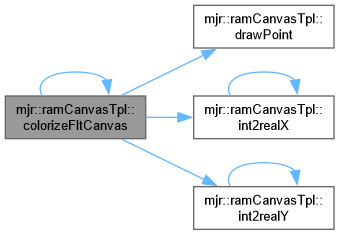

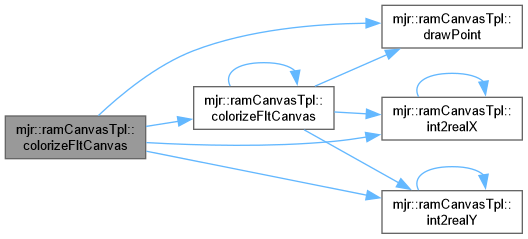

void	colorizeFltCanvas (std::function< colorT(fltCrdT, fltCrdT)> cFun)
void	colorizeFltCanvas (std::function< colorT(pointFltType)> cFun)
void	colorizeIntCanvas (std::function< colorT(intCrdT, intCrdT)> cFun)
void	colorizeIntCanvas (std::function< colorT(pointIntType)> cFun)

Canvas Level Statistical Computation.
intCrdT	statNumNonZeroPixels (intCrdT x1, intCrdT y1, intCrdT x2, intCrdT y2)
intCrdT	statNumNonZeroPixels ()

Detailed Description

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)
class mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >

Class providing off-screen drawing functionality.

This class essentially manages a 2D array of pixels (represented as colorTpl objects). Both integer and floating point coordinates are supported.

Coordinates

Traditional Mathematical Coordinate System

The traditional coordinate system used in mathematics is the Cartesian Coordinate system. In this system the axes represent real numbers which increase as one moves to the right or up.

                             ^ y (increasing upward)
                             |
                             . (0, 1)
                             |
                             |
                             |
                    (-1,0)   | (0,0)        x (increasing to the right)
                  <-.--------+--------.----->
                             |        (1,0)
                             |
                             |
                             |
                             . (0, -1)
                             |
                             v

Traditional Computer Graphics Coordinate System

Unlike the Cartesian coordinate system, the traditional coordinates used in computer graphics have only positive, integer coordinates, the origin at the upper left, and the x and y coordinates increasing to the right and down. This is a very natural choice given the discrete nature of digital displays and the typical layout of 2D arrays in RAM.

              (0,0)   +------------+ (numPixX-1, 0)
                      |            |
                      |            |
                      |            |
                      |            |
                      |            |
       (numPixY-1, 0) +------------+ (numPixX-1, numPixY-1)

ramCanvas Coordinate Systems

This library supports two sets of coordinates for each image:

Integer – much like traditional computer graphics coordinates
Floating Point – much like mathematical coordinates

The integer coordinates are a generalization of the traditional integer coordinates used for computer graphics. Like the traditional system, they are unsigned integers (so the coordinates start at 0), each pixel is one unit from the previous, and the maximum pixel coordinate is one minus the canvas size in that coordinate direction. The generalization is that the origin of the coordinate system can be any of the four corners. By default the origin is the lower, left corner. Note that the memory layout of the image is not modified by the integer coordinate system – i.e. the location of the origin is irrelevant when it comes to the layout of bits in RAM. In RAM the layout is the same as the traditional coordinate system where the coordinates are the indexes of the image array. What is the point? The location of the origin is taken into consideration when the image is exported/imported by functions like writeRAWfile.

Template Parameters

intCrdT	An integral type used for the integer image coordinates. Should be signed, and at least \( 4\cdot\log_2(\mathtt{numPixX} \cdot \mathtt{numPixY}) \) bits in size
colorT	A type for the image pixels (a color)
fltCrdT	A floating point type used for the floating point image coordinates
enableDrawModes	If true, enables drawing modes other than drawModeType::SET.

Definition at line 146 of file ramCanvasTpl.hpp.

Member Typedef Documentation

◆ pointFltType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef point2d<fltCrdT> mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::pointFltType

Real coordinate pair type.

Definition at line 152 of file ramCanvasTpl.hpp.

◆ pointIntType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef point2d<intCrdT> mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::pointIntType

Integer coordinate pair type.

Definition at line 153 of file ramCanvasTpl.hpp.

◆ pointIntVecType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef std::vector<pointIntType> mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::pointIntVecType

Integer coordinate pair type.

Definition at line 154 of file ramCanvasTpl.hpp.

◆ cplxFltType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef std::complex<fltCrdT> mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::cplxFltType

Real coordinate complex type (Provided for convince – not used in ramCanvasTpl)

Definition at line 155 of file ramCanvasTpl.hpp.

◆ cplxIntType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef std::complex<intCrdT> mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::cplxIntType

Integer coordinate complex type (Provided for convince – not used in ramCanvasTpl)

Definition at line 156 of file ramCanvasTpl.hpp.

◆ coordIntType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef intCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::coordIntType

Integer type for coordinates.

Definition at line 157 of file ramCanvasTpl.hpp.

◆ coordFltType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::coordFltType

Real type for coordinates.

Definition at line 158 of file ramCanvasTpl.hpp.

◆ colorType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::colorType

Color type for pixels.

Definition at line 159 of file ramCanvasTpl.hpp.

◆ fltCrd2ColType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef std::function<colorT (fltCrdT, fltCrdT)> mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::fltCrd2ColType

std::function type floating point coordinates to a color

Definition at line 165 of file ramCanvasTpl.hpp.

◆ fltPnt2ColType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef std::function<colorT (pointFltType)> mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::fltPnt2ColType

std::function type floating point point to a color

Definition at line 166 of file ramCanvasTpl.hpp.

◆ intCrd2ColType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef std::function<colorT (intCrdT, intCrdT)> mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::intCrd2ColType

std::function type int point coordinates to a color

Definition at line 167 of file ramCanvasTpl.hpp.

◆ intPnt2ColType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef std::function<colorT (pointIntType)> mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::intPnt2ColType

std::function type int point point to a color

Definition at line 168 of file ramCanvasTpl.hpp.

◆ colorChanType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT::channelType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::colorChanType

colorT: Channel type

Definition at line 174 of file ramCanvasTpl.hpp.

◆ colorMaskType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT::maskType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::colorMaskType

colorT: Mask type

Definition at line 175 of file ramCanvasTpl.hpp.

◆ colorChanArithDType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT::channelArithDType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::colorChanArithDType

colorT: Channel arithmatic (Int: -)

Definition at line 176 of file ramCanvasTpl.hpp.

◆ colorChanArithSPType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT::channelArithSPType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::colorChanArithSPType

colorT: Channel arithmatic (Int: +*)

Definition at line 177 of file ramCanvasTpl.hpp.

◆ colorChanArithSDPType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT::channelArithSDPType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::colorChanArithSDPType

colorT: Channel arithmatic (Int: +-*)

Definition at line 178 of file ramCanvasTpl.hpp.

◆ colorChanArithFltType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT::channelArithFltType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::colorChanArithFltType

colorT: Channel arithmatic (Flt: +-*)

Definition at line 179 of file ramCanvasTpl.hpp.

◆ colorChanArithLogType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT::channelArithLogType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::colorChanArithLogType

colorT: Channel arithmatic (Int: ^|&~)

Definition at line 180 of file ramCanvasTpl.hpp.

◆ colorSpaceEnum

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT::colorSpaceEnum mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::colorSpaceEnum

colorT: Color spaces

Definition at line 181 of file ramCanvasTpl.hpp.

◆ colorCornerEnum

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT::cornerColorEnum mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::colorCornerEnum

colorT: RGB Color Corners

Definition at line 182 of file ramCanvasTpl.hpp.

◆ colorArgType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT::colorArgType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::colorArgType

colorT: Argument passing type

Definition at line 183 of file ramCanvasTpl.hpp.

◆ colorPtrType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT::colorPtrType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::colorPtrType

colorT: Pointer to color

Definition at line 184 of file ramCanvasTpl.hpp.

◆ colorRefType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT::colorRefType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::colorRefType

colorT: Ref to a color

Definition at line 185 of file ramCanvasTpl.hpp.

◆ colorCRefType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT::colorCRefType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::colorCRefType

colorT: Const Ref to a color

Definition at line 186 of file ramCanvasTpl.hpp.

◆ csIntType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT::csIntType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::csIntType

colorT: Color Scheme Integer Type

Definition at line 187 of file ramCanvasTpl.hpp.

◆ csFltType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT::csFltType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::csFltType

colorT: Color Scheme Float Type

Definition at line 188 of file ramCanvasTpl.hpp.

◆ csNatType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT::csNatType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::csNatType

colorT: Color Scheme Natural Type

Definition at line 189 of file ramCanvasTpl.hpp.

◆ cmfInterpolationEnum

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT::cmfInterpolationEnum mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::cmfInterpolationEnum

colorT: Interpolation for color match functions

Definition at line 190 of file ramCanvasTpl.hpp.

◆ pixelIterator

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT* mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::pixelIterator

pixel store iterators

Definition at line 196 of file ramCanvasTpl.hpp.

◆ iterator

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

typedef colorT* mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::iterator

pixel store iterators

Definition at line 197 of file ramCanvasTpl.hpp.

Member Enumeration Documentation

◆ realAxisOrientation

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

enum class mjr::ramCanvasTpl::realAxisOrientation

strong

Enum for real axis orientation.

Enumerator
INVERTED	Real axis is inverted with respect to the integer axis.
NATURAL	Real axis is not inverted with respect to the integer axis.

Definition at line 204 of file ramCanvasTpl.hpp.

◆ intAxisOrientation

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

enum class mjr::ramCanvasTpl::intAxisOrientation

strong

Enum for integer axis orientation.

Note integer axis orientation has no impact on the in-ram representation of the image. i.e. Pixel (0,0) will always be the first element of the pixels array. The integer axis orientation is used to arrange the pixels when a canvas is saved/loaded to/from an image file.

Enumerator
INVERTED	Zero is to the right or bottom.
NATURAL	Zero is to the left or top.

Definition at line 212 of file ramCanvasTpl.hpp.

◆ drawModeType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

enum class mjr::ramCanvasTpl::drawModeType

strong

Enum for drawing Mode.

Enumerator
SET	Simply set the pixel value to the new value.
XOR	See: tfrmXor()
ADDCLAMP	See: tfrmAddClamp()
AND	See: tfrmAnd()
OR	See: tfrmOr()
DIFFCLAMP	See: tfrmDiffClamp()
MULTCLAMP	See: tfrmMultClamp()

Definition at line 217 of file ramCanvasTpl.hpp.

◆ interpolationType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

enum class mjr::ramCanvasTpl::interpolationType

strong

Enum for drawing Mode.

Enumerator
BILINEAR	bilinear
TRUNCATE	Coordinates are truncated (fractional bits chopped off)
NEAREST	Coordinates are rounded.
AVERAGE4	Average of four sourounding pixels.
AVERAGE9	Average of 9 sourounding pixels.

Definition at line 227 of file ramCanvasTpl.hpp.

◆ endianType

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

enum class mjr::ramCanvasTpl::endianType

strongprivate

Endianness Identifiers.

Enumerator
BIG	PowerPC.
LITTLE	Intel.
AUTO	Whatever the platform uses.

Definition at line 248 of file ramCanvasTpl.hpp.

Constructor & Destructor Documentation

◆ ramCanvasTpl() [1/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::ramCanvasTpl ( )

No arg constructor.

Sets numPixX and numPixY to -1, and pixels to NULL.

Definition at line 1975 of file ramCanvasTpl.hpp.

References newIntCoordsNC(), newRealCoords(), pixels, pixelsE, ramCanvasTpl(), setDefaultDrawMode(), setIntAxisDefaultOrientation(), and setRealAxisDefaultOrientation().

Referenced by combineRamCanvasBinOp(), geomTfrmRevAff(), geomTfrmRevArb(), geomTfrmRevBiPoly(), geomTfrmRevRPoly(), operator=(), ramCanvasTpl(), ramCanvasTpl(), ramCanvasTpl(), ramCanvasTpl(), and ~ramCanvasTpl().

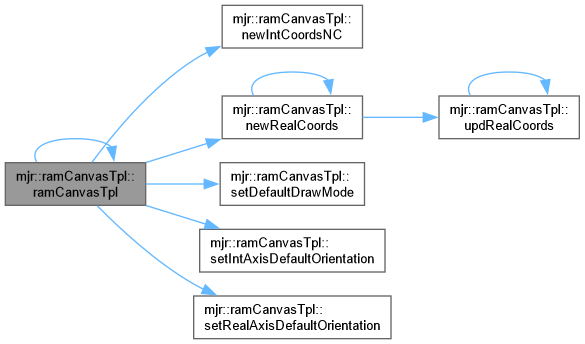

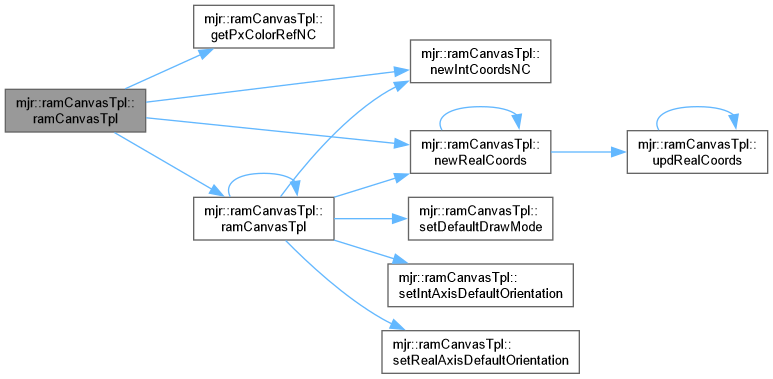

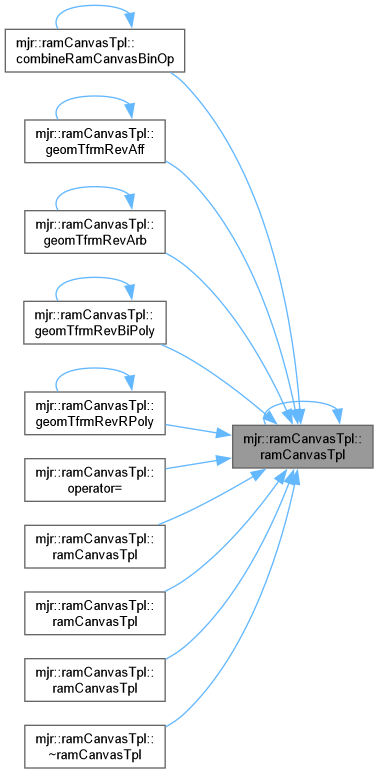

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ramCanvasTpl() [2/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::ramCanvasTpl ( const ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > & theCanvas )

Copy constructor.

Definition at line 1989 of file ramCanvasTpl.hpp.

References drawMode, getPxColorRefNC(), intAxOrientationX, intAxOrientationY, maxRealX, maxRealY, minRealX, minRealY, newIntCoordsNC(), newRealCoords(), numPixX, numPixY, pixels, pixelsE, ramCanvasTpl(), realAxOrientationX, and realAxOrientationY.

Here is the call graph for this function:

◆ ramCanvasTpl() [3/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::ramCanvasTpl	(	intCrdT	numPixX_p,
		intCrdT	numPixY_p,
		fltCrdT	minRealX_p = -1,
		fltCrdT	maxRealX_p = 1,
		fltCrdT	minRealY_p = -1,
		fltCrdT	maxRealY_p = 1 )

Most commonly used constructor.

The real coordinates have default values with -1 as the min values and 1 used as the max values.

Parameters

numPixX_p	Number of pixels in the X direction
numPixY_p	Number of pixels in the Y direction
minRealX_p	Minimum real x coordinate value
maxRealX_p	Maximum real x coordinate value
minRealY_p	Minimum real y coordinate value
maxRealY_p	Maximum real y coordinate value

Definition at line 2044 of file ramCanvasTpl.hpp.

References clrCanvasToBlack(), newIntCoordsNC(), newRealCoords(), numPixX, numPixY, pixels, pixelsE, ramCanvasTpl(), setDefaultDrawMode(), setIntAxisDefaultOrientation(), and setRealAxisDefaultOrientation().

Here is the call graph for this function:

◆ ramCanvasTpl() [4/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::ramCanvasTpl ( ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > && theCanvas )

Move constructor.

Definition at line 2008 of file ramCanvasTpl.hpp.

References drawMode, intAxOrientationX, intAxOrientationY, maxRealX, maxRealY, minRealX, minRealY, newIntCoordsNC(), newRealCoords(), numPixX, numPixY, pixels, pixelsE, ramCanvasTpl(), realAxOrientationX, and realAxOrientationY.

Here is the call graph for this function:

◆ ~ramCanvasTpl()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::~ramCanvasTpl ( )

Destructor deallocates memory for the canvas.

Definition at line 2058 of file ramCanvasTpl.hpp.

References pixels, and ramCanvasTpl().

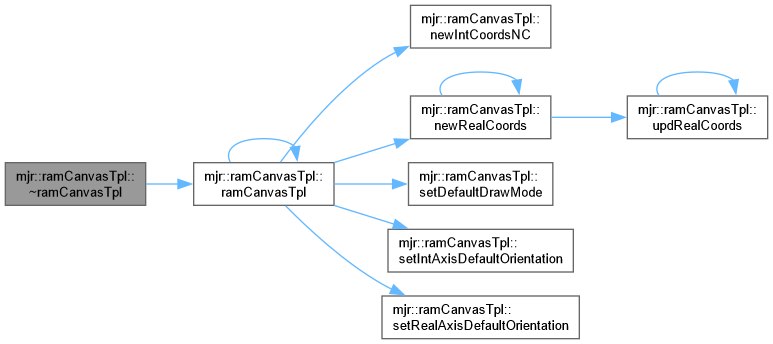

Here is the call graph for this function:

Member Function Documentation

◆ drawFillTriangleUtl()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillTriangleUtl	(	intCrdT	x1,
		intCrdT	y1,
		intCrdT	x2,
		intCrdT	y2,
		intCrdT	x3,
		intCrdT	y3,
		colorT	c1,
		colorT	c2,
		colorT	c3,
		bool	solid )

private

Utliity function behind the drawFillTriangle() functions.

Bug: Not thread safe

Parameters

x1	The x coordinate of the first point
y1	The y coordinate of the first point
x2	The x coordinate of the second point
y2	The y coordinate of the second point
x3	The x coordinate of the third point
y3	The y coordinate of the third point
c1	The color of the first point (x1, y1)
c2	The color of the second point (x2, y2)
c3	The color of the third point (x3, y3)
solid	Use only c1 if true, otherwise use barycentric interpolation

Definition at line 3773 of file ramCanvasTpl.hpp.

References drawFillTriangleUtl(), drawLine(), drawPointNC(), isCliped(), numPixY, and triangleEdger().

Referenced by drawFillTriangle(), drawFillTriangle(), and drawFillTriangleUtl().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeUIntToStream()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::writeUIntToStream	(	std::ostream &	oStream,
		endianType	endianness,
		int	numBytes,
		uint64_t	data )

inlineprivate

Write an unsigned integer to a stream with given length and endianness.

Parameters

oStream	The ostream object to which to write
endianness	The endianness to use for the integer.
numBytes	The number of bytes of the data parameter to use (logically the least significant bits)
data	The integer to write

Definition at line 2826 of file ramCanvasTpl.hpp.

References AUTO, LITTLE, platformEndianness(), and writeUIntToStream().

Referenced by writeTGAfile(), writeTIFFfile(), and writeUIntToStream().

Here is the call graph for this function:

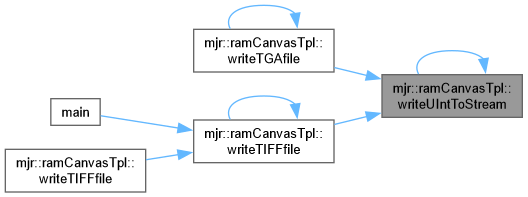

Here is the caller graph for this function:

◆ platformEndianness()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::endianType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::platformEndianness ( )

inlineprivate

Determine the platform's endianness.

Definition at line 2813 of file ramCanvasTpl.hpp.

References BIG, LITTLE, and platformEndianness().

Referenced by platformEndianness(), readRAWfile(), writeRAWfile(), writeTIFFfile(), and writeUIntToStream().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updRealCoords()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::updRealCoords ( )

inlineprivate

Several internal parameters are maintained within this class that make conversion between real coordinates and integer coordinate very fast.

This function will update the internal parameters if the real coordinate sizes or the integer coordinate sizes have changed. This function is intended for internal use. An example of when to use this function is right after the integer coordinate axes have changed via a call to newIntCoordsNC().

Definition at line 2103 of file ramCanvasTpl.hpp.

References canvasWidX, canvasWidY, maxRealX, maxRealY, minRealX, minRealY, numPixX, numPixY, pixWidX, pixWidY, and updRealCoords().

Referenced by newRealCoords(), rePointPixels(), and updRealCoords().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ newIntCoordsNC()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::newIntCoordsNC	(	intCrdT	numPixX_p,
		intCrdT	numPixY_p )

inlineprivate

Change the logical coordinate sizes.

It is important that the specified coordinate sizes describe an image with FEWER pixels than the previous sizes. This function will NOT allocate a new pixel array, so the previous array contents will be interpreted as valid data – just at different coordinates. This function causes no memory leaks. This function will NOT update the internal parameters related to real coordinate systems and so updRealCoords() should be called after this function in most cases. This function is intended for internal use and provides no safety checks.

Parameters

numPixX_p	The width of the new canvas
numPixY_p	The height of the new canvas

Definition at line 2069 of file ramCanvasTpl.hpp.

References intCrdMax, numPix, numPixX, and numPixY.

Referenced by freeCanvas(), operator=(), ramCanvasTpl(), ramCanvasTpl(), ramCanvasTpl(), ramCanvasTpl(), and rePointPixels().

Here is the caller graph for this function:

◆ reallocCanvas()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::reallocCanvas	(	intCrdT	numPixX_p,
		intCrdT	numPixY_p )

private

Destroy the current pixel memory and reallocate a new pixel space of the given size.

This will not clear the canvas. It will not reallocate the canvas unless the new size is different from the current size. It will not allocate a new canvas if either argument is zero or less. Updates coordinates.

Parameters

numPixX_p	The width of the new canvas
numPixY_p	The height of the new canvas

Definition at line 2655 of file ramCanvasTpl.hpp.

References freeCanvas(), numPixX, numPixY, reallocCanvas(), and rePointPixels().

Referenced by reallocCanvas(), and resizeCanvas().

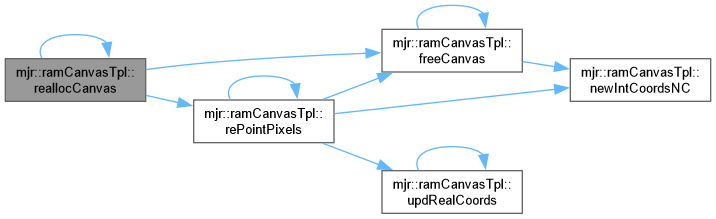

Here is the call graph for this function:

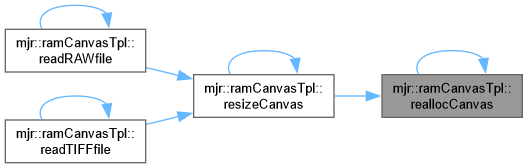

Here is the caller graph for this function:

◆ freeCanvas()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::freeCanvas ( )

private

Free the pixel memory (i)

Definition at line 2626 of file ramCanvasTpl.hpp.

References freeCanvas(), newIntCoordsNC(), pixels, and pixelsE.

Referenced by freeCanvas(), reallocCanvas(), and rePointPixels().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rePointPixels()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::rePointPixels	(	colorT *	new_pixels,
		intCrdT	new_numPixX,
		intCrdT	new_numPixY )

private

Points the pixels pointer at a new pixel store, and updates coordinates.

Pixels pointer not changed if new_pixels is NULL

Definition at line 2639 of file ramCanvasTpl.hpp.

References freeCanvas(), newIntCoordsNC(), pixels, pixelsE, rePointPixels(), and updRealCoords().

Referenced by convolution(), cropCanvas(), expandCanvas(), flipTranspose(), reallocCanvas(), rePointPixels(), rotate180(), rotate90CCW(), rotate90CW(), scaleDown1pt(), scaleDownMax(), scaleDownMean(), and scaleUpProximal().

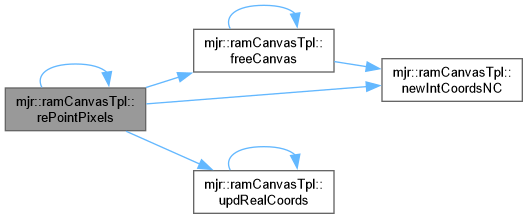

Here is the call graph for this function:

Here is the caller graph for this function:

◆ triangleEdger()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::triangleEdger	(	intCrdT	x1,
		intCrdT	y1,
		intCrdT	x2,
		intCrdT	y2,
		intCrdT *	pts,
		bool	findMin )

inlineprivate

Used to find the left and right edges of a triangle.

Definition at line 3621 of file ramCanvasTpl.hpp.

References triangleEdger().

Referenced by drawFillTriangleUtl(), and triangleEdger().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ exportRasterData()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

int mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::exportRasterData	(	void *&	rasterData,
		intCrdT	x1,
		intCrdT	y1,
		intCrdT	x2,
		intCrdT	y2,
		int	redChan,
		int	greenChan,
		int	blueChan,
		int	alphaChan )

Extract raster data from the image, and pack it into a typical form used by imaging applications.

Each pixel is packed into a 1, 2, 3, or 4 byte memory block with the location of each channel given by redChan, blueChan, greenChan, and alphaChan. If one of these values is -1, then that channel is not extracted. For example, all of them set to -1 except redChan (set to 0), an 8-bit gray scale image would be extracted. One might extract 24-bit RGB with redChan=0, greenChan=1, and blueChan=2. Add alphaChan=3, and extract 24-bit RGB with alpha – sometimes called 24-bit RGBA or 32-bit RGBA. Many systems expect the alpha bit to be first, so one might use alphaChan=0, redChan=1, greenChan=2, and blueChan=3 to get ARGB. As a fine example, TARGA images use BGR – blueChan=0, greenChan=1, and redChan=2. In summary:

         Examples of how to pack various common raster data formats
         ..........RGB  RGBA  ARGB   BGR  ABGR  Grey
         redChan     0     0     1     2     3     0
         greenChan   1     1     2     1     2    -1
         blueChan    2     2     3     0     1    -1
         alphaChan  -1     3     0    -1     0    -1

Parameters

rasterData	Unsigned char pointer to image data. If NULL,then data will be allocated for image.
x1	First x coordinate first corner of sub-image to extract
x2	First x coordinate second corner of sub-image to extract
y1	First y coordinate first corner of sub-image to extract
y2	First y coordinate second corner of sub-image to extract
redChan	Channel index to use for red
blueChan	Channel index to use for blue
greenChan	Channel index to use for green
alphaChan	Channel index to use for alpha

Definition at line 3197 of file ramCanvasTpl.hpp.

References exportRasterData(), getPxColorNC(), numPixX, and numPixY.

Referenced by exportRasterData().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > & mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::operator= ( ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > && theCanvas )

Move assignment operator.

Definition at line 2025 of file ramCanvasTpl.hpp.

References drawMode, intAxOrientationX, intAxOrientationY, maxRealX, maxRealY, minRealX, minRealY, newIntCoordsNC(), newRealCoords(), numPixX, numPixY, pixels, pixelsE, ramCanvasTpl(), realAxOrientationX, and realAxOrientationY.

Here is the call graph for this function:

◆ adjoinCanvasRight()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::adjoinCanvasRight ( const ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > & theCanvas )

inline

Adjoin the canvas to the side of the current canvas.

Warning: This function is experimental! Functionality and API are likely to change in the future.

Parameters

theCanvas The canvas to adjoin.

Definition at line 474 of file ramCanvasTpl.hpp.

◆ adjoinCanvasLeft()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::adjoinCanvasLeft ( const ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > & theCanvas )

inline

Adjoin the canvas to the side of the current canvas.

Warning: This function is experimental! Functionality and API are likely to change in the future.

Parameters

theCanvas The canvas to adjoin.

Definition at line 485 of file ramCanvasTpl.hpp.

◆ adjoinCanvasBottom()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::adjoinCanvasBottom ( const ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > & theCanvas )

inline

Adjoin the canvas to the side of the current canvas.

Warning: This function is experimental! Functionality and API are likely to change in the future.

Parameters

theCanvas The canvas to adjoin.

Definition at line 496 of file ramCanvasTpl.hpp.

◆ adjoinCanvasTop()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::adjoinCanvasTop ( const ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > & theCanvas )

inline

Adjoin the canvas to the side of the current canvas.

Warning: This function is experimental! Functionality and API are likely to change in the future.

Parameters

theCanvas The canvas to adjoin.

Definition at line 507 of file ramCanvasTpl.hpp.

◆ insertCanvas()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::insertCanvas	(	const ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > &	theCanvas,
		intCrdT	x1 = 0,
		intCrdT	y1 = 0 )

inline

Draw the given canvas at the indicated point.

Warning: This function is experimental! Functionality and API are likely to change in the future.

Parameters

theCanvas	The canvas to draw on the current canvas.
x1	X coordinate at which to place the canvas.
y1	Y coordinate at which to place the canvas.

Definition at line 520 of file ramCanvasTpl.hpp.

◆ resizeCanvas()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::resizeCanvas	(	intCrdT	new_numPixX_p,
		intCrdT	new_numPixY_p )

Resize the canvas to the given size.

Contents of new canvas may be random data. Not guarnteed to reallocate the canvas.

Parameters

new_numPixX_p	The width of the new canvas
new_numPixY_p	The height of the new canvas

Definition at line 2672 of file ramCanvasTpl.hpp.

References reallocCanvas(), and resizeCanvas().

Referenced by readRAWfile(), readTIFFfile(), and resizeCanvas().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ expandCanvas()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::expandCanvas	(	intCrdT	new_numPixX_p,
		intCrdT	new_numPixY_p,
		intCrdT	x1 = 0,
		intCrdT	y1 = 0,
		colorArgType	color = colorT(colorT::minChanVal) )

Expand the current canvas.

The current image will appear within the new canvas at the specified location. All pixels not set by the previous image will be set to the given color.

Parameters

new_numPixX_p	The width of the new canvas
new_numPixY_p	The height of the new canvas
x1	Coord at which the left of the old image will appear in the new image
y1	Coord at which the top of the old image will appear in the new image
color	Color to use for the background of the new image.

Definition at line 2680 of file ramCanvasTpl.hpp.

References expandCanvas(), getPxColor(), numPixX, numPixY, and rePointPixels().

Referenced by expandCanvas().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cropCanvas()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::cropCanvas	(	intCrdT	x1,
		intCrdT	y1,
		intCrdT	x2,
		intCrdT	y2 )

This function will crop the canvas to the given rectangular region.

Parameters

x1	Left, or right, edge of region to keep.
x2	Right, or left, edge of region to keep.
y1	Left, or right, edge of region to keep.
y2	Right, or left, edge of region to keep.

Definition at line 2707 of file ramCanvasTpl.hpp.

References cropCanvas(), getPxColor(), isCliped(), and rePointPixels().

Referenced by cropCanvas().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ newRealCoords()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::newRealCoords	(	fltCrdT	minRealX_p,
		fltCrdT	maxRealX_p,
		fltCrdT	minRealY_p,
		fltCrdT	maxRealY_p )

inline

Change the real coordinate system associated with a canvas.

It updates all internal parameters are required.

Parameters

minRealX_p	Minimum real x coordinate value
maxRealX_p	Maximum real x coordinate value
minRealY_p	Minimum real y coordinate value
maxRealY_p	Maximum real y coordinate value

Definition at line 2085 of file ramCanvasTpl.hpp.

References maxRealX, maxRealY, minRealX, minRealY, newRealCoords(), and updRealCoords().

Referenced by newRealCoords(), operator=(), ramCanvasTpl(), ramCanvasTpl(), ramCanvasTpl(), and ramCanvasTpl().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isSameSize()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

bool mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::isSameSize ( ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > const & inRC ) const

inline

Return true if given canvas and current canvas are the same size.

Definition at line 572 of file ramCanvasTpl.hpp.

◆ isNotSameSize()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

bool mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::isNotSameSize ( ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > const & inRC ) const

inline

Return true if given canvas and current canvas are NOT the same size.

Definition at line 580 of file ramCanvasTpl.hpp.

◆ isClose()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

bool mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::isClose	(	ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > const &	inRC,
		colorChanType	epsilon ) const

inline

Return true if corresponding pixels in each canvas are "close" as defined by colorTpl::isClose().

Definition at line 588 of file ramCanvasTpl.hpp.

◆ isEqual()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

bool mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::isEqual ( ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > const & inRC ) const

inline

Return true if corresponding pixels in each canvas are "equal" as defined by colorTpl::isEqual().

Definition at line 599 of file ramCanvasTpl.hpp.

◆ rotate90CW()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::rotate90CW ( )

Loss-less 90 degree clockwise rotation of the canvas about the center.

The top row of pixels will be on the right side after the rotation. The canvas will be resized as required. The transformation is not done "in place", so enough memory is required to duplicate the canvas.

Definition at line 2771 of file ramCanvasTpl.hpp.

References getPxColor(), numPixX, numPixY, rePointPixels(), and rotate90CW().

Referenced by rotate90CW().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rotate90CCW()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::rotate90CCW ( )

Loss-less 90 degree counter clockwise rotation of the canvas about the center.

The top row of pixels will be on the left side after the rotation. The canvas will be resized as required. The transformation is not done "in place", so enough memory is required to duplicate the canvas.

Definition at line 2785 of file ramCanvasTpl.hpp.

References getPxColor(), numPixX, numPixY, rePointPixels(), and rotate90CCW().

Referenced by rotate90CCW().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rotate180()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::rotate180 ( )

Loss-less 180 degree rotation of the canvas about the center.

The top row of pixels will be on the bottom side after the rotation. The transformation is not done "in place", so enough memory is required to duplicate the canvas.

Definition at line 2799 of file ramCanvasTpl.hpp.

References getPxColor(), numPixX, numPixY, rePointPixels(), and rotate180().

Referenced by rotate180().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ flipHorz()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::flipHorz ( )

Loss-less, horizontal flip of the canvas about the center.

The top row of pixels will be on the bottom side after the flip. The transformation is done "in place" so no extra RAM is required.

Definition at line 2731 of file ramCanvasTpl.hpp.

References drawPointNC(), flipHorz(), getPxColor(), numPixX, and numPixY.

Referenced by flipHorz().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ flipVert()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::flipVert ( )

Loss-less, vertical flip of the canvas about the center.

The left row of pixels will be on the right side after the flip. The transformation is done "in place" so no extra RAM is required.

Definition at line 2744 of file ramCanvasTpl.hpp.

References drawPointNC(), flipVert(), getPxColor(), numPixX, and numPixY.

Referenced by flipVert().

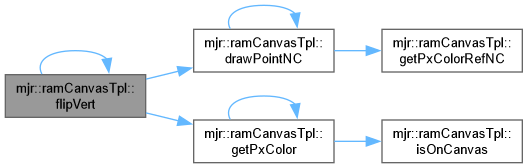

Here is the call graph for this function:

Here is the caller graph for this function:

◆ flipTranspose()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::flipTranspose ( )

Loss-less, vertical flip of the canvas about the center.

The top row of pixels will be on the left side after the flip, and pixel (x,y) will be in position (y,x). The canvas will be resized as required. The transformation is not done "in place", so enough memory is required to duplicate the canvas.

Definition at line 2757 of file ramCanvasTpl.hpp.

References flipTranspose(), getPxColor(), numPixX, numPixY, and rePointPixels().

Referenced by flipTranspose().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ scaleUpProximal()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::scaleUpProximal ( int xfactor )

Scale up the image using proximal interpolation.

For each source pixel we create an xfactor*xfactor box filled with the color of the original pixel. The resulting images are block, but the histograms stay accurate. The algorithm is very fast as it is very simple.

Parameters

xfactor The factor to scale up to – must be a positive integer.

Definition at line 4186 of file ramCanvasTpl.hpp.

References getPxColor(), numPixX, numPixY, rePointPixels(), and scaleUpProximal().

Referenced by scaleUpProximal().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ scaleDown1pt()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::scaleDown1pt ( int xfactor )

Scale down using only the upper left pixel from each block.

This will tend to highlight horizontal and vertical detail and generally sharpen up the image. Much data is lost with this sort of scaling operation.

Parameters

xfactor The factor to scale up to – must be a positive integer.

Definition at line 4214 of file ramCanvasTpl.hpp.

References getPxColor(), numPixX, numPixY, rePointPixels(), and scaleDown1pt().

Referenced by scaleDown1pt().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ scaleDownMax()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::scaleDownMax ( int xfactor )

Scale down using only the pixel with maximum luminosity in each block.

Much like scaleDown1pt(), this will sharpen up a scaled image, but it will also tend to brighten up the image as well.

Parameters

xfactor The factor to scale up to – must be a positive integer.

Definition at line 4255 of file ramCanvasTpl.hpp.

References getPxColor(), numPixX, numPixY, rePointPixels(), and scaleDownMax().

Referenced by scaleDownMax().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ scaleDownMean()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::scaleDownMean ( int xfactor )

Scale down using the mean pixel value from each block.

This creates each pixel value by averaging all of the pixels that contribute – i.e. a mean on the xfactor*xfactor pixel corresponding to each new pixel. This algorithm tends to "fuzz-up" the result – frequently used for super-sampling.

Parameters

xfactor The factor to scale down to – must be a positive integer.

Definition at line 4230 of file ramCanvasTpl.hpp.

References getPxColor(), numPixX, numPixY, rePointPixels(), and scaleDownMean().

Referenced by scaleDownMean().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ geomTfrmRevRPoly()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::geomTfrmRevRPoly	(	std::vector< double > const &	RPoly,
		double	rScale,
		double	Xo,
		double	Yo,
		double	oScale,
		colorArgType	errorColor = colorCornerEnum::GREEN,
		interpolationType	interpMethod = interpolationType::BILINEAR )

Geometric Transform via Radial Polynomial implemented with Reverse Mapping.

Warning: This function is experimental! Functionality and API are likely to change in the future.

Parameters

RPoly	RPoly is a vector listing the coefficients of a univariate polynomial in lexicographical order – i.e. RPoly[0] is the coefficients on the highest power term.
rScale	Scale to apply before the transformation to the radius.
Xo	X coordinate for origin translation – applied before RPoly and reversed after RPoly & scale.
Yo	Y coordinate for origin translation – applied before RPoly and reversed after RPoly & scale.
oScale	Scale to apply after RPoly and before reverse translation.
errorColor	The color to use for pixels with no valid mapping.
interpMethod	Eventually this will be the interpolation method used.

Definition at line 4789 of file ramCanvasTpl.hpp.

References drawPointNC(), geomTfrmRevRPoly(), getPxColorInterpolate(), isCliped(), numPixX, numPixY, and ramCanvasTpl().

Referenced by geomTfrmRevRPoly().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ geomTfrmRevBiPoly()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::geomTfrmRevBiPoly	(	std::vector< double > const &	BiPolyX,
		std::vector< double > const &	BiPolyY,
		double	Xo,
		double	Yo,
		double	oScale,
		colorArgType	errorColor = colorCornerEnum::GREEN,
		interpolationType	interpMethod = interpolationType::BILINEAR )

Geometric Transform via bivariate polynomial implemented with Reverse Mapping.

Warning: This function is experimental! Functionality and API are likely to change in the future.

Parameters

BiPolyX	Coefficients for a bivariate polynomial in lexicographical order – used to map x coordinates.
BiPolyY	Coefficients for a bivariate polynomial in lexicographical order – used to map y coordinates.
Xo	X coordinate for origin translation – applied before BiPolyand reversed after BiPoly& scale.
Yo	Y coordinate for origin translation – applied before BiPolyand reversed after BiPoly& scale.
oScale	Scale to apply after BiPoly*and before reverse translation.
errorColor	The color to use for pixels with no valid mapping.
interpMethod	Eventually this will be the interpolation method used.

Definition at line 4822 of file ramCanvasTpl.hpp.

References drawPointNC(), geomTfrmRevBiPoly(), getPxColorInterpolate(), isCliped(), numPixX, numPixY, and ramCanvasTpl().

Referenced by geomTfrmRevBiPoly().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ geomTfrmRevAff()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::geomTfrmRevAff	(	std::vector< double > const &	HAMatrix,
		double	Xo,
		double	Yo,
		double	oScale,
		colorArgType	errorColor = colorCornerEnum::GREEN,
		interpolationType	interpMethod = interpolationType::BILINEAR )

Homogenious Affine Geometric Transform implemented with Reverse Mapping.

Warning: This function is experimental! Functionality and API are likely to change in the future.

 [1 0 T_x]   [S_x 0   0]   [cA  sA 0]             [x_in]    [x_out]
 [0 1 T_y]   [0   S_y 0]   [-SA cA 0]         T * [y_in] => [y_out]
 [0 0 1  ]   [0   0   1]   [0   0  1]             [1   ]    [1    ]

Parameters

HAMatrix	Homogeneous affine transform matrix – 9 elements interpreted as a row major order 3x3 matrix.
Xo	X coordinate for origin translation – applied before HAMatrixand reversed after HAMatrix& scale.
Yo	Y coordinate for origin translation – applied before HAMatrixand reversed after HAMatrix& scale.
oScale	Scale to apply after HAMatrixand before reverse translation.
errorColor	The color to use for pixels with no valid mapping.
interpMethod	Eventually this will be the interpolation method used.

Definition at line 4762 of file ramCanvasTpl.hpp.

References drawPointNC(), geomTfrmRevAff(), getPxColorInterpolate(), isCliped(), numPixX, numPixY, and ramCanvasTpl().

Referenced by geomTfrmRevAff().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ geomTfrmRevArb()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::geomTfrmRevArb	(	mjr::point2d< double >(*	f )(double, double),
		double	Xo,
		double	Yo,
		double	oScale,
		colorArgType	errorColor = colorCornerEnum::GREEN,
		interpolationType	interpMethod = interpolationType::BILINEAR )

Geometric Transform via provided mapping function implemented with Reverse Mapping.

Warning: This function is experimental! Functionality and API are likely to change in the future.

Parameters

f	The coordinate transformation function
Xo	X coordinate for origin translation – applied before f and reversed after f & scale.
Yo	Y coordinate for origin translation – applied before f and reversed after f & scale.
oScale	Scale to apply after f and before reverse translation.
errorColor	The color to use for pixels with no valid mapping.
interpMethod	Eventually this will be the interpolation method used.

Definition at line 4734 of file ramCanvasTpl.hpp.

References drawPointNC(), geomTfrmRevArb(), getPxColorInterpolate(), isCliped(), numPixX, numPixY, ramCanvasTpl(), mjr::point2d< coordT >::x, and mjr::point2d< coordT >::y.

Referenced by geomTfrmRevArb().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ convolution() [1/3]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::convolution	(	double *	kernel,
		int	kWide,
		int	kTall,
		double	divisor )

Apply a convolution filter.

The implementation for this method is quite naive and super slow! Frankly, this kind of functionality is beyond the scope of this library; however, sometimes you just need a convolution filter and you don't want to go to the extra effort of using yet another external library. Pixels outside the canvas are considered black.

Parameters

kernel	The convolution kernel. Must be of length kWide*kTall.
kWide	The width of the kernel. Must be odd.
kTall	The height of the kernel. Must be odd.
divisor	Used to normalize dot product at each step. i.e. one might say the kernel for the convolution is really kernel/divisor.

Definition at line 4301 of file ramCanvasTpl.hpp.

References convolution(), getPxColor(), isCliped(), numPixX, numPixY, and rePointPixels().

Referenced by convolution(), convolution(), and convolution().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ convolution() [2/3]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::convolution	(	double *	kernel,
		int	kSize,
		double	divisor )

inline

Definition at line 4337 of file ramCanvasTpl.hpp.

References convolution().

Here is the call graph for this function:

◆ convolution() [3/3]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::convolution	(	double *	kernel,
		int	kSize )

inline

Definition at line 4344 of file ramCanvasTpl.hpp.

References convolution().

Here is the call graph for this function:

◆ computeConvolutionMatrixGausian()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::computeConvolutionMatrixGausian	(	double *	kernel,
		int	kSize,
		double	sd )

Compute a Gaussian convolution kernel (use with divisor==1.0).

Parameters

kernel	Pointer to space for the convolution kernel. Must have at least space for kSize*kSize doubles
kSize	The width and height of the kernel. Must be odd.
sd	The standard deviation.

Definition at line 4276 of file ramCanvasTpl.hpp.

References computeConvolutionMatrixGausian().

Referenced by computeConvolutionMatrixGausian().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeConvolutionMatrixBox()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::computeConvolutionMatrixBox	(	double *	kernel,
		int	kSize )

Compute a box blur convolution kernel (use with divisor==1.0).

Parameters

kernel	Pointer to space for the convolution kernel. Must have at least space for kSize*kSize doubles
kSize	The width and height of the kernel. Must be odd.

Definition at line 4291 of file ramCanvasTpl.hpp.

References computeConvolutionMatrixBox().

Referenced by computeConvolutionMatrixBox().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ begin()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

colorT * mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::begin ( )

inline

Definition at line 793 of file ramCanvasTpl.hpp.

◆ end()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

colorT * mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::end ( )

inline

Definition at line 794 of file ramCanvasTpl.hpp.

◆ applyHomoPixTfrm() [1/15]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::applyHomoPixTfrm ( colorT &(colorT::* HPT )() )

inline

Apply a homogeneous pixel transformation.

Homogeneous pixel transformations don't vary based upon the coordinates of the pixel in question, but depend only upon the value of the pixel. Thus, a homogeneous pixel transformation can be considered as a pixel function applied to each pixel in an image. Many standard pixel functions are defined within the colorT object. The ramCanvasTpl object must then only apply the methods available within each colorT class to support most of the standard homogeneous pixel transformations. Additionally, new functions are automatically available to the ramCanvasTpl (both in the colorT class and new functions from other sources).

Definition at line 2252 of file ramCanvasTpl.hpp.

References applyHomoPixTfrm(), getPxColorRefNC(), numPixX, and numPixY.

Referenced by applyHomoPixTfrm(), applyHomoPixTfrm(), applyHomoPixTfrm(), applyHomoPixTfrm(), applyHomoPixTfrm(), applyHomoPixTfrm(), applyHomoPixTfrm(), applyHomoPixTfrm(), applyHomoPixTfrm(), applyHomoPixTfrm(), applyHomoPixTfrm(), applyHomoPixTfrm(), applyHomoPixTfrm(), applyHomoPixTfrm(), applyHomoPixTfrm(), autoHistStrech(), and autoMaxHistStrechRGB().

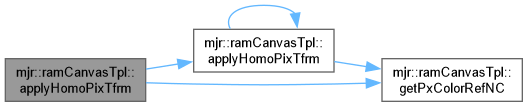

Here is the call graph for this function:

Here is the caller graph for this function:

◆ applyHomoPixTfrm() [2/15]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::applyHomoPixTfrm	(	colorT &(colorT::*	HPT )(double),
		double	arg1 )

inline

Definition at line 2342 of file ramCanvasTpl.hpp.

References applyHomoPixTfrm(), getPxColorRefNC(), numPixX, and numPixY.

Here is the call graph for this function:

◆ applyHomoPixTfrm() [3/15]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::applyHomoPixTfrm	(	colorT &(colorT::*	HPT )(double, double),
		double	arg1,
		double	arg2 )

inline

Definition at line 2352 of file ramCanvasTpl.hpp.

References applyHomoPixTfrm(), getPxColorRefNC(), numPixX, and numPixY.

Here is the call graph for this function:

◆ applyHomoPixTfrm() [4/15]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::applyHomoPixTfrm	(	colorT &(colorT::*	HPT )(double, double, double),
		double	arg1,
		double	arg2,
		double	arg3 )

inline

Definition at line 2362 of file ramCanvasTpl.hpp.

References applyHomoPixTfrm(), getPxColorRefNC(), numPixX, and numPixY.

Here is the call graph for this function:

◆ applyHomoPixTfrm() [5/15]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::applyHomoPixTfrm	(	colorT &(colorT::*	HPT )(double, double, double, double),
		double	arg1,
		double	arg2,
		double	arg3,
		double	arg4 )

inline

Definition at line 2372 of file ramCanvasTpl.hpp.

References applyHomoPixTfrm(), getPxColorRefNC(), numPixX, and numPixY.

Here is the call graph for this function:

◆ applyHomoPixTfrm() [6/15]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::applyHomoPixTfrm	(	colorT &(colorT::*	HPT )(double, double, double, double, double),
		double	arg1,
		double	arg2,
		double	arg3,
		double	arg4,
		double	arg5 )

inline

Definition at line 2383 of file ramCanvasTpl.hpp.

References applyHomoPixTfrm(), getPxColorRefNC(), numPixX, and numPixY.

Here is the call graph for this function:

◆ applyHomoPixTfrm() [7/15]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::applyHomoPixTfrm	(	colorT &(colorT::*	HPT )(double, double, double, double, double, double),
		double	arg1,
		double	arg2,
		double	arg3,
		double	arg4,
		double	arg5,
		double	arg6 )

inline

Definition at line 2393 of file ramCanvasTpl.hpp.

References applyHomoPixTfrm(), getPxColorRefNC(), numPixX, and numPixY.

Here is the call graph for this function:

◆ applyHomoPixTfrm() [8/15]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::applyHomoPixTfrm	(	colorT &(colorT::*	HPT )(int),
		int	arg1 )

inline

Definition at line 2302 of file ramCanvasTpl.hpp.

References applyHomoPixTfrm(), getPxColorRefNC(), numPixX, and numPixY.

Here is the call graph for this function:

◆ applyHomoPixTfrm() [9/15]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::applyHomoPixTfrm	(	colorT &(colorT::*	HPT )(int, int),
		int	arg1,
		int	arg2 )

inline

Definition at line 2312 of file ramCanvasTpl.hpp.

References applyHomoPixTfrm(), getPxColorRefNC(), numPixX, and numPixY.

Here is the call graph for this function:

◆ applyHomoPixTfrm() [10/15]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::applyHomoPixTfrm	(	colorT &(colorT::*	HPT )(int, int, int),
		int	arg1,
		int	arg2,
		int	arg3 )

inline

Definition at line 2322 of file ramCanvasTpl.hpp.

References applyHomoPixTfrm(), getPxColorRefNC(), numPixX, and numPixY.

Here is the call graph for this function:

◆ applyHomoPixTfrm() [11/15]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::applyHomoPixTfrm	(	colorT &(colorT::*	HPT )(int, int, int, int),
		int	arg1,
		int	arg2,
		int	arg3,
		int	arg4 )

inline

Definition at line 2332 of file ramCanvasTpl.hpp.

References applyHomoPixTfrm(), getPxColorRefNC(), numPixX, and numPixY.

Here is the call graph for this function:

◆ applyHomoPixTfrm() [12/15]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::applyHomoPixTfrm	(	colorT &(colorT::*	HPT )(colorT),
		colorT	arg1 )

inline

Definition at line 2262 of file ramCanvasTpl.hpp.

References applyHomoPixTfrm(), getPxColorRefNC(), numPixX, and numPixY.

Here is the call graph for this function:

◆ applyHomoPixTfrm() [13/15]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::applyHomoPixTfrm	(	colorT &(colorT::*	HPT )(colorT, colorT),
		colorT	arg1,
		colorT	arg2 )

inline

Definition at line 2272 of file ramCanvasTpl.hpp.

References applyHomoPixTfrm(), getPxColorRefNC(), numPixX, and numPixY.

Here is the call graph for this function:

◆ applyHomoPixTfrm() [14/15]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::applyHomoPixTfrm	(	colorT &(colorT::*	HPT )(colorT, colorT, colorT),
		colorT	arg1,
		colorT	arg2,
		colorT	arg3 )

inline

Definition at line 2282 of file ramCanvasTpl.hpp.

References applyHomoPixTfrm(), getPxColorRefNC(), numPixX, and numPixY.

Here is the call graph for this function:

◆ applyHomoPixTfrm() [15/15]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::applyHomoPixTfrm	(	colorT &(colorT::*	HPT )(colorT, colorT, colorT, colorT),
		colorT	arg1,
		colorT	arg2,
		colorT	arg3,
		colorT	arg4 )

inline

Definition at line 2292 of file ramCanvasTpl.hpp.

References applyHomoPixTfrm(), getPxColorRefNC(), numPixX, and numPixY.

Here is the call graph for this function:

◆ applyPixelRefFun()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::applyPixelRefFun ( colorT::cr2voidType f )

inline

Apply a a function to a each pixel via refrence.

Definition at line 2242 of file ramCanvasTpl.hpp.

References applyPixelRefFun(), getPxColorRefNC(), numPixX, and numPixY.

Referenced by applyPixelRefFun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ autoHistStrech()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::autoHistStrech ( )

Computes a linear grey level scale homogeneous pixel transformation.

f(c)=(c-cmin)*maxChanVal/(cmax-cmin) where cmin is the lowest integer value assumed by any pixel color component and cmax is the largest integer value assumed by any pixel color component. This function is sometimes called "auto contrast adjust" or "linear auto contrast adjust".

Definition at line 2190 of file ramCanvasTpl.hpp.

References applyHomoPixTfrm(), autoHistStrech(), getPxColorNC(), numPixX, and numPixY.

Referenced by autoHistStrech().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ autoMaxHistStrechRGB()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::autoMaxHistStrechRGB ( )

Computes a, possibly different, linear grey level scale homogeneous pixel transformation on each channel of the image.

Channel n is transformed such that f_n(c)=(c-cmin_n)*maxChanVal/(cmax_n-cmin_n) where cmin_n and cmax_n are the minimum and maximum values in channel n. i.e. this is the same as applying autoHistStrech independently to each channel.

Definition at line 2215 of file ramCanvasTpl.hpp.

References applyHomoPixTfrm(), autoMaxHistStrechRGB(), getPxColorNC(), numPixX, and numPixY.

Referenced by autoMaxHistStrechRGB().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ combineRamCanvasBinOp()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::combineRamCanvasBinOp	(	colorT &(colorT::*	HPT )(colorT),
		const ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > &	theCanvas,
		intCrdT	trgX = 0,
		intCrdT	trgY = 0,
		intCrdT	wide = -1,
		intCrdT	tall = -1,
		intCrdT	srcX = 0,
		intCrdT	srcY = 0 )

inline

This function takes a ramCanvasTpl and combines it with the current ramCanvasTpl using the provided binary operator.

Parameters

HPT	Pointer to a binary operator.
theCanvas	This is the ramCanvasTpl to combine with.
trgX	Final X coordinate for the left of the combined region. Default: 0
trgY	Final Y coordinate for the top of the combined region. Default: 0
srcX	Left edge of the region to combine with. Default: 0
srcY	Top edge of the region to combine with. Default: 0
wide	Width of the region to combine with. Default: -1 (indicates to edge of canvas)
tall	Height of the region to combine with. Default: -1 (indicates to edge of canvas)

Definition at line 2403 of file ramCanvasTpl.hpp.

References combineRamCanvasBinOp(), getNumPixX(), getNumPixY(), getPxColor(), getPxColorRefNC(), numPixX, numPixY, and ramCanvasTpl().

Referenced by combineRamCanvasBinOp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ combineRamCanvasMean()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::combineRamCanvasMean	(	ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes > *	theCanvasList,
		const int	N )

Take a list of ramCanvasTpl objects and combine them with the current ramCanvasTpl using mean.

Parameters

theCanvasList	This is the array of ramCanvasTpl's to combine with.
N	The number of canvas objects.

◆ clrCanvasToBlack()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::clrCanvasToBlack ( )

inline

Clear the canvas to black.

Faster than clrCanvas().

Definition at line 2134 of file ramCanvasTpl.hpp.

References clrCanvasToBlack(), getPxColorRefNC(), numPixX, and numPixY.

Referenced by clrCanvasToBlack(), and ramCanvasTpl().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clrCanvasToWhite()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::clrCanvasToWhite ( )

inline

Clear the canvas to black.

Faster than clrCanvas().

Definition at line 2162 of file ramCanvasTpl.hpp.

References clrCanvasToWhite(), getPxColorRefNC(), numPixX, and numPixY.

Referenced by clrCanvasToWhite().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clrCanvasChannelToMin()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::clrCanvasChannelToMin ( int chan )

inline

Set the given channel to the minimum value.

Definition at line 2114 of file ramCanvasTpl.hpp.

References clrCanvasChannelToMin(), getPxColorRefNC(), numPixX, and numPixY.

Referenced by clrCanvasChannelToMin().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clrCanvasChannelToMax()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::clrCanvasChannelToMax ( int chan )

inline

Set the given channel to the maximum value.

Definition at line 2124 of file ramCanvasTpl.hpp.

References clrCanvasChannelToMax(), getPxColorRefNC(), numPixX, and numPixY.

Referenced by clrCanvasChannelToMax().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clrCanvas() [1/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::clrCanvas ( )

inline

Clear the canvas.

Definition at line 2172 of file ramCanvasTpl.hpp.

References clrCanvas(), and dfltColor.

Referenced by clrCanvas(), and clrCanvas().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clrCanvas() [2/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::clrCanvas ( colorArgType color )

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 2180 of file ramCanvasTpl.hpp.

References clrCanvas(), drawPointS(), numPixX, and numPixY.

Here is the call graph for this function:

◆ moveTo() [1/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::moveTo	(	intCrdT	x,
		intCrdT	y )

inline

Set the current default point to the given coordinates.

Parameters

x	The x coordinate of the point to move to.
y	The y coordinate of the point to move to.

Definition at line 907 of file ramCanvasTpl.hpp.

Referenced by drawHersheyGlyph(), and drawLine().

Here is the caller graph for this function:

◆ moveTo() [2/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::moveTo	(	fltCrdT	x,
		fltCrdT	y )

inline

Definition at line 908 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::moveTo().

Here is the caller graph for this function:

◆ moveTo() [3/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::moveTo ( pointIntType thePoint )

inline

Definition at line 909 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::moveTo().

Here is the caller graph for this function:

◆ moveTo() [4/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::moveTo ( pointFltType thePoint )

inline

Definition at line 910 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::moveTo().

Here is the caller graph for this function:

◆ setDfltColor() [1/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::setDfltColor ( colorArgType color )

inline

Set the default color.

Definition at line 918 of file ramCanvasTpl.hpp.

◆ setDfltColor() [2/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::setDfltColor ( std::string cornerColor )

inline

Definition at line 919 of file ramCanvasTpl.hpp.

◆ setDfltColor() [3/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::setDfltColor ( const char * cornerColor )

inline

Definition at line 920 of file ramCanvasTpl.hpp.

◆ setDfltColor() [4/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::setDfltColor	(	colorChanType	r,
		colorChanType	g,
		colorChanType	b )

inline

Definition at line 921 of file ramCanvasTpl.hpp.

◆ drawPoint() [1/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPoint	(	intCrdT	x,
		intCrdT	y,
		colorArgType	color )

inline

Draw a point at the specified coordinates with the specified color.

Overloaded versions exist with various arguments.

Parameters

x	The x coordinate of the point
y	The y coordinate of the point
color	The color to draw the point

Definition at line 933 of file ramCanvasTpl.hpp.

Referenced by colorizeFltCanvas(), colorizeFltCanvas(), colorizeIntCanvas(), colorizeIntCanvas(), drawCircle(), drawLine(), and main().

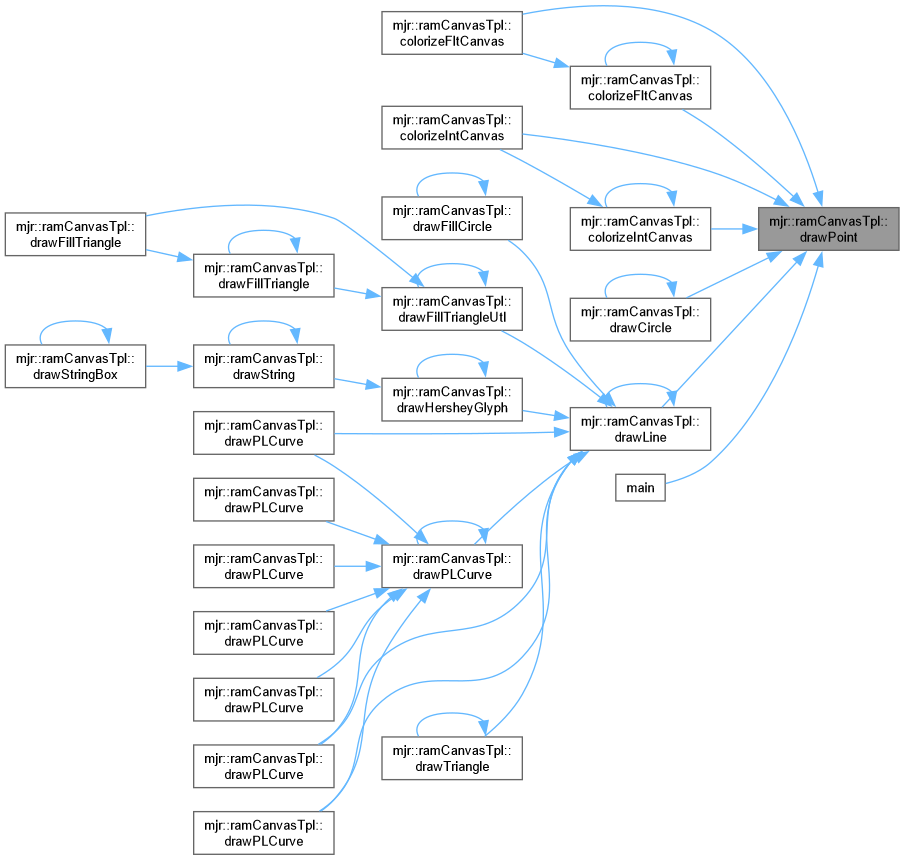

Here is the caller graph for this function:

◆ drawPoint() [2/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPoint ( )

inline

Definition at line 937 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawPoint().

Here is the caller graph for this function:

◆ drawPoint() [3/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPoint ( colorArgType color )

inline

Definition at line 938 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawPoint().

Here is the caller graph for this function:

◆ drawPoint() [4/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPoint	(	intCrdT	x,
		intCrdT	y )

inline

Definition at line 939 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawPoint().

Here is the caller graph for this function:

◆ drawPoint() [5/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPoint	(	fltCrdT	x,
		fltCrdT	y )

inline

Definition at line 940 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawPoint().

Here is the caller graph for this function:

◆ drawPoint() [6/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPoint	(	fltCrdT	x,
		fltCrdT	y,
		colorArgType	color )

inline

Definition at line 941 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawPoint().

Here is the caller graph for this function:

◆ drawPoint() [7/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPoint	(	pointIntType	thePoint,
		colorArgType	color )

inline

Definition at line 942 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawPoint().

Here is the caller graph for this function:

◆ drawPoint() [8/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPoint ( pointIntType thePoint )

inline

Definition at line 943 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawPoint().

Here is the caller graph for this function:

◆ drawPoint() [9/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPoint ( pointFltType thePoint )

inline

Definition at line 944 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawPoint().

Here is the caller graph for this function:

◆ drawPoint() [10/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPoint	(	pointFltType	thePoint,
		colorArgType	color )

inline

Definition at line 945 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawPoint().

Here is the caller graph for this function:

◆ tformPixel() [1/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::tformPixel	(	intCrdT	x,
		intCrdT	y,
		colorType::cr2voidType	tform )

inline

Transform the pixel at the specified coordinates.

Overloaded versions exist with various arguments.

Parameters

x	The x coordinate of the pixel
y	The y coordinate of the pixel
transform	The color to draw the pixel

Definition at line 964 of file ramCanvasTpl.hpp.

◆ tformPixel() [2/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::tformPixel	(	fltCrdT	x,
		fltCrdT	y,
		colorType::cr2voidType	tform )

inline

Definition at line 968 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::tformPixel().

Here is the caller graph for this function:

◆ tformPixel() [3/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::tformPixel	(	pointIntType	thePoint,
		colorType::cr2voidType	tform )

inline

Definition at line 969 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::tformPixel().

Here is the caller graph for this function:

◆ tformPixel() [4/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::tformPixel	(	pointFltType	thePoint,
		colorType::cr2voidType	tform )

inline

Definition at line 970 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::tformPixel().

Here is the caller graph for this function:

◆ incPxChan() [1/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

template<int chanNum = 0>
requires ((chanNum >= 0) && (chanNum < colorT::channelCount))

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::incPxChan	(	intCrdT	x,
		intCrdT	y,
		colorChanType	v = 1 )

inline

Increment the specified color channel of the pixel at the given coordinates by the specified value.

Overloaded versions exist with various arguments.

Parameters

x	The x coordinate of the point
y	The y coordinate of the point
v	The incriment value

Definition at line 989 of file ramCanvasTpl.hpp.

◆ incPxChan() [2/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

template<int chanNum = 0>
requires ((chanNum >= 0) && (chanNum < colorT::channelCount))

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::incPxChan	(	fltCrdT	x,
		fltCrdT	y,
		colorChanType	v = 1 )

inline

Definition at line 996 of file ramCanvasTpl.hpp.

◆ incPxChan() [3/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

template<int chanNum = 0>
requires ((chanNum >= 0) && (chanNum < colorT::channelCount))

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::incPxChan	(	pointIntType	thePoint,
		colorChanType	v = 1 )

inline

Definition at line 1004 of file ramCanvasTpl.hpp.

◆ incPxChan() [4/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

template<int chanNum = 0>
requires ((chanNum >= 0) && (chanNum < colorT::channelCount))

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::incPxChan	(	pointFltType	thePoint,
		colorChanType	v = 1 )

inline

Definition at line 1008 of file ramCanvasTpl.hpp.

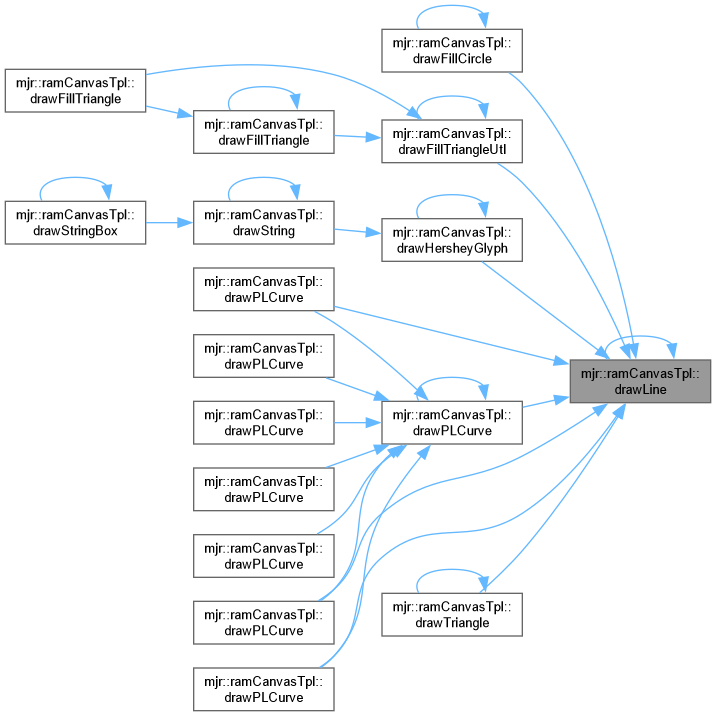

◆ drawLine() [1/16]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawLine	(	intCrdT	x1,
		intCrdT	y1,
		intCrdT	x2,
		intCrdT	y2,
		colorArgType	color )

Draw a line.

This function is optimized for speed, and has special code for handling lines of slope 0, 1, -1, and infinity. Line is clipped to the current canvas.

Parameters

x1	x coordinate of the first point
y1	y coordinate of the first point
x2	x coordinate of the second point
y2	y coordinate of the second point
color	The color to use

Performance Note: This function will perform better if (x1,y2) and (x2,y2) are in the clip region. Further x1<x2 will save several steps in the algorithm.

Algorithm Notes: This function treats lines of slope 0, 1, -1, and infinity as special cases. Special clipping and drawing algorithms are used for each case. All other lines are broken up into four classes by slope: 0<m<1, 1<m<infinity, -1<m<0, and -infinity<m<-1. Separate line clipping algorithms are used for positive slope lines and for negative slope lines.

The algorithms used to draw lines in the last four cases are related to the classic algorithm presented by Bresenham in 1965 and the extensions to Bresenham's algorithm given by Pitteway in 1967 and Van Aken in 1984. The basic algorithm described by Bresenham, Pitteway, and Van Aken is known as the "Midpoint Algorithm". For the case 0<m<1, the algorithm used is actually the midpoint algorithm, and the remaining cases are obvious extensions to the midpoint algorithm. Each case is customized and optimized for the given slope class.

The clipping algorithm used for the last slope classes is similar in spirit to the Cohen-Sutherland Line-Clipping algorithm, but is optimized for each slope class. Several pre-checks are made in order to avoid the slope computations in the Cohen-Sutherland algorithm – in fact intersections are only computed if absolutely required. Note that the only floating point computations in this function are the intersection computations, and they will be avoided completely if the given line need not be clipped.

Definition at line 2443 of file ramCanvasTpl.hpp.

References drawHorzLineNC(), drawLine(), drawPoint(), drawPointNC(), drawVertLineNC(), moveTo(), numPixX, and numPixY.

Referenced by drawFillCircle(), drawFillTriangleUtl(), drawHersheyGlyph(), drawLine(), drawPLCurve(), drawPLCurve(), drawPLCurve(), drawPLCurve(), and drawTriangle().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ drawLine() [2/16]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawLine ( pointFltType point1 )

inline

Definition at line 1043 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawLine().

Here is the caller graph for this function:

◆ drawLine() [3/16]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawLine	(	pointFltType	point1,
		colorArgType	color )

inline

Definition at line 1044 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawLine().

Here is the caller graph for this function:

◆ drawLine() [4/16]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawLine ( pointIntType point1 )

inline

Definition at line 1045 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawLine().

Here is the caller graph for this function:

◆ drawLine() [5/16]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawLine	(	pointIntType	point1,
		colorArgType	color )

inline

Definition at line 1046 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawLine().

Here is the caller graph for this function:

◆ drawLine() [6/16]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawLine	(	pointFltType	point1,
		pointFltType	point2 )

inline

Definition at line 1047 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawLine().

Here is the caller graph for this function:

◆ drawLine() [7/16]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawLine	(	pointFltType	point1,
		pointFltType	point2,
		colorArgType	color )

inline

Definition at line 1048 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawLine().

Here is the caller graph for this function:

◆ drawLine() [8/16]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawLine	(	pointIntType	point1,
		pointIntType	point2 )

inline

Definition at line 1049 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawLine().

Here is the caller graph for this function:

◆ drawLine() [9/16]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawLine	(	pointIntType	point1,
		pointIntType	point2,
		colorArgType	color )

inline

Definition at line 1050 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawLine().

Here is the caller graph for this function:

◆ drawLine() [10/16]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawLine	(	intCrdT	x,
		intCrdT	y )

inline

Definition at line 1051 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawLine().

Here is the caller graph for this function:

◆ drawLine() [11/16]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawLine	(	fltCrdT	x,
		fltCrdT	y )

inline

Definition at line 1052 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawLine().

Here is the caller graph for this function:

◆ drawLine() [12/16]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawLine	(	intCrdT	x,
		intCrdT	y,
		colorArgType	color )

inline

Definition at line 1053 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawLine().

Here is the caller graph for this function:

◆ drawLine() [13/16]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawLine	(	fltCrdT	x,
		fltCrdT	y,
		colorArgType	color )

inline

Definition at line 1054 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawLine().

Here is the caller graph for this function:

◆ drawLine() [14/16]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawLine	(	intCrdT	x1,
		intCrdT	y1,
		intCrdT	x2,
		intCrdT	y2 )

inline

Definition at line 1055 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawLine().

Here is the caller graph for this function:

◆ drawLine() [15/16]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawLine	(	fltCrdT	x1,
		fltCrdT	y1,
		fltCrdT	x2,
		fltCrdT	y2 )

inline

Definition at line 1056 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawLine().

Here is the caller graph for this function:

◆ drawLine() [16/16]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawLine	(	fltCrdT	x1,
		fltCrdT	y1,
		fltCrdT	x2,
		fltCrdT	y2,
		colorArgType	color )

inline

Definition at line 1057 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawLine().

Here is the caller graph for this function:

◆ drawTriangle() [1/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawTriangle	(	intCrdT	x1,
		intCrdT	y1,
		intCrdT	x2,
		intCrdT	y2,
		intCrdT	x3,
		intCrdT	y3,
		colorArgType	color )

inline

Draw an un-filled triangle.

Bug: Some pixels may be drawn more than once.

Parameters

x1	The x coordinate of the first point
y1	The y coordinate of the first point
x2	The x coordinate of the second point
y2	The y coordinate of the second point
x3	The x coordinate of the third point
y3	The y coordinate of the third point
color	The color to use for the triangle

Definition at line 4005 of file ramCanvasTpl.hpp.

References drawLine(), and drawTriangle().

Referenced by drawTriangle().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ drawTriangle() [2/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawTriangle	(	pointIntType *	thePoints,
		colorArgType	color )

inline

Definition at line 1074 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawTriangle().

Here is the caller graph for this function:

◆ drawTriangle() [3/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawTriangle ( pointFltType * thePoints )

inline

Definition at line 1075 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawTriangle().

Here is the caller graph for this function:

◆ drawTriangle() [4/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawTriangle	(	pointFltType *	thePoints,
		colorArgType	color )

inline

Definition at line 1078 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawTriangle().

Here is the caller graph for this function:

◆ drawTriangle() [5/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawTriangle ( pointIntType * thePoints )

inline

Definition at line 1081 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawTriangle().

Here is the caller graph for this function:

◆ drawTriangle() [6/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawTriangle	(	pointIntType	point1,
		pointIntType	point2,
		pointIntType	point3 )

inline

Definition at line 1082 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawTriangle().

Here is the caller graph for this function:

◆ drawTriangle() [7/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawTriangle	(	pointFltType	point1,
		pointFltType	point2,
		pointFltType	point3 )

inline

Definition at line 1083 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawTriangle().

Here is the caller graph for this function:

◆ drawTriangle() [8/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawTriangle	(	pointFltType	point1,
		pointFltType	point2,
		pointFltType	point3,
		colorArgType	color )

inline

Definition at line 1086 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawTriangle().

Here is the caller graph for this function:

◆ drawTriangle() [9/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawTriangle	(	pointIntType	point1,
		pointIntType	point2,
		pointIntType	point3,
		colorArgType	color )

inline

Definition at line 1089 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawTriangle().

Here is the caller graph for this function:

◆ drawTriangle() [10/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawTriangle	(	fltCrdT	x1,
		fltCrdT	y1,
		fltCrdT	x2,
		fltCrdT	y2,
		fltCrdT	x3,
		fltCrdT	y3 )

inline

Definition at line 1090 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawTriangle().

Here is the caller graph for this function:

◆ drawTriangle() [11/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawTriangle	(	fltCrdT	x1,
		fltCrdT	y1,
		fltCrdT	x2,
		fltCrdT	y2,
		fltCrdT	x3,
		fltCrdT	y3,
		colorArgType	color )

inline

Definition at line 1091 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawTriangle().

Here is the caller graph for this function:

◆ drawTriangle() [12/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawTriangle	(	intCrdT	x1,
		intCrdT	y1,
		intCrdT	x2,
		intCrdT	y2,
		intCrdT	x3,
		intCrdT	y3 )

inline

Definition at line 1092 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawTriangle().

Here is the caller graph for this function:

◆ drawFillTriangle() [1/13]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillTriangle	(	intCrdT	x1,
		intCrdT	y1,
		intCrdT	x2,
		intCrdT	y2,
		intCrdT	x3,
		intCrdT	y3,
		colorArgType	color )

inline

Draw a triangle filled with a solid color using a nicely optimized, horizontal scan conversion algorithm.

Bug

Triangles not entirely on the canvas are not rendered.

Not thread safe.

Parameters

x1	The x coordinate of the first point
y1	The y coordinate of the first point
x2	The x coordinate of the second point
y2	The y coordinate of the second point
x3	The x coordinate of the third point
y3	The y coordinate of the third point
color	The color to use for the triangle

Definition at line 3754 of file ramCanvasTpl.hpp.

References drawFillTriangle(), and drawFillTriangleUtl().

Referenced by drawFillTriangle(), and drawFillTriangle().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ drawFillTriangle() [2/13]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillTriangle	(	pointIntType *	thePoints,
		colorArgType	color )

inline

Definition at line 1110 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillTriangle().

Here is the caller graph for this function:

◆ drawFillTriangle() [3/13]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillTriangle ( pointFltType * thePoints )

inline

Definition at line 1111 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillTriangle().

Here is the caller graph for this function:

◆ drawFillTriangle() [4/13]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillTriangle	(	pointFltType *	thePoints,
		colorArgType	color )

inline

Definition at line 1114 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillTriangle().

Here is the caller graph for this function:

◆ drawFillTriangle() [5/13]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillTriangle ( pointIntType * thePoints )

inline

Definition at line 1117 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillTriangle().

Here is the caller graph for this function:

◆ drawFillTriangle() [6/13]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillTriangle	(	pointIntType	point1,
		pointIntType	point2,
		pointIntType	point3 )

inline

Definition at line 1120 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillTriangle().

Here is the caller graph for this function:

◆ drawFillTriangle() [7/13]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillTriangle	(	pointFltType	point1,
		pointFltType	point2,
		pointFltType	point3 )

inline

Definition at line 1121 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillTriangle().

Here is the caller graph for this function:

◆ drawFillTriangle() [8/13]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillTriangle	(	pointFltType	point1,
		pointFltType	point2,
		pointFltType	point3,
		colorArgType	color )

inline

Definition at line 1124 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillTriangle().

Here is the caller graph for this function:

◆ drawFillTriangle() [9/13]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillTriangle	(	pointIntType	point1,
		pointIntType	point2,
		pointIntType	point3,
		colorArgType	color )

inline

Definition at line 1127 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillTriangle().

Here is the caller graph for this function:

◆ drawFillTriangle() [10/13]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillTriangle	(	fltCrdT	x1,
		fltCrdT	y1,
		fltCrdT	x2,
		fltCrdT	y2,
		fltCrdT	x3,
		fltCrdT	y3 )

inline

Definition at line 1128 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillTriangle().

Here is the caller graph for this function:

◆ drawFillTriangle() [11/13]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillTriangle	(	fltCrdT	x1,
		fltCrdT	y1,
		fltCrdT	x2,
		fltCrdT	y2,
		fltCrdT	x3,
		fltCrdT	y3,
		colorArgType	color )

inline

Definition at line 1129 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillTriangle().

Here is the caller graph for this function:

◆ drawFillTriangle() [12/13]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillTriangle	(	intCrdT	x1,
		intCrdT	y1,
		intCrdT	x2,
		intCrdT	y2,
		intCrdT	x3,
		intCrdT	y3 )

inline

Definition at line 1130 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillTriangle().

Here is the caller graph for this function:

◆ drawFillTriangle() [13/13]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillTriangle	(	intCrdT	x1,
		intCrdT	y1,
		intCrdT	x2,
		intCrdT	y2,
		intCrdT	x3,
		intCrdT	y3,
		colorArgType	color1,
		colorArgType	color2,
		colorArgType	color3 )

inline

Draw a filled triangle using barycentric color interpolation.

Bug

Triangles not entirely on the canvas are not rendered.

Degenerate trainagles are not rendered

Painfully slow

Parameters

x1	The x coordinate of the first point
y1	The y coordinate of the first point
x2	The x coordinate of the second point
y2	The y coordinate of the second point
x3	The x coordinate of the third point
y3	The y coordinate of the third point
color1	The color of the first point (x1, y1)
color2	The color of the second point (x2, y2)
color3	The color of the third point (x3, y3)

Definition at line 3762 of file ramCanvasTpl.hpp.

References drawFillTriangle(), and drawFillTriangleUtl().

Here is the call graph for this function:

◆ drawRectangle() [1/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawRectangle	(	intCrdT	x1,
		intCrdT	y1,
		intCrdT	x2,
		intCrdT	y2,
		colorArgType	color )

Draw an unfilled rectangle with diagonal corners located at (x1, y1) and and (x2, y2).

Best performance will be achieved if (x1, y1) is the upper left corner, and (x2,y2) is the lower left corner and both (x1,y1) and (x2,y2) are within the bounds of the canvas using the specified color.

Parameters

x1	The x coordinate of first corner
y1	The y coordinate of first corner
x2	The x coordinate of second corner
y2	The y coordinate of second corner
color	The color to use

Definition at line 4112 of file ramCanvasTpl.hpp.

References drawHorzLineNC(), drawRectangle(), drawVertLineNC(), numPixX, and numPixY.

Referenced by drawRectangle().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ drawRectangle() [2/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawRectangle	(	pointIntType	point1,
		pointIntType	point2,
		colorArgType	color )

inline

Definition at line 1166 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawRectangle().

Here is the caller graph for this function:

◆ drawRectangle() [3/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawRectangle	(	pointIntType	point1,
		pointIntType	point2 )

inline

Definition at line 1167 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawRectangle().

Here is the caller graph for this function:

◆ drawRectangle() [4/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawRectangle	(	pointFltType	point1,
		pointFltType	point2,
		colorArgType	color )

inline

Definition at line 1168 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawRectangle().

Here is the caller graph for this function:

◆ drawRectangle() [5/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawRectangle	(	pointFltType	point1,
		pointFltType	point2 )

inline

Definition at line 1169 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawRectangle().

Here is the caller graph for this function:

◆ drawRectangle() [6/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawRectangle	(	pointIntType *	thePoints,
		colorArgType	color )

inline

Definition at line 1170 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawRectangle().

Here is the caller graph for this function:

◆ drawRectangle() [7/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawRectangle ( pointFltType * thePoints )

inline

Definition at line 1171 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawRectangle().

Here is the caller graph for this function:

◆ drawRectangle() [8/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawRectangle	(	pointFltType *	thePoints,
		colorArgType	color )

inline

Definition at line 1172 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawRectangle().

Here is the caller graph for this function:

◆ drawRectangle() [9/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawRectangle ( pointIntType * thePoints )

inline

Definition at line 1173 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawRectangle().

Here is the caller graph for this function:

◆ drawRectangle() [10/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawRectangle	(	fltCrdT	x1,
		fltCrdT	y1,
		fltCrdT	x2,
		fltCrdT	y2 )

inline

Definition at line 1174 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawRectangle().

Here is the caller graph for this function:

◆ drawRectangle() [11/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawRectangle	(	fltCrdT	x1,
		fltCrdT	y1,
		fltCrdT	x2,
		fltCrdT	y2,
		colorArgType	color )

inline

Definition at line 1175 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawRectangle().

Here is the caller graph for this function:

◆ drawRectangle() [12/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawRectangle	(	intCrdT	x1,
		intCrdT	y1,
		intCrdT	x2,
		intCrdT	y2 )

inline

Definition at line 1176 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawRectangle().

Here is the caller graph for this function:

◆ drawFillRectangle() [1/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillRectangle	(	intCrdT	x1,
		intCrdT	y1,
		intCrdT	x2,
		intCrdT	y2,
		colorArgType	color )

inline

Draw a filled rectangle with diagonal corners located at (x1, y1) and and (x2, y2).

Best performance will be achieved if (x1, y1) is the upper left corner, and (x2,y2) is the lower left corner and both (x1,y1) and (x2,y2) are within the bounds of the canvas using the specified color.

Parameters

x1	The x coordinate of first corner
y1	The y coordinate of first corner
x2	The x coordinate of second corner
y2	The y coordinate of second corner
color	The color to use

Definition at line 4143 of file ramCanvasTpl.hpp.

References drawFillRectangle(), drawHorzLineNC(), numPixX, and numPixY.

Referenced by drawFillRectangle(), and drawStringBox().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ drawFillRectangle() [2/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillRectangle	(	pointIntType	point1,
		pointIntType	point2,
		colorArgType	color )

inline

Definition at line 1192 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillRectangle().

Here is the caller graph for this function:

◆ drawFillRectangle() [3/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillRectangle	(	pointIntType	point1,
		pointIntType	point2 )

inline

Definition at line 1193 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillRectangle().

Here is the caller graph for this function:

◆ drawFillRectangle() [4/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillRectangle	(	pointFltType	point1,
		pointFltType	point2,
		colorArgType	color )

inline

Definition at line 1194 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillRectangle().

Here is the caller graph for this function:

◆ drawFillRectangle() [5/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillRectangle	(	pointFltType	point1,
		pointFltType	point2 )

inline

Definition at line 1195 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillRectangle().

Here is the caller graph for this function:

◆ drawFillRectangle() [6/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillRectangle	(	pointIntType *	thePoints,
		colorArgType	color )

inline

Definition at line 1196 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillRectangle().

Here is the caller graph for this function:

◆ drawFillRectangle() [7/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillRectangle ( pointFltType * thePoints )

inline

Definition at line 1197 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillRectangle().

Here is the caller graph for this function:

◆ drawFillRectangle() [8/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillRectangle	(	pointFltType *	thePoints,
		colorArgType	color )

inline

Definition at line 1198 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillRectangle().

Here is the caller graph for this function:

◆ drawFillRectangle() [9/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillRectangle ( pointIntType * thePoints )

inline

Definition at line 1199 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillRectangle().

Here is the caller graph for this function:

◆ drawFillRectangle() [10/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillRectangle	(	fltCrdT	x1,
		fltCrdT	y1,
		fltCrdT	x2,
		fltCrdT	y2 )

inline

Definition at line 1200 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillRectangle().

Here is the caller graph for this function:

◆ drawFillRectangle() [11/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillRectangle	(	fltCrdT	x1,
		fltCrdT	y1,
		fltCrdT	x2,
		fltCrdT	y2,
		colorArgType	color )

inline

Definition at line 1201 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillRectangle().

Here is the caller graph for this function:

◆ drawFillRectangle() [12/12]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillRectangle	(	intCrdT	x1,
		intCrdT	y1,
		intCrdT	x2,
		intCrdT	y2 )

inline

Definition at line 1202 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillRectangle().

Here is the caller graph for this function:

◆ drawCircle() [1/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawCircle	(	intCrdT	centerX,
		intCrdT	centerY,
		intCrdT	radiusX,
		colorArgType	color )

Draw an un-filled circle.

The algorithm used is based upon the one presented in "A Linear Algorithm for Incremental Digital Display of Circular Arcs" published in the Communications of the AMC in Feb 1977 and written by J.E. Bresenham. Bresenham's algorithm has been significantly improved by using only integer arithmetic and adding second order differences to the computation – much the way the line drawing algorithm works in this package. The algorithm is essentially a scan line conversion algorithm, so the circle is always approximately one pixel thick. One subtle point: The real X and Y axes in this package can have different scaling. This means that one must pick a direction in which the radius will be measured in real coordinate deltas. In this function, that direction is along the X axis – i.e. the radius of the drawn circle will be measured horizontally. This function is well optimized.

Bug: Draws everyting even if it's off the canvas.

Parameters

centerX	The x coordinate of the center
centerY	The y coordinate of the center
radiusX	The radius of the circle
color	The color to draw the circle with

Definition at line 4015 of file ramCanvasTpl.hpp.

References drawCircle(), and drawPoint().

Referenced by drawCircle().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ drawCircle() [2/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawCircle ( intCrdT radiusX )

inline

Definition at line 1223 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawCircle().

Here is the caller graph for this function:

◆ drawCircle() [3/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawCircle ( fltCrdT radiusX )

inline

Definition at line 1224 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawCircle().

Here is the caller graph for this function:

◆ drawCircle() [4/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawCircle	(	pointFltType	centerPoint,
		fltCrdT	radiusX )

inline

Definition at line 1225 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawCircle().

Here is the caller graph for this function:

◆ drawCircle() [5/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawCircle	(	pointFltType	centerPoint,
		fltCrdT	radiusX,
		colorArgType	color )

inline

Definition at line 1226 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawCircle().

Here is the caller graph for this function:

◆ drawCircle() [6/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawCircle	(	pointIntType	centerPoint,
		intCrdT	radiusX )

inline

Definition at line 1227 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawCircle().

Here is the caller graph for this function:

◆ drawCircle() [7/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawCircle	(	pointIntType	centerPoint,
		intCrdT	radiusX,
		colorArgType	color )

inline

Definition at line 1228 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawCircle().

Here is the caller graph for this function:

◆ drawCircle() [8/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawCircle	(	fltCrdT	centerX,
		fltCrdT	centerY,
		fltCrdT	radiusX )

inline

Definition at line 1229 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawCircle().

Here is the caller graph for this function:

◆ drawCircle() [9/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawCircle	(	fltCrdT	centerX,
		fltCrdT	centerY,
		fltCrdT	radiusX,
		colorArgType	color )

inline

Definition at line 1230 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawCircle().

Here is the caller graph for this function:

◆ drawCircle() [10/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawCircle	(	intCrdT	centerX,
		intCrdT	centerY,
		intCrdT	radiusX )

inline

Definition at line 1231 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawCircle().

Here is the caller graph for this function:

◆ drawFillCircle() [1/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillCircle	(	intCrdT	centerX,
		intCrdT	centerY,
		intCrdT	radiusX,
		colorArgType	color )

Draw an un-filled circle.

The algorithm used to compute circle edge points is the same as that used in drawCircle; however, the algorithm used to fill the circle is of my own design. I doubt that it is new, but I have never come across it in my readings – not that I have looked too hard. The algorithm has the advantage that most of the interior points are only drawn one time. One subtle point: The real X and Y axes in this package can have different scaling. This means that one must pick a direction in which the radius will be measured in real coordinate deltas. In this function, that direction is along the X axis – i.e. the radius of the drawn circle will be measured horizontally. This function is well optimized.

Bug: Draws everyting even if it's off the canvas.

Parameters

centerX	The x coordinate of the center
centerY	The y coordinate of the center
radiusX	The radius of the circle
color	The color to draw the circle with

Definition at line 4059 of file ramCanvasTpl.hpp.

References drawFillCircle(), and drawLine().

Referenced by drawFillCircle().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ drawFillCircle() [2/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillCircle ( fltCrdT radiusX )

inline

Definition at line 1250 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillCircle().

Here is the caller graph for this function:

◆ drawFillCircle() [3/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillCircle ( intCrdT radiusX )

inline

Definition at line 1251 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillCircle().

Here is the caller graph for this function:

◆ drawFillCircle() [4/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillCircle	(	pointFltType	centerPoint,
		fltCrdT	radiusX,
		colorArgType	color )

inline

Definition at line 1252 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillCircle().

Here is the caller graph for this function:

◆ drawFillCircle() [5/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillCircle	(	pointFltType	centerPoint,
		fltCrdT	radiusX )

inline

Definition at line 1253 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillCircle().

Here is the caller graph for this function:

◆ drawFillCircle() [6/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillCircle	(	pointIntType	centerPoint,
		intCrdT	radiusX,
		colorArgType	color )

inline

Definition at line 1254 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillCircle().

Here is the caller graph for this function:

◆ drawFillCircle() [7/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillCircle	(	pointIntType	centerPoint,
		intCrdT	radiusX )

inline

Definition at line 1255 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillCircle().

Here is the caller graph for this function:

◆ drawFillCircle() [8/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillCircle	(	fltCrdT	centerX,
		fltCrdT	centerY,
		fltCrdT	radiusX )

inline

Definition at line 1256 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillCircle().

Here is the caller graph for this function:

◆ drawFillCircle() [9/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillCircle	(	fltCrdT	centerX,
		fltCrdT	centerY,
		fltCrdT	radiusX,
		colorArgType	color )

inline

Definition at line 1257 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillCircle().

Here is the caller graph for this function:

◆ drawFillCircle() [10/10]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawFillCircle	(	intCrdT	centerX,
		intCrdT	centerY,
		intCrdT	radiusX )

inline

Definition at line 1258 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawFillCircle().

Here is the caller graph for this function:

◆ drawPLCurve() [1/8]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPLCurve	(	int	numPoints,
		intCrdT *	x,
		intCrdT *	y,
		colorArgType	color )

inline

Draw Piece-Wise Linear Curves.

Bug: Some pixels may be drawn more than once.

Definition at line 3962 of file ramCanvasTpl.hpp.

References drawLine(), and drawPLCurve().

Referenced by drawPLCurve(), drawPLCurve(), drawPLCurve(), drawPLCurve(), drawPLCurve(), drawPLCurve(), drawPLCurve(), and drawPLCurve().

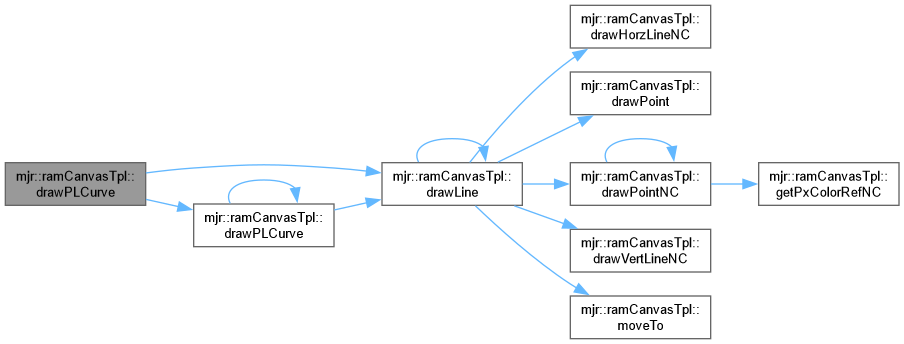

Here is the call graph for this function:

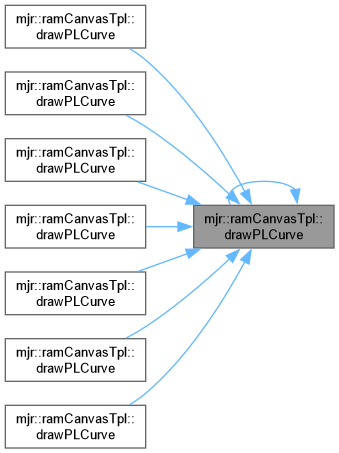

Here is the caller graph for this function:

◆ drawPLCurve() [2/8]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPLCurve	(	int	numPoints,
		intCrdT *	x,
		intCrdT *	y )

inline

Definition at line 3954 of file ramCanvasTpl.hpp.

References dfltColor, and drawPLCurve().

Here is the call graph for this function:

◆ drawPLCurve() [3/8]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPLCurve	(	int	numPoints,
		fltCrdT *	x,
		fltCrdT *	y,
		colorArgType	color )

inline

Definition at line 3945 of file ramCanvasTpl.hpp.

References drawLine(), drawPLCurve(), real2intX(), and real2intY().

Here is the call graph for this function:

◆ drawPLCurve() [4/8]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPLCurve	(	int	numPoints,
		fltCrdT *	x,
		fltCrdT *	y )

inline

Definition at line 3937 of file ramCanvasTpl.hpp.

References dfltColor, and drawPLCurve().

Here is the call graph for this function:

◆ drawPLCurve() [5/8]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPLCurve	(	int	numPoints,
		pointIntType *	thePoints,
		colorArgType	color )

inline

Definition at line 3971 of file ramCanvasTpl.hpp.

References drawLine(), and drawPLCurve().

Here is the call graph for this function:

◆ drawPLCurve() [6/8]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPLCurve	(	int	numPoints,
		pointIntType *	thePoints )

inline

Definition at line 3989 of file ramCanvasTpl.hpp.

References dfltColor, and drawPLCurve().

Here is the call graph for this function:

◆ drawPLCurve() [7/8]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPLCurve	(	int	numPoints,
		pointFltType *	thePoints,
		colorArgType	color )

inline

Definition at line 3980 of file ramCanvasTpl.hpp.

References drawLine(), and drawPLCurve().

Here is the call graph for this function:

◆ drawPLCurve() [8/8]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPLCurve	(	int	numPoints,
		pointFltType *	thePoints )

inline

Definition at line 3997 of file ramCanvasTpl.hpp.

References dfltColor, and drawPLCurve().

Here is the call graph for this function:

◆ drawHersheyGlyph() [1/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawHersheyGlyph	(	int	glyphNum,
		intCrdT	x,
		intCrdT	y,
		double	magX,
		double	magY,
		colorArgType	aColor )

Render a glyph from the Hershey character set.

The glyph is rendered with its origin at the given coordinates. This function is intended to provide only the most basic glyph rendering. For example, glyphs are rendered with the line drawing functions, and therefore are not anti-aliased.

Parameters

glyphNum	The character number of the glyph to render
x	The x coordinate at which to render the glyph
y	The x coordinate at which to render the glyph
magX	The magnification of the glyph in the x direction
magY	The magnification of the glyph in the y direction
aColor	The color with which to render the glyph

Definition at line 4352 of file ramCanvasTpl.hpp.

References mjr::hershey::chars, drawHersheyGlyph(), drawLine(), isIntAxOrientationNaturalX(), isIntAxOrientationNaturalY(), and moveTo().

Referenced by drawHersheyGlyph(), and drawString().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ drawHersheyGlyph() [2/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawHersheyGlyph	(	int	glyphNum,
		fltCrdT	x,
		fltCrdT	y,
		double	magX,
		double	magY,
		colorArgType	aColor )

inline

Definition at line 1292 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::drawHersheyGlyph().

Here is the caller graph for this function:

◆ drawString() [1/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawString	(	std::string	aString,
		mjr::hershey::font	aFont,
		intCrdT	x,
		intCrdT	y,
		colorArgType	aColor,
		double	cex,
		intCrdT	spc )

inline

Render a string using Hershey ASCII Fonts.

While the string is rendered with fixed font spacing, the Hershey fonts are not fixed width fonts.

Parameters

aString	The string
aFont	The font to set the default with
x	The x coordinate at which to render the first glyph
y	The x coordinate at which to render the first glyph
aColor	The color with which to render the glyphs
cex	A factor by which to expand the size of each glyph – 1 is a good value (the name comes from R).
spc	Space to jump for each charcter – 20 for SL fonts, 23 for DL fonts, and 25 for TL fonts. Scaled with cex.

Definition at line 4388 of file ramCanvasTpl.hpp.

References mjr::hershey::ascii2hershey, drawHersheyGlyph(), and drawString().

Referenced by drawString(), and drawStringBox().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ drawString() [2/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawString	(	std::string	aString,
		mjr::hershey::font	aFont,
		fltCrdT	x,
		fltCrdT	y,
		colorArgType	aColor,
		double	cex,
		intCrdT	spc )

inline

Definition at line 1310 of file ramCanvasTpl.hpp.

◆ drawStringBox() [1/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawStringBox	(	std::string	aString,
		mjr::hershey::font	aFont,
		intCrdT	x,
		intCrdT	y,
		colorArgType	stringColor,
		colorArgType	boxColor,
		double	cex,
		intCrdT	spc )

inline

Renders a filled, bounding box for the given string as rendered via drawString.

Parameters

aString	A string to render
aFont	The font to set the default with
x	The x coordinate at which to render the first glyph
y	The x coordinate at which to render the first glyph
stringColor	The color with which to render the glyphs
boxColor	The color with which to render the BOX
cex	A factor by which to expand the size of each glyph – 1 is a good value (the name comes from R).
spc	Space to jump for each charcter – 20 for SL fonts, 23 for DL fonts, and 25 for TL fonts. Scaled with cex.

Definition at line 4402 of file ramCanvasTpl.hpp.

References drawFillRectangle(), drawString(), and drawStringBox().

Referenced by drawStringBox().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ drawStringBox() [2/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawStringBox	(	std::string	aString,
		mjr::hershey::font	aFont,
		fltCrdT	x,
		fltCrdT	y,
		colorArgType	stringColor,
		colorArgType	boxColor,
		double	cex,
		intCrdT	spc )

inline

Definition at line 1324 of file ramCanvasTpl.hpp.

◆ supportLibTIFF()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

bool mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::supportLibTIFF ( )

inline

Is libTIFF supported – that is: will the readTIFFfile() method do anything?

Note that readTIFFfile() is the only method that needs libTIFF. In particular, writeTIFFfile() works without libTIFF.

Definition at line 4722 of file ramCanvasTpl.hpp.

References supportLibTIFF().

Referenced by supportLibTIFF().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readTIFFfile()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

int mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::readTIFFfile ( std::string fileName )

If the libTIFF library was found at build time, this function will read a TIFF file into current ramCanvas object.

If libTIFF is not supported, then this function returns 32. You can test if this method works via the supportLibTIFF() method.

Notable features:

Arbitrary TIFF image file types are converted to 24-bit RGB when aRamCanvas is of type ramCanvas3c8b
- Note aRamCanvas must be of type ramCanvas3c8b – ramCanvas4c8b is not good enough.
Reasonable conversions are made in other cases.
- if aRamCanvas has fewer channels than the TIFF file, then extra channels in the TIFF file are ignored
- if aRamCanvas has more channels than the TIFF file, then extra channels of aRamCanvas are set to black
- if aRamCanvas and the TIFF have different channel widths, then the TIFF data is scaled (TIFF data is assumed to be full scale. Max tags are ignored)
Some effort is taken to do the right thing with respect to aRamCanvas axis orientation

Parameters

fileName The file name from which to read data from.

Return values

0	Image file loaded successfully
1	File open (TIFFOpen) failure
2	File missing TIFF tag: IMAGEWIDTH
3	File missing TIFF tag: IMAGELENGTH
4	File missing TIFF tag: SAMPLESPERPIXEL
5	File missing TIFF tag: PLANARCONFIG
6	File missing TIFF tag: PHOTOMETRIC
7	File missing TIFF tag: BITSPERSAMPLE
8	File of zero width
9	File of zero height
10	Allocation failed (temp image buffer)
11	Read (TIFFReadRGBAImage) failure
12	Canvas Allocation failed (insufficient width)
14	Canvas Allocation failed (insufficient height)
15	TIFF bps not 8, 16, 32, or 64
16	Allocation failed (scan line buffer)
17	Read (TIFFReadScanline) failure
18	Sample Format is not unsigned integer or IEEE floating point
19	File and ramCanvas samples per pixel (channel count) differs
20	File and ramCanvas channel depth differ
21	File and ramCanvas channel format (int vs float) differ
22	Planar configuration is invalid (not 1 or 2)
23	Tiled images are not supported
24	PHOTOMETRIC_PALETTE not supported
32	TIFF read support not provided in this compile

Definition at line 4583 of file ramCanvasTpl.hpp.

References getNumPixX(), getNumPixY(), getPxColorRefNC(), isIntAxOrientationNaturalX(), isIntAxOrientationNaturalY(), readTIFFfile(), and resizeCanvas().

Referenced by readTIFFfile().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeTIFFfile() [1/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

template<class rcConT>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

int mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::writeTIFFfile	(	std::string	fileName,
		rcConT	pxFilter,
		bool	markAlpha = true )

inline

Write a TIFF format image file.

Respects integer coordinate system orientation.

Why TIFF? TIFF is both broadly supported and flexible enough to represent almost every ramCanvas image type perfectly.

Use Cases (In order of priority)

Write a bit perfect TIFF representation of ramCanvas images
Simultaneously convert any ramCanvas into 24-bit truecolor RGB and write the resulting TIFF
Do all the above while simultaneously applying a homogeneous image filter

Limitations

Channels must be no more than 64-bits wide
No more than 2^16-1 channels
Image width no more than 2^32-1 (normally intCrdT limits this to 2^31-1)
Image height no more than 2^32-1 (normally intCrdT limits this to 2^31-1)
Image row data size (numPixX * colorT::bitsPerChan * colorT::channelCount / 8) must be less than 2^32-1 bytes
Image data must be less than 2^32-1 bytes

Limitations for bit perfect (toTRU is NULL) files:

Channels must be uint8_t, uint16_t, uint32_t, uint64_t, float (32-bit), or double (64-bit)

Parameters

fileName	The file name to write data to
pxFilter	An pxFilter object instance
markAlpha	If an alpha channel is present, then mark it as such in the TIFF file.

Returns: Status of I/O

Return values

0	Everything seems to have worked
2	Image channels are too shallow for TIFF format
3	Image channels are too deep for TIFF format
4	Image has too few channels for TIFF format
5	Image has too many channels for TIFF format
6	Image has too few columns for TIFF format
7	Image has too many columns for TIFF format
8	Image has too few rows for TIFF format
9	Image has too few rows for TIFF format
10	Image rows are too large (too much data) for TIFF format
11	Image is too large (too much data) for TIFF format

Definition at line 3026 of file ramCanvasTpl.hpp.

References LITTLE, platformEndianness(), writeTIFFfile(), and writeUIntToStream().

Referenced by main(), writeTIFFfile(), and writeTIFFfile().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeTIFFfile() [2/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

int mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::writeTIFFfile	(	std::string	fileName,
		bool	markAlpha = true )

inline

Simplified overload for writeTIFFfile() that only requires the filename.

Definition at line 3016 of file ramCanvasTpl.hpp.

References writeTIFFfile().

Here is the call graph for this function:

◆ writeTGAfile()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

int mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::writeTGAfile ( std::string fileName )

inline

Write a 24-bit (8-bit per channel) RGB, TGA format graphics file.

Respects integer coordinate system orientation.

Why TGA? TGA files are not well supported by modern software. When supported, it is normally only 8-bit RGBA. With these limitations one might ask why this function exists. I am a POV-Ray fan, and it uses a specialized TGA format for height maps. That's really it... One could use this function to dump out regular RGB images, but I suggest writeTIFFfile() for that.

Note TGA files are 8-bit files, and *_byte functions are used to convert channel values to 8-bit before being written.

Parameters

fileName The file name name to write data to

Returns: Status of I/O

Return values

0	Everything seems to have worked
1	File open failure
6	Image of zero width
7	Image too wide for TGA format (> 2^16-1)
8	Image of zero height
9	Image too tall for TGA format (> 2^16-1)

Definition at line 2913 of file ramCanvasTpl.hpp.

References getPxColorRefNC(), isIntAxOrientationNaturalX(), isIntAxOrientationNaturalY(), LITTLE, numPixX, numPixY, writeTGAfile(), and writeUIntToStream().

Referenced by writeTGAfile().

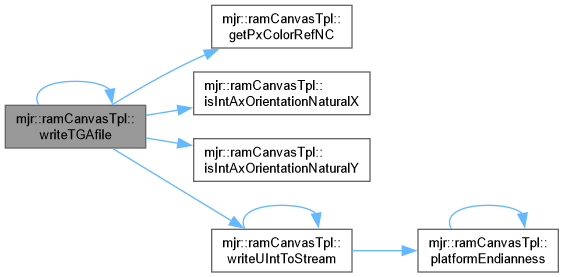

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readRAWfile()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

int mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::readRAWfile ( std::string fileName )

Read RAW file.

Warning: This function is experimental! Functionality and API are likely to change in the future.

Bug: Floating point data is read directly from disk as-is without regard for endianness. I have no plans to fix this because I'm not sure what a good fix looks like

Return values

0	Image file loaded successfully
1	File open failure
2	NOT USED
3	NOT USED
4	NOT USED
5	NOT USED
6	NOT USED
7	NOT USED
8	File of zero width
9	File of zero height
10	NOT USED
11	Read failure
12	Canvas Allocation failed (insufficient width)
14	Canvas Allocation failed (insufficient height)
15	bps not 8, 16, 32, or 64
16	NOT USED
17	NOT USED
18	Sample Format is not unsigned integer or IEEE floating point
19	File and ramCanvas samples per pixel (channel count) differs
20	File and ramCanvas channel depth differ
21	File and ramCanvas channel format (int vs float) differ
22	NOT USED
23	File is signed integer or unsigned float
24	File is missing MJRRAW magic number
25	Image data read failure (file may have ended prematurely)
26	Malformed header
27	Image is too wide to be supported by ramCanvas
28	Image is too tall to be supported by ramCanvas
29	Error reading numbers in header
32	NOT USED
33	Image width missing from header
34	Image height missing from header
35	Image channel count missing from header
36	Image channel depth missing from header

Definition at line 4419 of file ramCanvasTpl.hpp.

References BIG, getPxColorRefNC(), intCrdMax, isIntAxOrientationNaturalX(), isIntAxOrientationNaturalY(), LITTLE, numPixX, numPixY, platformEndianness(), readRAWfile(), and resizeCanvas().

Referenced by readRAWfile().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeRAWfile() [1/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

template<class rcConT>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

int mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::writeRAWfile	(	std::string	fileName,
		rcConT	pxFilter )

inline

Write a MJRRAW file.

Respects integer coordinate system orientation.

Why? This simple file format is designed to house the more exotic images this library supports, and be easily consumed by many image processing and data visualization tools – usually via a feature referred to as a raw importer. ImageMagick, VisIT, ParaView, and ImageJ all can read this type of data. The header is exactly 100 bytes, ASCII, and contains two newlines. The idea being that one can do a 'head -n 2 FILENAME' on the image file, and get a human readable output of basic image info that also happens to be easy to parse. The first line of the header is the text "MJRRAW". The second line of the header consists of a sequence of values & value labels and followed by enough zero characters to pad to get to the 100 byte mark. That's 100 bytes for the two lines including the two newline characters. The values consist of uppercase letters and numbers, and each label is a single lower case letter. If a value is a number, then it is expressed as a decimal number in ASCII – possibly zero padded. While the code in ramCanvasTpl doesn't make assumptions about the order of the header values, some of the example scripts require them to be in the following order: x, y, c, b, s, t, & i. The header is followed by the binary image.

Labels:

x: Number of pixels on X (horizontal axis) expressed as a zero padded, decimal integer
y: Number of pixels on Y (vertical axis) expressed as a zero padded, decimal integer
c: Number of channels expressed as a zero padded, decimal integer
b: Number of bits per channel expressed as a zero padded, decimal integer
s: Channel signdness (ignored for floating point channels)
- UNS: Unsigned data. DEFAULT VALUE.
- SGN: Signed data
t: Channel type
- INT: Integral channels. DEFAULT VALUE.
- FLT: Floating point channels
i: endianness
- BIG: Big endian
- LTL: Little endian
- UNK: Unknown. DEFAULT VALUE. For read we assume file matches system running the code.
Currently reserved, but unused labels
- p: Pixel format
  - MXL: Each pixel of the image is written in sequence. DEFAULT VALUE.
  - PLN: Each channel of the image is written in sequence.
  - BIT: For bit-masks with 8 bits packed in a byte.
- z: Compression
  - 000: No compression. DEFAULT VALUE.
  - ZLB: Zlib.
  - GZP: Gzip.

Two headers that both specify a 256x128 image with 3 unsigned 8-bit integer channels encoded little endian:

        MJRRAW
        256x128y3c8bUNSsINTtLTLi00000000000000000000000000000000000000000000000000000000000000000000

        MJRRAW
        0000000000000000256x0000000000000000128y000000000000000000000000003c00000000008bSGNsINTtLTLi

Parameters

fileName	The file name name to write data to
pxFilter	An pxFilter object instance

Return values

0	The write was successful.
1	Could not open file.

Definition at line 2976 of file ramCanvasTpl.hpp.

References LITTLE, platformEndianness(), and writeRAWfile().

Referenced by writeRAWfile(), and writeRAWfile().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeRAWfile() [2/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

int mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::writeRAWfile ( std::string fileName )

inline

Simplified overload for writeRAWfile() that only requires the filename.

Definition at line 2966 of file ramCanvasTpl.hpp.

References writeRAWfile().

Here is the call graph for this function:

◆ isCliped() [1/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

int mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::isCliped	(	fltCrdT	x,
		fltCrdT	y ) const

inline

Determine if the given point is within the bounds of the ramCanvasTpl.

Parameters

x	The x coordinate of the point to test
y	The y coordinate of the point to test

Returns: Returns true if the point would be clipped.

Definition at line 1542 of file ramCanvasTpl.hpp.

Referenced by convolution(), cropCanvas(), drawFillTriangleUtl(), geomTfrmRevAff(), geomTfrmRevArb(), geomTfrmRevBiPoly(), geomTfrmRevRPoly(), getPxColorInterpAvg9(), and mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::isCliped().

Here is the caller graph for this function:

◆ isCliped() [2/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

int mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::isCliped	(	intCrdT	x,
		intCrdT	y ) const

inline

Definition at line 1543 of file ramCanvasTpl.hpp.

◆ isOnCanvas() [1/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

int mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::isOnCanvas	(	fltCrdT	x,
		fltCrdT	y ) const

inline

Determine if the given point is within the bounds of the ramCanvasTpl.

Parameters

x	The x coordinate of the point to test
y	The y coordinate of the point to test

Returns: Returns true if the point would be not be clipped.

Definition at line 1549 of file ramCanvasTpl.hpp.

Referenced by getPxColor().

Here is the caller graph for this function:

◆ isOnCanvas() [2/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

int mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::isOnCanvas	(	intCrdT	x,
		intCrdT	y ) const

inline

Definition at line 1550 of file ramCanvasTpl.hpp.

◆ real2intX()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

intCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::real2intX ( fltCrdT x ) const

inline

Convert real x coordinate to integral x coordinate.

Parameters

x	The real x coordinate value to be converted.

Returns: The integer x coordinate corresponding to the given x coordinate

Definition at line 3240 of file ramCanvasTpl.hpp.

References maxRealX, minRealX, NATURAL, pixWidX, real2intX(), and realAxOrientationX.

Referenced by drawPLCurve(), and real2intX().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ real2intY()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

intCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::real2intY ( fltCrdT y ) const

inline

Convert real y coordinate to integral y coordinate.

Parameters

y	The real y coordinate value to be converted.

Returns: The integer y coordinate corresponding to the given y coordinate

Definition at line 3251 of file ramCanvasTpl.hpp.

References maxRealY, minRealY, NATURAL, pixWidY, real2intY(), and realAxOrientationY.

Referenced by drawPLCurve(), and real2intY().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ int2realX()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::int2realX ( intCrdT x )

inline

Convert integral x coordinate to real x coordinate.

Parameters

x	The integer x coordinate value to be converted.

Returns: The real x coordinate corresponding to the given x coordinate

Definition at line 3262 of file ramCanvasTpl.hpp.

References int2realX(), maxRealX, minRealX, NATURAL, pixWidX, and realAxOrientationX.

Referenced by colorizeFltCanvas(), colorizeFltCanvas(), and int2realX().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ int2realY()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::int2realY ( intCrdT y )

inline

Convert integral y coordinate to real y coordinate.

Parameters

y	The integer y coordinate value to be converted.

Returns: The real y coordinate corresponding to the given y coordinate

Definition at line 3273 of file ramCanvasTpl.hpp.

References int2realY(), maxRealY, minRealY, NATURAL, pixWidY, and realAxOrientationY.

Referenced by colorizeFltCanvas(), colorizeFltCanvas(), and int2realY().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ int2real()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

pointFltType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::int2real	(	intCrdT	x,
		intCrdT	y )

inline

Convert real x & y coordinates to integer x & y coordinates.

Parameters

x	The integer x coordinate value to be converted.
y	The integer y coordinate value to be converted.

Returns: The real x & y coordinates corresponding to the given integer x & y coordinates

Definition at line 1586 of file ramCanvasTpl.hpp.

◆ real2int()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

pointIntType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::real2int	(	intCrdT	x,
		intCrdT	y )

inline

Convert integer x & y coordinates to real x & y coordinates.

Parameters

x	The real x coordinate value to be converted.
y	The real y coordinate value to be converted.

Returns: The integer x & y coordinates corresponding to the given real x & y coordinates

Definition at line 1591 of file ramCanvasTpl.hpp.

◆ int2realSideX()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::int2realSideX	(	intCrdT	x,
		int	side )

inline

Given integer x coordinate, produce real x coordinate for one of the pixel's edge.

Parameters

x	The integer x coordinate value to be converted.
side	The integer x coordinate of the corner – should be 0 (lower) or 1 (upper).

Returns: The real x & y coordinates corresponding to the requested corner

Definition at line 1603 of file ramCanvasTpl.hpp.

◆ int2realSideY()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::int2realSideY	(	intCrdT	y,
		int	side )

inline

Given integer y coordinate, produce real y coordinate for one of the pixel's edge.

Parameters

y	The integer y coordinate value to be converted.
side	The integer y coordinate of the corner – should be 0 (lower) or 1 (upper).

Returns: The real y coordinates corresponding to the requested side

Definition at line 1608 of file ramCanvasTpl.hpp.

◆ int2realCorner() [1/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

pointFltType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::int2realCorner	(	intCrdT	x,
		intCrdT	y,
		int	sideX,
		int	sideY )

inline

Given integer x & y coordinates, produce real x & y coordinates for one of the pixel's corners.

Parameters

x	The integer x coordinate value to be converted.
y	The integer y coordinate value to be converted.
sideX	The integer x coordinate of the corner – should be 0 (lower) or 1 (upper).
sideY	The integer y coordinate of the corner – should be 0 (lower) or 1 (upper).

Returns: The real x & y coordinates corresponding to the requested corner

Definition at line 1615 of file ramCanvasTpl.hpp.

◆ int2realCorner() [2/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

pointFltType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::int2realCorner	(	intCrdT	x,
		intCrdT	y,
		int	cornerIndex )

inline

Given integer x & y coordinates and a corner index, produce real x & y coordinates for one of the pixel's corners.

Parameters

x	The integer x coordinate value to be converted.
y	The integer y coordinate value to be converted.
cornerIndex	Corner index. 0 => (0, 0); 1 => (0, 1); 2 => (1, 0); 3 => (1, 1);

Returns: The real x & y coordinates corresponding to the requested corner

Definition at line 1621 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::int2realCorner().

Here is the caller graph for this function:

◆ realDelta2intX()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

intCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::realDelta2intX ( fltCrdT x ) const

inline

Convert real distance on the x coordinate axis to an integral distance.

Parameters

x	The real delta x to be converted

Returns: integer delta x

Definition at line 1631 of file ramCanvasTpl.hpp.

◆ realDelta2intY()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

intCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::realDelta2intY ( fltCrdT y ) const

inline

Convert real distance on the y coordinate axis to an integral distance.

Parameters

y	The real delta y to be converted

Returns: integer delta y

Definition at line 1636 of file ramCanvasTpl.hpp.

◆ intDelta2realX()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::intDelta2realX ( intCrdT x ) const

inline

Convert integral distance on the x coordinate to a real distance.

Parameters

x	The real x coordinate value to be converted.

Returns: The integer x coordinate corresponding to the given x coordinate

Definition at line 1641 of file ramCanvasTpl.hpp.

◆ intDelta2realY()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::intDelta2realY ( intCrdT y ) const

inline

Convert integral distance on the y coordinate to a real distance.

Parameters

y	real y coordinate value to be converted.

Returns: The integer y coordinate corresponding to the given y coordinate

Definition at line 1646 of file ramCanvasTpl.hpp.

◆ getRealAxOrientationX()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

realAxisOrientation mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getRealAxOrientationX ( )

inline

Get the real X axis orientation.

Returns: INVERTED means inverted with respect to the integer axis, and NATURAL otherwise.

Definition at line 1655 of file ramCanvasTpl.hpp.

◆ setRealAxOrientationX()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::setRealAxOrientationX ( realAxisOrientation orientation )

inline

Set the real X axis orientation.

Parameters

orientation The orientation (INVERTED or NATURAL)

Definition at line 1659 of file ramCanvasTpl.hpp.

◆ getRealAxOrientationY()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

realAxisOrientation mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getRealAxOrientationY ( )

inline

Get the real Y axis orientation.

Returns: INVERTED means inverted with respect to the integer axis, and NATURAL otherwise.

Definition at line 1663 of file ramCanvasTpl.hpp.

◆ setRealAxOrientationY()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::setRealAxOrientationY ( realAxisOrientation orientation )

inline

Set the real Y axis orientation.

Parameters

orientation The orientation (INVERTED or NATURAL)

Definition at line 1667 of file ramCanvasTpl.hpp.

◆ setRealAxisDefaultOrientation()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::setRealAxisDefaultOrientation ( )

inline

Set the real axis orientation to default (NATURAL for both X and Y axes)

Definition at line 1670 of file ramCanvasTpl.hpp.

Referenced by ramCanvasTpl(), and ramCanvasTpl().

Here is the caller graph for this function:

◆ getDrawMode()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

drawModeType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getDrawMode ( )

inline

Get the current drawing mode.

Returns: The drawing mode

Definition at line 1679 of file ramCanvasTpl.hpp.

◆ setDrawMode()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::setDrawMode ( drawModeType newDrawMode )

inline

Set the current drawing mode NOOP if enableDrawModes is false.

Parameters

newDrawMode The drawing mode

Definition at line 1684 of file ramCanvasTpl.hpp.

◆ setDefaultDrawMode()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::setDefaultDrawMode ( )

inline

Set the default draw mode.

Definition at line 1687 of file ramCanvasTpl.hpp.

Referenced by ramCanvasTpl(), and ramCanvasTpl().

Here is the caller graph for this function:

◆ getIntAxOrientationX()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

intAxisOrientation mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getIntAxOrientationX ( )

inline

Get the integer X axis orientation.

Returns: NATURAL means increasing to the right.

Definition at line 1696 of file ramCanvasTpl.hpp.

◆ isIntAxOrientationNaturalX()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

bool mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::isIntAxOrientationNaturalX ( )

inline

Is the integer X axis NATURAL?

Returns: true means increasing to the right.

Definition at line 1700 of file ramCanvasTpl.hpp.

Referenced by drawHersheyGlyph(), readRAWfile(), readTIFFfile(), and writeTGAfile().

Here is the caller graph for this function:

◆ setIntAxOrientationX()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::setIntAxOrientationX ( intAxisOrientation orientation )

inline

Set the integer X axis orientation.

Parameters

orientation The orientation (INVERTED or NATURAL)

Definition at line 1704 of file ramCanvasTpl.hpp.

◆ isIntAxOrientationNaturalY()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

bool mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::isIntAxOrientationNaturalY ( )

inline

Get the integer Y axis orientation.

Returns: NATURAL means increasing in the upward direction.

Definition at line 1708 of file ramCanvasTpl.hpp.

Referenced by drawHersheyGlyph(), readRAWfile(), readTIFFfile(), and writeTGAfile().

Here is the caller graph for this function:

◆ getIntAxOrientationY()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

intAxisOrientation mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getIntAxOrientationY ( )

inline

Is the integer Y axis orientation NATURAL?

Returns: NATURAL means increasing in the upward direction.

Definition at line 1712 of file ramCanvasTpl.hpp.

◆ setIntAxOrientationY()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::setIntAxOrientationY ( intAxisOrientation orientation )

inline

Set the integer Y axis orientation.

Parameters

orientation The orientation (INVERTED or NATURAL)

Definition at line 1716 of file ramCanvasTpl.hpp.

◆ setIntAxisDefaultOrientation()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::setIntAxisDefaultOrientation ( )

inline

Set the integer axis orientation to default (NATURAL for both X and Y axes)

Definition at line 1719 of file ramCanvasTpl.hpp.

Referenced by ramCanvasTpl(), and ramCanvasTpl().

Here is the caller graph for this function:

◆ getNumPixX()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

intCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getNumPixX ( ) const

inline

Returns: The number of pixels in the x direction.

Definition at line 1727 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::adjoinCanvasBottom(), mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::adjoinCanvasLeft(), mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::adjoinCanvasRight(), mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::adjoinCanvasTop(), combineRamCanvasBinOp(), mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::insertCanvas(), mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::isNotSameSize(), mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::isSameSize(), main(), and readTIFFfile().

Here is the caller graph for this function:

◆ getNumPixY()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

intCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getNumPixY ( ) const

inline

Returns: The number of pixels in the y direction.

Definition at line 1730 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::adjoinCanvasBottom(), mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::adjoinCanvasLeft(), mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::adjoinCanvasRight(), mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::adjoinCanvasTop(), combineRamCanvasBinOp(), mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::insertCanvas(), mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::isNotSameSize(), mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::isSameSize(), main(), and readTIFFfile().

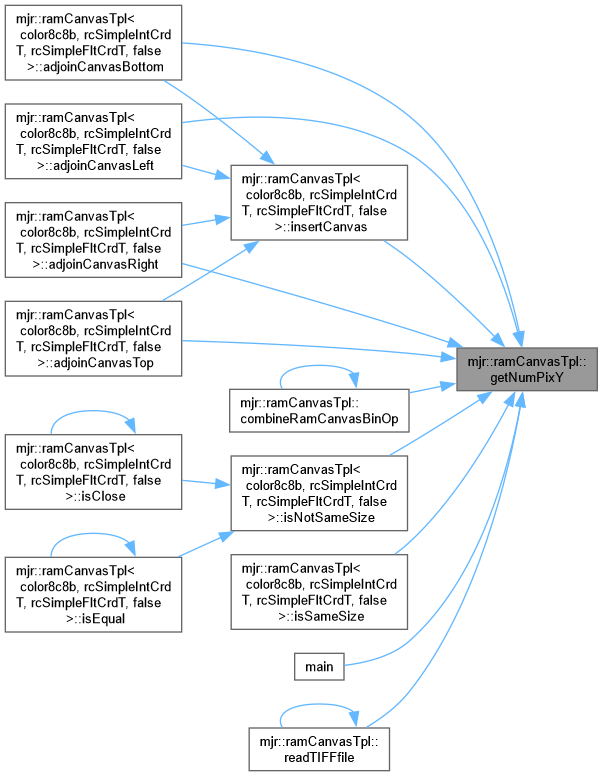

Here is the caller graph for this function:

◆ getPixels()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

colorT * mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPixels ( )

inline

Returns a pointer to the raw pixel store.

This generally violates the ramCanvasTpl object interface; however, this may be required for performance.

Returns: The number a pointer to the raw pixel store.

Definition at line 1735 of file ramCanvasTpl.hpp.

◆ clonePixels()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

colorT * mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::clonePixels ( )

Return a clone (a copy) of the raw pixel store.

This function copies the internal pixel store and returns a pointer to this copy.

Returns: Pointer to a copy of the raw pixel store.

Definition at line 3284 of file ramCanvasTpl.hpp.

References clonePixels(), getPxColorNC(), numPixX, and numPixY.

Referenced by clonePixels().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getMinRealX()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getMinRealX ( )

inline

x coord of min (real coord)

Definition at line 1747 of file ramCanvasTpl.hpp.

◆ getMaxRealX()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getMaxRealX ( )

inline

x coord of max (real coord)

Definition at line 1748 of file ramCanvasTpl.hpp.

◆ getMinRealY()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getMinRealY ( )

inline

y coord of min (real coord)

Definition at line 1749 of file ramCanvasTpl.hpp.

◆ getMaxRealY()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getMaxRealY ( )

inline

y coord of max (real coord)

Definition at line 1750 of file ramCanvasTpl.hpp.

◆ getPixWidX()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPixWidX ( )

inline

Width of a pixel (real coord)

Definition at line 1751 of file ramCanvasTpl.hpp.

◆ getPixWidY()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPixWidY ( )

inline

Height of a pixel (real coord)

Definition at line 1752 of file ramCanvasTpl.hpp.

◆ getCanvasWidX()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getCanvasWidX ( )

inline

Width of the display (real coord)

Definition at line 1753 of file ramCanvasTpl.hpp.

◆ getCanvasWidY()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getCanvasWidY ( )

inline

height of the display(real coord)

Definition at line 1754 of file ramCanvasTpl.hpp.

◆ getCanvasWidD()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getCanvasWidD ( )

inline

Width of the display (real coord)

Definition at line 1755 of file ramCanvasTpl.hpp.

◆ getPxColor() [1/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColor	(	intCrdT	x,
		intCrdT	y ) const

inline

Returns a copy of the color at the given coordinates.

Definition at line 3295 of file ramCanvasTpl.hpp.

References getPxColor(), isOnCanvas(), numPixX, and pixels.

Referenced by combineRamCanvasBinOp(), convolution(), cropCanvas(), expandCanvas(), flipHorz(), flipTranspose(), flipVert(), getPxColor(), getPxColorInterpAvg9(), getPxColorInterpNear(), getPxColorInterpTrunc(), rotate180(), rotate90CCW(), rotate90CW(), scaleDown1pt(), scaleDownMax(), scaleDownMean(), and scaleUpProximal().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getPxColor() [2/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColor	(	fltCrdT	x,
		fltCrdT	y ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 1766 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::getPxColor().

Here is the caller graph for this function:

◆ getPxColor() [3/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColor ( pointIntType thePoint ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 1769 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::getPxColor().

Here is the caller graph for this function:

◆ getPxColor() [4/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColor ( pointFltType thePoint ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 1772 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::getPxColor().

Here is the caller graph for this function:

◆ getPxColorWrap() [1/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorWrap	(	intCrdT	x,
		intCrdT	y ) const

inline

Returns a copy of the color at the given coordinates wrapping x & y if out of range.

Definition at line 1775 of file ramCanvasTpl.hpp.

◆ getPxColorWrap() [2/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorWrap	(	fltCrdT	x,
		fltCrdT	y ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 1778 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::getPxColorWrap().

Here is the caller graph for this function:

◆ getPxColorWrap() [3/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorWrap ( pointIntType thePoint ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 1781 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::getPxColorWrap().

Here is the caller graph for this function:

◆ getPxColorWrap() [4/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorWrap ( pointFltType thePoint ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 1784 of file ramCanvasTpl.hpp.

Referenced by mjr::ramCanvasTpl< color8c8b, rcSimpleIntCrdT, rcSimpleFltCrdT, false >::getPxColorWrap().

Here is the caller graph for this function:

◆ getPxColorChan() [1/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

template<int chanNum>
requires ((chanNum >= 0) && (chanNum < colorT::channelCount))

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorChan	(	intCrdT	x,
		intCrdT	y ) const

inline

Returns a copy of the color channel value at the given coordinates.

Definition at line 1794 of file ramCanvasTpl.hpp.

◆ getPxColorChan() [2/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

template<int chanNum>
requires ((chanNum >= 0) && (chanNum < colorT::channelCount))

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorChan	(	fltCrdT	x,
		fltCrdT	y ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 1799 of file ramCanvasTpl.hpp.

◆ getPxColorChan() [3/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

template<int chanNum>
requires ((chanNum >= 0) && (chanNum < colorT::channelCount))

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorChan ( pointIntType thePoint ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 1804 of file ramCanvasTpl.hpp.

◆ getPxColorChan() [4/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

template<int chanNum>
requires ((chanNum >= 0) && (chanNum < colorT::channelCount))

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorChan ( pointFltType thePoint ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 1809 of file ramCanvasTpl.hpp.

◆ getPxColorChanWrap() [1/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

template<int chanNum>
requires ((chanNum >= 0) && (chanNum < colorT::channelCount))

colorChanType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorChanWrap	(	intCrdT	x,
		intCrdT	y ) const

inline

Returns a copy of the color channel value at the given coordinates wrapping x & y if out of range.

Definition at line 1814 of file ramCanvasTpl.hpp.

◆ getPxColorChanWrap() [2/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

template<int chanNum>
requires ((chanNum >= 0) && (chanNum < colorT::channelCount))

colorChanType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorChanWrap	(	fltCrdT	x,
		fltCrdT	y ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 1819 of file ramCanvasTpl.hpp.

◆ getPxColorChanWrap() [3/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

template<int chanNum>
requires ((chanNum >= 0) && (chanNum < colorT::channelCount))

colorChanType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorChanWrap ( pointIntType thePoint ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 1824 of file ramCanvasTpl.hpp.

◆ getPxColorChanWrap() [4/4]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

template<int chanNum>
requires ((chanNum >= 0) && (chanNum < colorT::channelCount))

colorChanType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorChanWrap ( pointFltType thePoint ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Definition at line 1829 of file ramCanvasTpl.hpp.

◆ getPxColorInterpolate()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorInterpolate	(	double	x,
		double	y,
		interpolationType	interpMethod = interpolationType::BILINEAR )

inline

Returns the interpolated color value at the the given coordinates using the given interpolation method.

Parameters

x	The x coordinate (the type is double, but the coordinate is in the integer coordinate space. i.e. x=1.5 is between x=1 and x=2)
y	The y coordinate
interpMethod	The interpolation method (default: interpolationType::BILINEAR)

Returns: Interpolated color value

Definition at line 3306 of file ramCanvasTpl.hpp.

References AVERAGE4, AVERAGE9, BILINEAR, getPxColorInterpBLin(), getPxColorInterpolate(), NEAREST, and TRUNCATE.

Referenced by geomTfrmRevAff(), geomTfrmRevArb(), geomTfrmRevBiPoly(), geomTfrmRevRPoly(), and getPxColorInterpolate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getPxColorInterpBLin()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorInterpBLin	(	double	x,
		double	y )

Returns the bilinear interpolated color value at the the given coordinates.

Parameters

x	The x coordinate (the type is double, but the coordinate is in the integer coordinate space. i.e. x=1.5 is between x=1 and x=2)
y	The y coordinate

Returns: Interpolated color value

Definition at line 3321 of file ramCanvasTpl.hpp.

References getPxColorInterpBLin(), getPxColorRefNC(), numPixX, and numPixY.

Referenced by getPxColorInterpBLin(), and getPxColorInterpolate().

Here is the call graph for this function:

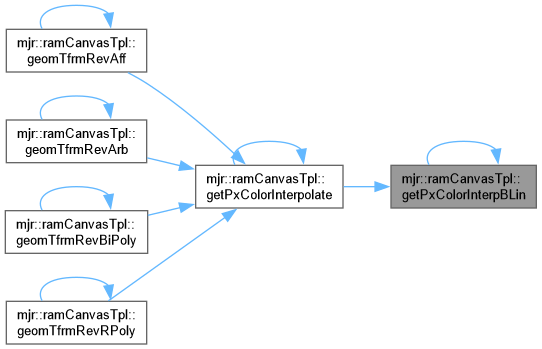

Here is the caller graph for this function:

◆ getPxColorInterpTrunc()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorInterpTrunc	(	double	x,
		double	y )

inline

Returns the truncated interpolated color value at the the given coordinates.

Parameters

x	The x coordinate (the type is double, but the coordinate is in the integer coordinate space. i.e. x=1.5 is between x=1 and x=2)
y	The y coordinate

Returns: Interpolated color value

Definition at line 3360 of file ramCanvasTpl.hpp.

References getPxColor(), and getPxColorInterpTrunc().

Referenced by getPxColorInterpTrunc().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getPxColorInterpNear()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorInterpNear	(	double	x,
		double	y )

inline

Returns the nearest neighbor interpolated color value at the the given coordinates.

Parameters

x	The x coordinate (the type is double, but the coordinate is in the integer coordinate space. i.e. x=1.5 is between x=1 and x=2)
y	The y coordinate

Returns: Interpolated color value

Definition at line 3368 of file ramCanvasTpl.hpp.

References getPxColor(), and getPxColorInterpNear().

Referenced by getPxColorInterpNear().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getPxColorInterpAvg4()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorInterpAvg4	(	double	x,
		double	y )

Returns the average 4 interpolated color value at the the given coordinates.

Parameters

x	The x coordinate (the type is double, but the coordinate is in the integer coordinate space. i.e. x=1.5 is between x=1 and x=2)
y	The y coordinate

Returns: Interpolated color value

Definition at line 3400 of file ramCanvasTpl.hpp.

References getPxColorInterpAvg4(), numPixX, numPixY, and pixels.

Referenced by getPxColorInterpAvg4().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getPxColorInterpAvg9()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorInterpAvg9	(	double	x,
		double	y )

inline

Returns the average 9 interpolated color value at the the given coordinates.

Parameters

x	The x coordinate (the type is double, but the coordinate is in the integer coordinate space. i.e. x=1.5 is between x=1 and x=2)
y	The y coordinate

Returns: Interpolated color value

Definition at line 3376 of file ramCanvasTpl.hpp.

References getPxColor(), getPxColorInterpAvg9(), and isCliped().

Referenced by getPxColorInterpAvg9().

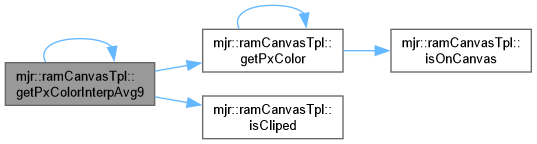

Here is the call graph for this function:

Here is the caller graph for this function:

◆ drawPointNC()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPointNC	(	intCrdT	x,
		intCrdT	y,
		colorArgType	color )

inline

The functions here work in a similar way to the non-NC functions, but with no clipping or bounds checking.

Thus, if an argument would cause something to be drawn beyond the bounds of the ramCanvasTpl, a core dump will most certainly result. The intent is to provide less overhead for very careful code that handles clipping and error checking by itself – a good line drawing algorithm for example. Draw a point with no clipping or bounds checking.

Parameters

x	The x coordinate of the point to be drawn
y	The y coordinate of the point to be drawn
color	The color to draw the point.

Definition at line 4167 of file ramCanvasTpl.hpp.

References ADDCLAMP, AND, DIFFCLAMP, drawMode, drawPointNC(), getPxColorRefNC(), MULTCLAMP, OR, SET, and XOR.

Referenced by drawFillTriangleUtl(), drawLine(), drawPointNC(), flipHorz(), flipVert(), geomTfrmRevAff(), geomTfrmRevArb(), geomTfrmRevBiPoly(), and geomTfrmRevRPoly().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getPxColorNC()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorNC	(	intCrdT	x,
		intCrdT	y ) const

inline

Get the default point to the specified coordinates with no clipping or bounds checking.

Parameters

x	The x coordinate of the point
y	The y coordinate of the point

Definition at line 1890 of file ramCanvasTpl.hpp.

Referenced by autoHistStrech(), autoMaxHistStrechRGB(), clonePixels(), and exportRasterData().

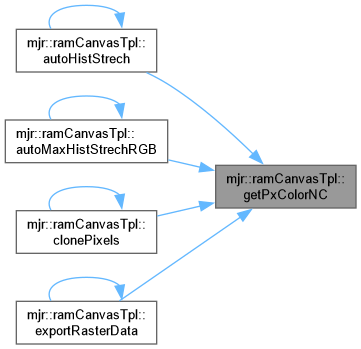

Here is the caller graph for this function:

◆ getPxColorRefNC()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

colorT & mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::getPxColorRefNC	(	intCrdT	x,
		intCrdT	y ) const

inline

Returns a reference to the color object for the given pixel with no clipping or bounds checking.

Parameters

x	The x coordinate of the point
y	The y coordinate of the point

Returns: Reference to the color object associated with the specified point

Definition at line 1896 of file ramCanvasTpl.hpp.

Here is the caller graph for this function:

◆ drawHorzLineNC()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawHorzLineNC	(	intCrdT	xMin,
		intCrdT	xMax,
		intCrdT	yConst,
		colorArgType	color )

inline

Draw a horizontal line with no clipping or bounds checking.

Parameters

xMin	The MINIMUM x coordinate of the line to be drawn
xMax	The MAXIMUM x coordinate of the line to be drawn
yConst	The y coordinate at which the line is to be drawn
color	The color to draw the line

Definition at line 1903 of file ramCanvasTpl.hpp.

Referenced by drawFillRectangle(), drawLine(), and drawRectangle().

Here is the caller graph for this function:

◆ drawVertLineNC()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawVertLineNC	(	intCrdT	yMin,
		intCrdT	yMax,
		intCrdT	xConst,
		colorArgType	color )

inline

Draw a vertical line with no clipping or bounds checking.

Parameters

yMin	The MINIMUM y coordinate of the line to be drawn
yMax	The MAXIMUM y coordinate of the line to be drawn
xConst	The x coordinate at which the line is to be drawn
color	The color to draw the line

Definition at line 1910 of file ramCanvasTpl.hpp.

Referenced by drawLine(), and drawRectangle().

Here is the caller graph for this function:

◆ drawPointS()

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawPointS	(	intCrdT	x,
		intCrdT	y,
		colorArgType	color )

inline

Draw a point without any special drawing options.

It simply sets the pixel to the given color. In addition, no clipping or bounds checking is performed. Thus, if an argument would cause something to be drawn beyond the bounds of the ramCanvasTpl, a segfault will most certainly result. The intent is to provide a less overhead for very careful code that handles clipping and error checking and drawing options by itself – an image filter algorithm for example. Note that enableDrawModes is ignored.

Parameters

x	The x coordinate of the point
y	The y coordinate of the point
color	The color with which to draw the point

Definition at line 1925 of file ramCanvasTpl.hpp.

Referenced by clrCanvas().

Here is the caller graph for this function:

◆ colorizeFltCanvas() [1/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::colorizeFltCanvas ( std::function< colorT(fltCrdT, fltCrdT)> cFun )

Definition at line 2857 of file ramCanvasTpl.hpp.

References colorizeFltCanvas(), drawPoint(), int2realX(), int2realY(), numPixX, and numPixY.

Referenced by colorizeFltCanvas(), and colorizeFltCanvas().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ colorizeFltCanvas() [2/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::colorizeFltCanvas ( std::function< colorT(pointFltType)> cFun )

Definition at line 2872 of file ramCanvasTpl.hpp.

References colorizeFltCanvas(), drawPoint(), int2realX(), int2realY(), numPixX, and numPixY.

Here is the call graph for this function:

◆ colorizeIntCanvas() [1/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::colorizeIntCanvas ( std::function< colorT(intCrdT, intCrdT)> cFun )

Definition at line 2886 of file ramCanvasTpl.hpp.

References colorizeIntCanvas(), drawPoint(), numPixX, and numPixY.

Referenced by colorizeIntCanvas(), and colorizeIntCanvas().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ colorizeIntCanvas() [2/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>
requires (std::is_integral<intCrdT>::value && std::is_signed<intCrdT>::value && std::is_floating_point<fltCrdT>::value)

void mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::colorizeIntCanvas ( std::function< colorT(pointIntType)> cFun )

Definition at line 2899 of file ramCanvasTpl.hpp.

References colorizeIntCanvas(), drawPoint(), numPixX, and numPixY.

Here is the call graph for this function:

◆ statNumNonZeroPixels() [1/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

intCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::statNumNonZeroPixels	(	intCrdT	x1,
		intCrdT	y1,
		intCrdT	x2,
		intCrdT	y2 )

inline

Definition at line 1949 of file ramCanvasTpl.hpp.

◆ statNumNonZeroPixels() [2/2]

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

intCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::statNumNonZeroPixels ( )

inline

Definition at line 1965 of file ramCanvasTpl.hpp.

Member Data Documentation

◆ intCrdMax

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

const intCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::intCrdMax = (1ul << ((sizeof(intCrdT)*CHAR_BIT-1)/2)) - 3

static

maximum for numPixX, numPixY, & numPix.

Definition at line 239 of file ramCanvasTpl.hpp.

Referenced by newIntCoordsNC(), and readRAWfile().

◆ intCrdGrdMax

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

const intCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::intCrdGrdMax = intCrdMax+1

staticprivate

Large sentinel value (always off canvas)

Definition at line 258 of file ramCanvasTpl.hpp.

◆ intCrdGrdMin

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

const intCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::intCrdGrdMin = -1

staticprivate

Small sentinel value (always off canvas)

Definition at line 259 of file ramCanvasTpl.hpp.

◆ numPixX

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

intCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::numPixX

private

Number of x pixels.

Definition at line 265 of file ramCanvasTpl.hpp.

◆ numPixY

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

intCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::numPixY

private

Number of y pixels.

Definition at line 266 of file ramCanvasTpl.hpp.

◆ numPix

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

intCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::numPix

private

Number of pixels.

Definition at line 267 of file ramCanvasTpl.hpp.

Referenced by newIntCoordsNC().

◆ minRealX

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::minRealX

private

x coord of min (real coord)

Definition at line 273 of file ramCanvasTpl.hpp.

Referenced by int2realX(), newRealCoords(), operator=(), ramCanvasTpl(), ramCanvasTpl(), real2intX(), and updRealCoords().

◆ maxRealX

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::maxRealX

private

x coord of max (real coord)

Definition at line 274 of file ramCanvasTpl.hpp.

Referenced by int2realX(), newRealCoords(), operator=(), ramCanvasTpl(), ramCanvasTpl(), real2intX(), and updRealCoords().

◆ minRealY

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::minRealY

private

y coord of min (real coord)

Definition at line 275 of file ramCanvasTpl.hpp.

Referenced by int2realY(), newRealCoords(), operator=(), ramCanvasTpl(), ramCanvasTpl(), real2intY(), and updRealCoords().

◆ maxRealY

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::maxRealY

private

y coord of max (real coord)

Definition at line 276 of file ramCanvasTpl.hpp.

Referenced by int2realY(), newRealCoords(), operator=(), ramCanvasTpl(), ramCanvasTpl(), real2intY(), and updRealCoords().

◆ pixWidX

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::pixWidX

private

Width of a pixel (real coord)

Definition at line 282 of file ramCanvasTpl.hpp.

Referenced by int2realX(), real2intX(), and updRealCoords().

◆ pixWidY

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::pixWidY

private

Height of a pixel (real coord)

Definition at line 283 of file ramCanvasTpl.hpp.

Referenced by int2realY(), real2intY(), and updRealCoords().

◆ canvasWidX

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::canvasWidX

private

Width of the canvas (real coord)

Definition at line 285 of file ramCanvasTpl.hpp.

Referenced by updRealCoords().

◆ canvasWidY

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

fltCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::canvasWidY

private

height of the canvas (real coord)

Definition at line 286 of file ramCanvasTpl.hpp.

Referenced by updRealCoords().

◆ realAxOrientationX

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

realAxisOrientation mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::realAxOrientationX

private

Orientation of x axis.

Definition at line 292 of file ramCanvasTpl.hpp.

Referenced by int2realX(), operator=(), ramCanvasTpl(), ramCanvasTpl(), and real2intX().

◆ realAxOrientationY

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

realAxisOrientation mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::realAxOrientationY

private

Orientation of y axis.

Definition at line 293 of file ramCanvasTpl.hpp.

Referenced by int2realY(), operator=(), ramCanvasTpl(), ramCanvasTpl(), and real2intY().

◆ intAxOrientationX

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

intAxisOrientation mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::intAxOrientationX

private

Flip horizontally.

Definition at line 294 of file ramCanvasTpl.hpp.

Referenced by operator=(), ramCanvasTpl(), and ramCanvasTpl().

◆ intAxOrientationY

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

intAxisOrientation mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::intAxOrientationY

private

Flip vertically.

Definition at line 295 of file ramCanvasTpl.hpp.

Referenced by operator=(), ramCanvasTpl(), and ramCanvasTpl().

◆ pixels

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

colorT* mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::pixels

private

Array to hold the color values.

Definition at line 301 of file ramCanvasTpl.hpp.

Referenced by freeCanvas(), getPxColor(), getPxColorInterpAvg4(), operator=(), ramCanvasTpl(), ramCanvasTpl(), ramCanvasTpl(), ramCanvasTpl(), rePointPixels(), and ~ramCanvasTpl().

◆ pixelsE

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

colorT* mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::pixelsE

private

Point one beyond end of pixels array.

Definition at line 302 of file ramCanvasTpl.hpp.

Referenced by freeCanvas(), operator=(), ramCanvasTpl(), ramCanvasTpl(), ramCanvasTpl(), ramCanvasTpl(), and rePointPixels().

◆ dfltColor

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

colorT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::dfltColor

private

Default color.

Definition at line 308 of file ramCanvasTpl.hpp.

Referenced by clrCanvas(), drawPLCurve(), drawPLCurve(), drawPLCurve(), and drawPLCurve().

◆ drawMode

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

drawModeType mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::drawMode

private

Drawing mode.

Definition at line 309 of file ramCanvasTpl.hpp.

Referenced by drawPointNC(), operator=(), ramCanvasTpl(), and ramCanvasTpl().

◆ dfltX

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

intCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::dfltX

private

x coordinate used by default.

Definition at line 310 of file ramCanvasTpl.hpp.

◆ dfltY

template<class colorT, class intCrdT, class fltCrdT, bool enableDrawModes>

intCrdT mjr::ramCanvasTpl< colorT, intCrdT, fltCrdT, enableDrawModes >::dfltY

private

y coordinate used by default.

Definition at line 311 of file ramCanvasTpl.hpp.

The documentation for this class was generated from the following file:

ramCanvasTpl.hpp

Enumerations

Typedefs related to template parameters

std::function typedefs for common calls.

Typedefs related to colorT

Iterator Typedefs

Private Enumerations

Logical Maximum for intCrdT values

intCrd Guard Valus

Canvas integer coordinates

Canvas real coordinates

Canvas real/integer coordinates conversion

Axis orientation

Canvas pixel store pointers

Drawing defaults

Filled Triangle Utility Functions

File Writing Utility Methods

Coordinate System Manipulation (i)

Plane Manipulation Methods

Various helper functions

Raster Data Import And Export.

Constructors & Assignment Operators

Destructor

Canvas Compositing

Canvas resize and crop

Coordinate System Manipulation

Canvas comparison

Canvas Rotation and Reflection.

Canvas Scaling.

Geometric transformations (Reverse Mapping)

Apply Convolution

Compute Convolution Kernels

Iterators

Functional Homogeneous Pixel Transformations (point operators)

Predefined Homogeneous Pixel Transformations (point operators)

Canvas Combination Functions

Statistical Canvas Combination Functions (useful for CCD imaging)

Canvas Clearing Methods

Default Point Methods

Default Color Methods

Point drawing functions

Single pixel transformation functions.

Increment a channel value for a pixel.

Line Drawing Methods

Unfilled Triangle Drawing Methods

Filled Triangle Drawing Methods

Shaded Triangle Drawing Methods

Unfilled Rectangle Drawing Functions

Filled Rectangle Drawing Methods

Unfilled Circle Drawing Methods

Filled Circle Drawing Methods

Piece-Wise Linear Curve Drawing Methods

Hershey Glyph Rendering Utility Functions

ASCII Character Rendering.

File Reading and Writing Methods

Boolean Clip Test Methods

Coordinate Conversions.

Coordinate Pair Conversions.

Pixel Corner Coordinates.

Coordinate Delta Conversions.

Orientation of Real Coordinate Systems

Drawing Mode

Orientation of Integer Coordinate Systems

Accessor Methods

Real Coordinate Accessor Methods

Pixel Value Accessor Methods

Pixel Channel Value Accessor Methods.

Pixel Value Accessor with Interpolation Methods

NC stands for No Checks and No Clipping

S stands for Simple

Canvas Level Colorization.

Canvas Level Statistical Computation.

Detailed Description

Coordinates

Traditional Mathematical Coordinate System

Traditional Computer Graphics Coordinate System

ramCanvas Coordinate Systems

Member Typedef Documentation

◆ pointFltType

◆ pointIntType

◆ pointIntVecType
